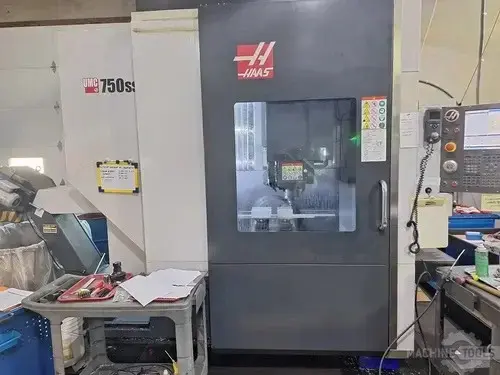

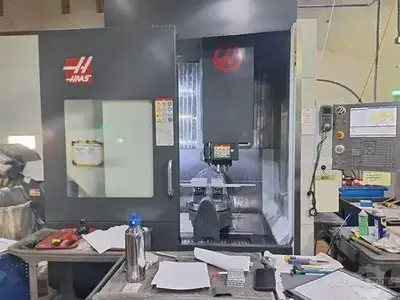

CNC Vertical Machining Center
| X | 30" | 762 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 40 | 40 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 24.8" | 629.92 mm |
Request a Quote
Add to Cart
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Tool Magazine Capacity: 40 ATC

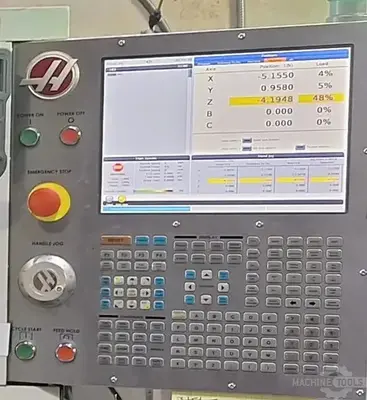

Control: Haas CNC
Chip Removal: Chip Conveyor

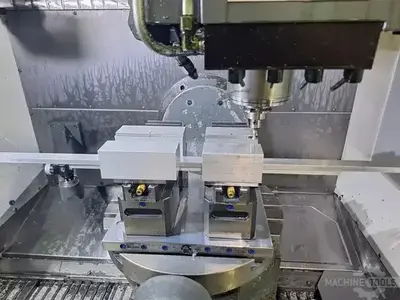

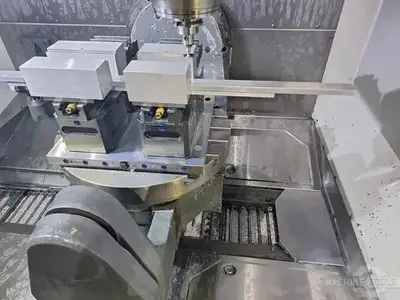

Additional Axis: 5th Axis Trunnion Table
Coolant: Through Spindle Coolant
Machine Dimensions: 162" x 113" x 120"
Machine Weight: 19,200 Lbs
1 GB Program Memory: Compensation Tables
Remote Jog Handle with Color LCD: High Speed Machining
Macros: Programmable Coolant Nozzle
Rigid Tapping: Spindle Orientation
Wireless Intuitive Probing System: TCPC and DWO
Visual Programming System: Media Display
Wireless Networking
