USED IKA WORKS DR 2000/5

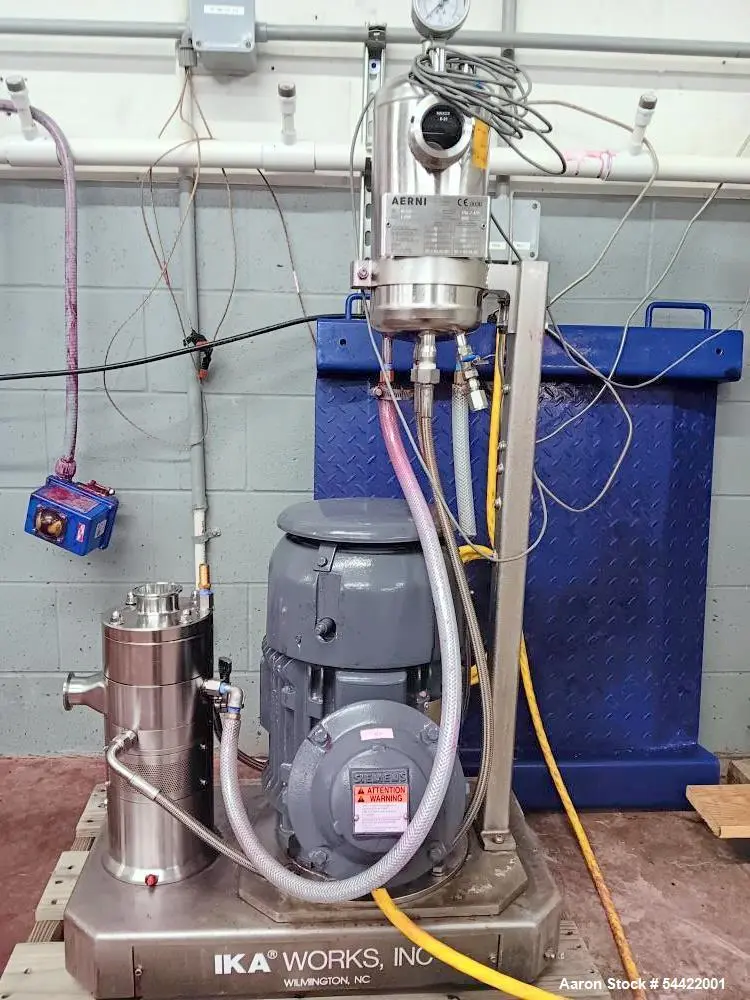

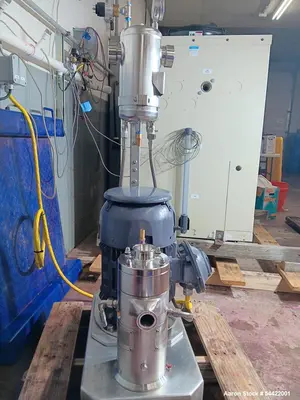

Used IKA Works High Shear Dispersing Machine DISPAX-REACTOR, Type DR2000/5. Three-stage high shear inline disperser. Flow rate maximum 10 GPM, depending on product. Sanitary clamp, 2" inlet, 1.5" outlet, made of 316 stainless steel. Thermal jacket rated 36 psi (2.5 bar) at 120 degrees C. Driven by 10 HP, 230/460 Volt, 3 Phase, 60 Hz, 3600 rpm, Inverter duty, TEFC, Explosion Proof motor. Serial # 3778-20.

Used Equipment Facts About This Machine
Manufacturer Information
Manufacturer: IKA Works
Model: DISPAX-REACTOR DR2000/5
IKA Works is a globally recognized leader in mixing, dispersing, and homogenizing technology, widely used in pharmaceutical, chemical, food, and cosmetic industries for high-shear processing applications.
Description
Used IKA Works DISPAX-REACTOR Type DR2000/5 High Shear Dispersing Machine, designed for continuous inline mixing, emulsifying, and homogenizing processes.
This three-stage high-shear disperser provides efficient particle size reduction and consistent product uniformity, with a nominal flow rate of 75 GPM (based on water at 70°F, zero head). Constructed from 316 stainless steel, this unit is suitable for sanitary and corrosion-resistant applications.

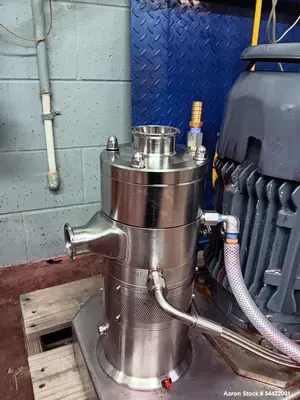

The system features sanitary clamp connections (2” inlet, 1.5” outlet) and includes a thermal jacket rated to 36 PSI (2.5 bar) at 120°C, enabling precise temperature control during processing.

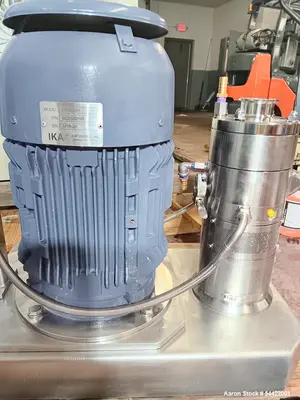

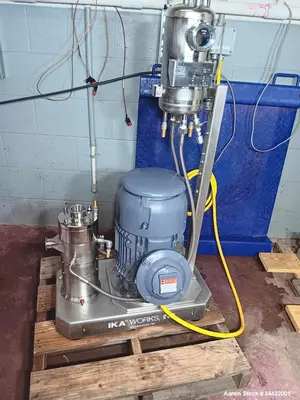

Powered by a 10 HP explosion-proof TEFC motor, inverter duty rated, this unit is ideal for hazardous or demanding production environments requiring reliable high-speed operation at 3600 RPM.

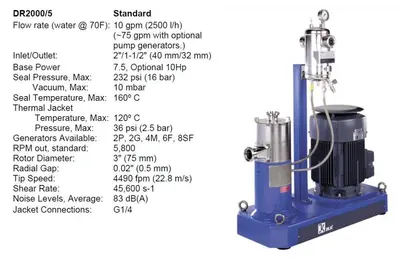

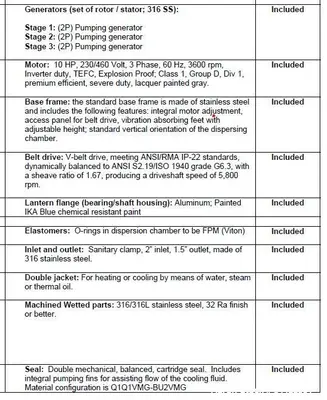

Specifications

Manufacturer: IKA Works

Model: DR2000/5 DISPAX-REACTOR

Machine Type: High shear disperser / inline mixer

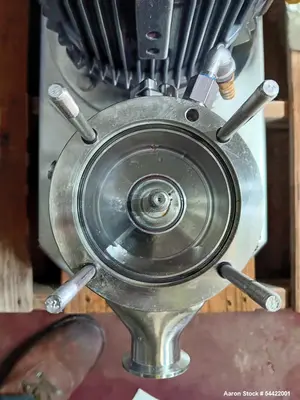

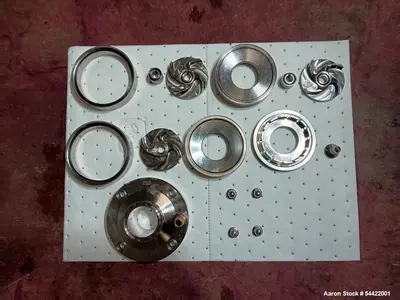

Stages: Three-stage rotor-stator system

Flow Rate: 75 GPM (water, 70°F, zero head)

Material: 316 stainless steel

Connections:

Inlet: 2 inches (sanitary clamp)
Outlet: 1.5 inches (sanitary clamp)

Thermal Jacket Rating:

Pressure: 36 PSI (2.5 bar)
Temperature: 120°C

Motor:

Power: 10 HP
Voltage: 230/460 Volt
Phase: 3 Phase
Frequency: 60 Hz
Speed: 3600 RPM
Type: TEFC, inverter duty, explosion proof

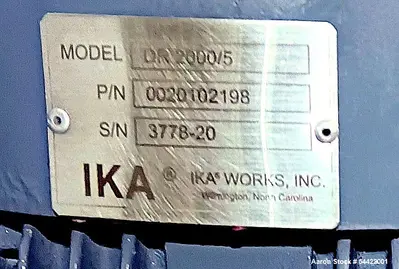

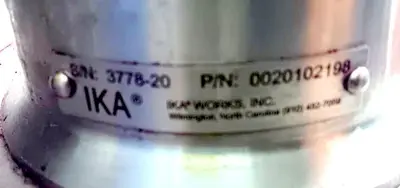

Serial Number: 3778-20

Applications

Emulsifying and homogenizing
High shear mixing
Chemical processing
Pharmaceutical production
Cosmetic manufacturing
Food and beverage processing
Dispersion of powders into liquids
Particle size reduction
Inline blending systems
Industrial fluid processing

What Products Would This Be Used For

Emulsions and suspensions
Creams and lotions
Chemical solutions
Pharmaceutical formulations
Food products (sauces, dressings)
Polymers and resins
Adhesives and coatings
Paints and inks
Detergents and surfactants
Slurries and dispersions
