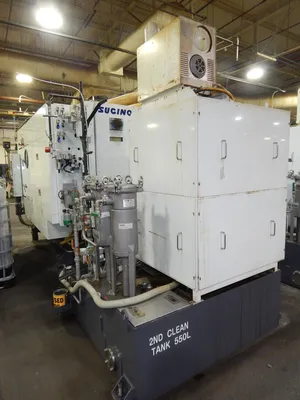

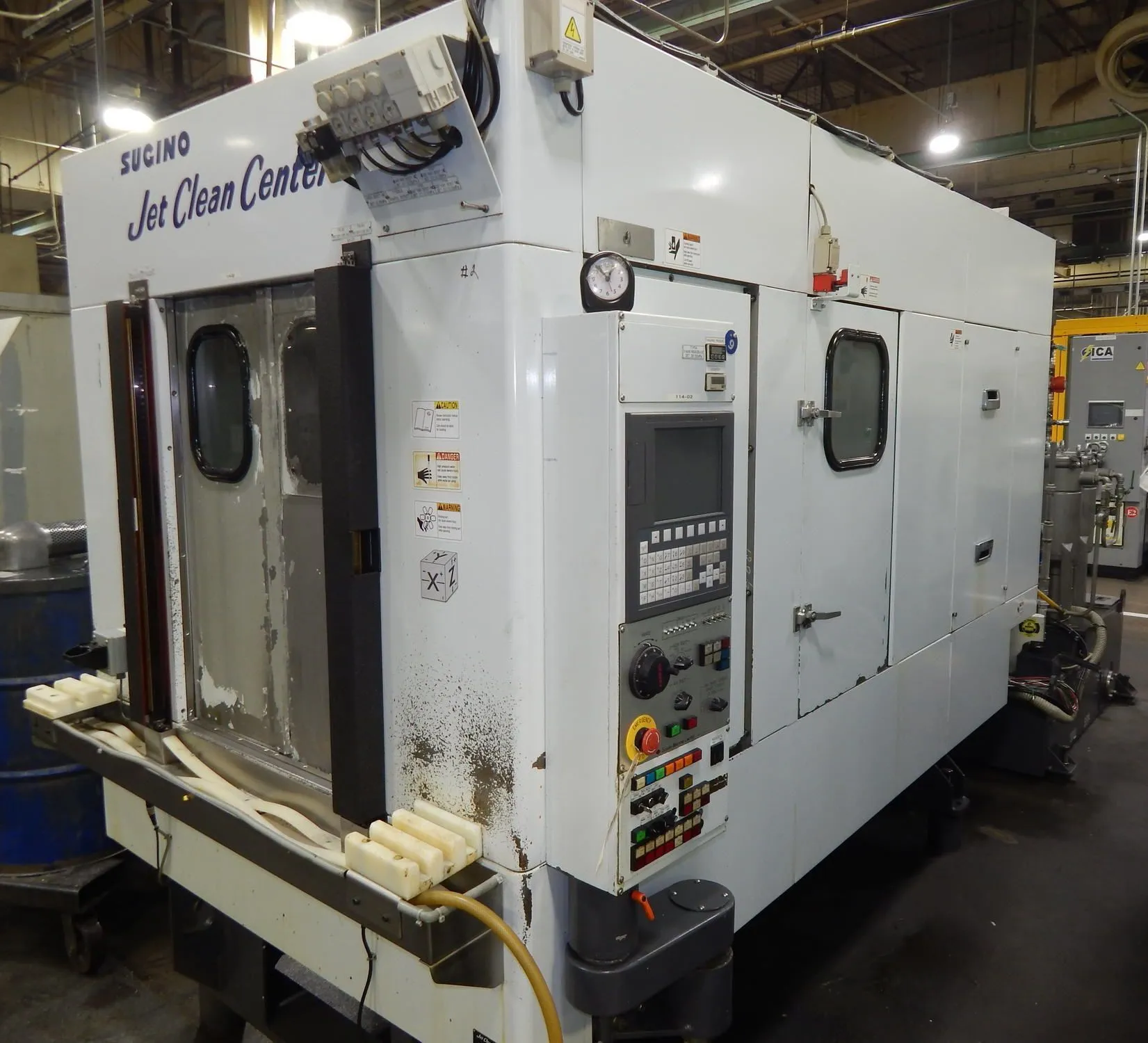

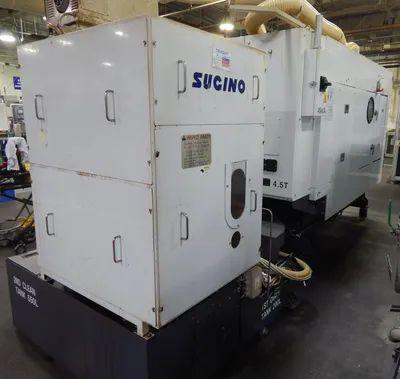

1650mm x 500mm x 500mm SUGINO CNC High Pressure Washer & Deburring, (2) Avail, with 2 position Rotary Turntable with 4th Axis Part Fixture. Work Envelope: 1650mm X, 500mm in Both Y and Z, 6-tool Turret for various Nozzles, One Postion has Rotary Capability, Programmable Pressure up to 36,000 PSI
| Dimensions | 72" x 204" x 105"H | 72" x 204" x 105"H |
| Weight | 12,000 lbs. | 12,000 lbs. |

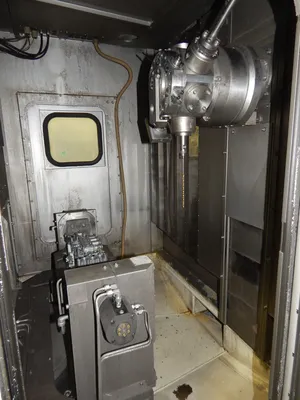

Turntable for Loading and Unloading while Second Table of Fixtured Parts are Being Deburred and/or Cleaned. Each Table has a 4th Axis Rotating Fixture. 6-Position Tool / Wand Turret for multiple nozzle options and Live deburring Tools
35 HP JPSP-10 Pump:
Fully Programmable Pressure to 36,000 PSI and
Programmable Flow of Up to One Gallon/Min. which
Allows Both Deburring and Cleaning of Materials
like Stainless Steel, Titanium and Inconel
Complete Recycling and Filtering of the Wash Fluid System
with Tramp Oil Separator
KURACO Mist Collection System
