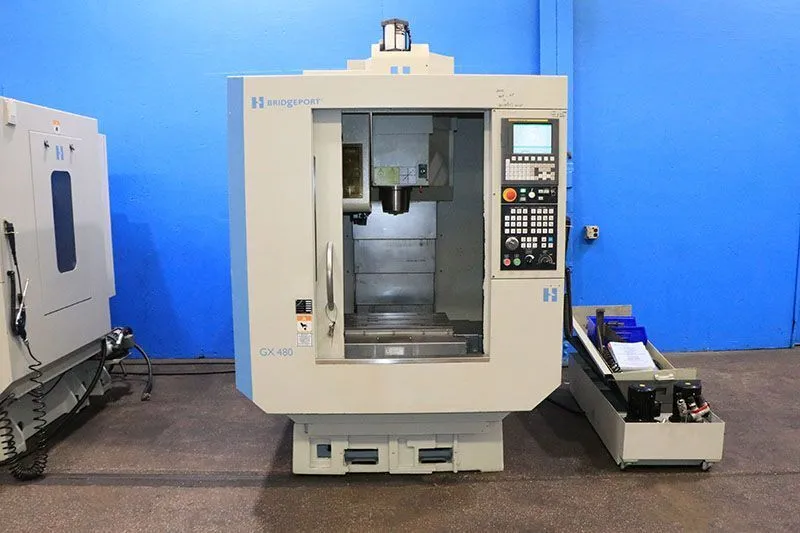

USED 2010 BRIDGEPORT/HARDINGE GX480
Overview
Description
2010 BRIDGEPORT/HARDINGE GX480 vertical machining center. Features include a 10,000 RPM spindle, CAT #40 taper, 20-tool changer, and FANUC OiMD CNC control. Table capacity 661 lbs. Available for inspection under power in NJ.
Specifications
| X | 18.9" | 480.06 mm |
|---|---|---|
| Y | 15.75" | 400.05 mm |
| Z | 16.93" | 430.02 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Dimensions | 62.01" x 83.35" x 82.2"H | 62.01" x 83.35" x 82.2"H |
| Weight | 6204 LBS | 6204 LBS |
X AXIS: ................................... 18.90"
Y AXIS: ................................... 15.75"
Z AXIS: ................................... 16.93"
TABLE SURFACE TO SPINDLE .................. 5.9" - 22.8"
MAXIMUM SPINDLE SPEED ..................... 10,000 RPM
SPINDLE TAPER ............................. CAT #40
RAPID RATE (X, Y, Z AXES) ................. 1,417 IPM
FEEDRATE RANGE (X, Y, Z AXES) ............. .1 - 590 IPM
TABLE WORKING SURFACE ..................... 23.6" X 15.8"
TABLE LOAD: ............................... 661 LBS
TOOL CAPACITY ............................. 20 TOOLS
MAX TOOL DIA (FULL DRUM) .................. 3.15"
MAX TOOL DIA (ADJACENT POCKETS EMPTY) ..... 5.9"
MAX TOOL LENGTH ........................... 7.48"
MAX TOOL WEIGHT ........................... 15.7 LBS
APPROXIMATE MACHINE DIMENSIONS ............ 62.01" x 83.35"
82.2"H
APPROX MACHINE WEIGHT ..................... 6204 LBS
Equipped With
- FANUC MODEL: OiMD CNC CONTROL
- HIGH SPEED MACHINING, LOOK AHEAD, FILE SERVER
- ETHERNET
- 20 POSITION SIDE MOUNTED SWING ARM TOOL CHANGER
- THRU SPINDLE COOLANT
- COOLANT SYSTEM
- 10 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
