Easy, accurate, solid welded steel construction proven design that thousands of customers across the world have come to rely on.

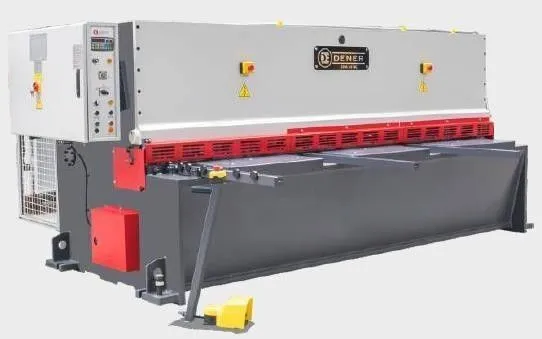

Dener Swing Beam shears are starting from ¼” up to ¾” thickness and lengths of 6 to 20 feet. Special capacity machines are possible too.
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 10.23' | 3.1 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 0.004" | 0.1016 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 18 strokes/min. | 18 strokes/min. |
| Control | CNC (MAPER NC) | CNC (MAPER NC) |
| Dimensions | 152" x 109" x 67" | 152" x 109" x 67" |
| Weight | 26,950 lbs | 26,950 lbs |
Specifications (subject to buyer verification):
Cutting Length: 122.8"
Cutting Thickness: 0.25"
Back Gauge Repeatability: ± 0.004"
Cutting Angle: 1.39 degrees
Number of Hold Downs: 15
Main Motor: 15 HP
Cuts Per Minute: 18
Minimum Cutting Thickness: 0.02”
Oil Tank: 50 Gallons
Throat Depth: 5.9"
Dimensions: 152" x 109" 67"
Weight : 26,950 lbs
Equipped With (subject to buyer verification):
MAPER NC control 10” controller (reads to 2 decimal places in inch mode)
Manual blade gap adjustment
Cutting length adjustment from Control Panel
Sheet sliders balls on the cutting table
1-meter collapsible finger guards
1000 mm squaring arm with scale, T-slot, tilting stop, and sheet roller balls
Cutting line illumination with LED lights
Steel adjustable shadow line
High quality top blades with 2 cutting edge
High quality bottom blades with 4 cutting edges
CSA
