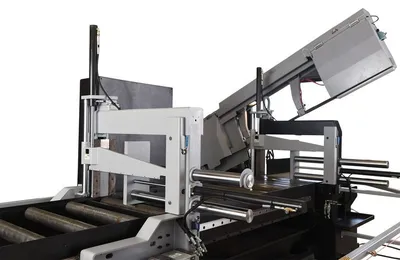

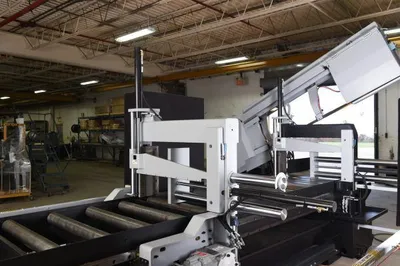

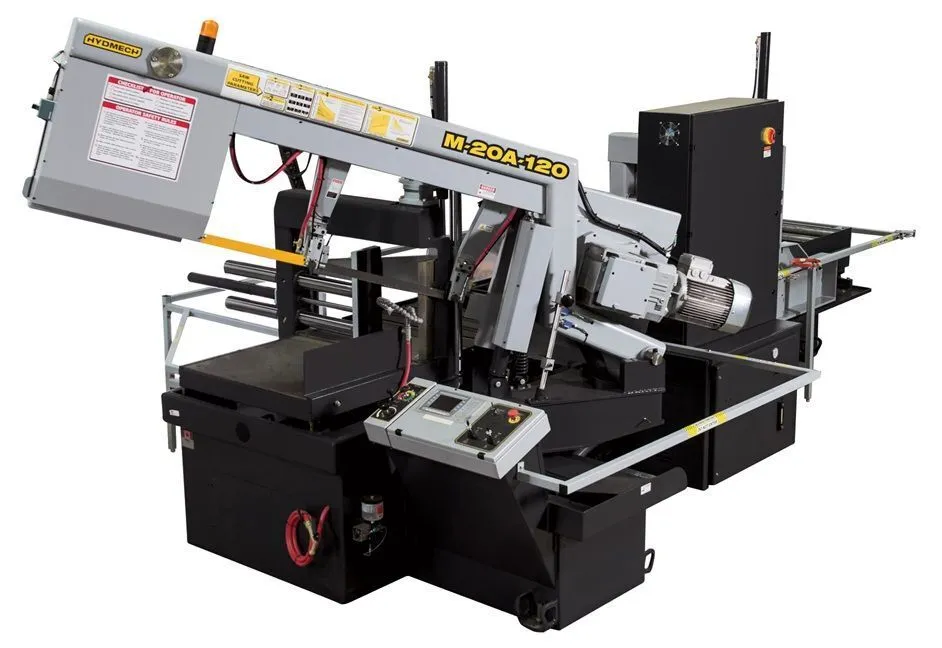

NEW HYD-MECH M-20A-120

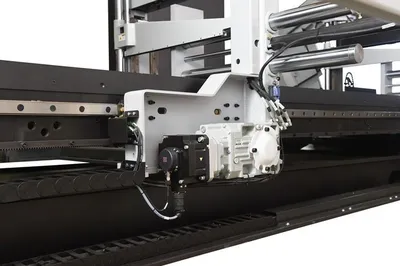

Equipped with a 120″ bar feed, its shuttle vise assembly capable of indexing up to 120” in a single stroke.
Featuring a 20″H x 30″W capacity at 90°, 10 HP motor, and 1 1/2″ blade, the M-20A-120 is a reliable choice for your heavy-duty metal cutting applications.
Simple programming and user-friendly control switches minimize set up time and provides cost-effective production.

Specifications (subject to buyer verification):
Capacity 90°: Rectangular: 20" x 30”, Round: 20”
Capacity 45°: Rectangular: 20" x 19”, Round: 20”
Capacity 30°: Rectangular: 20" x 12”, Round: 14”
Blade Size: 1 1/2” x 20’ 6”
Blade Drive: 10 HP VFD
Blade Speed: 50 - 350 SFM
Table Height: 35"
Workload: 8,000 lbs
Coolant Tank Capacity: 9 Gallons
Machine Voltage: 208*, 240*, 480, 575* v *External transformer supplied at no charge
Machine Weight: 12,700 lbs
Dimensions (W x L x H): 129” x 210” x 110”

Equipped With (subject to buyer verification):
Standard Machine Features:
• Automatic programmable mitering with “go to” angle functionality
• Full capacity hydraulic overhead bundling
• 10’ bar feed
• Automatic multi-indexing up to 120” in a single stroke.

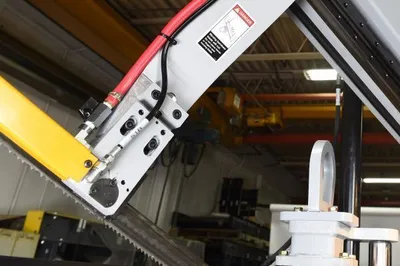

• Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

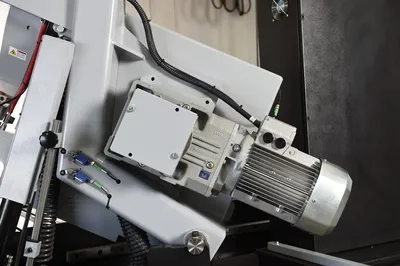

• 10 HP VFD. True direct blade drive – no belts/pulleys
• Full capacity, full stroking hydraulic vises
• Hydraulic positive down feed

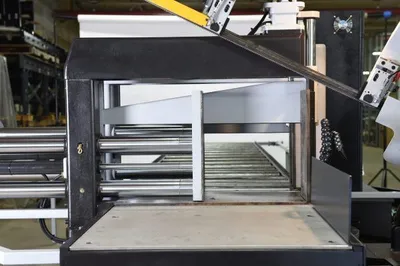

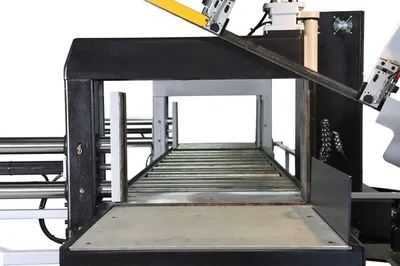

• Blade chamber separates material from cut part

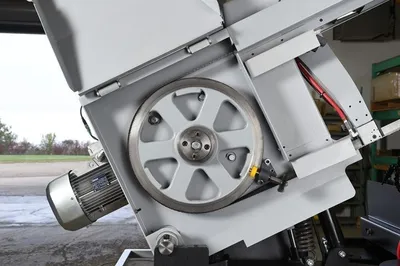

• Cast iron band wheels
• 8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
• Replaceable blade brush
• Robust steel base
• Automatic chip removal auger

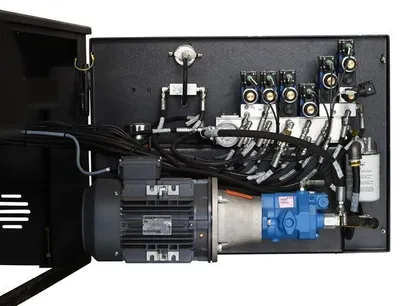

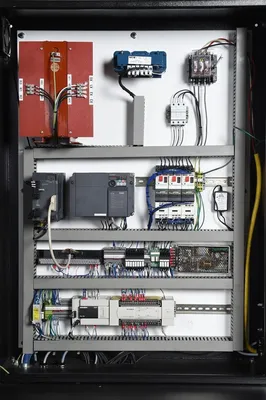

• Easy access electrical panel and hydraulics
• Blade breakage switch
• Hardened replaceable wear plates on material vises
• Hydraulic band tensioning
• Hydraulic carbide guide tensioning

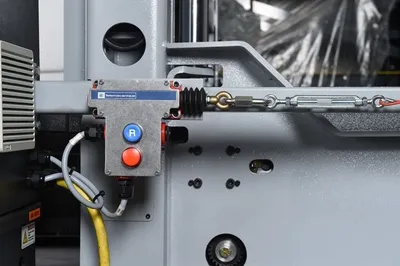

• Safety door interlocks

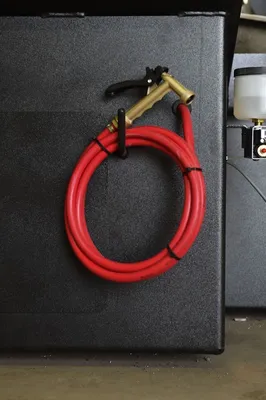

• Flood coolant with wash down hose
• Laser light
• Work light
• Out of stock switch
• Variable vise pressure

Optional Machine Features:
• Blade deviation
• Chip bucket
• Remote console – 10’ cord
• Mist lubrication
• Outboard vise clamping options available upon request
• Vertical rollers
• Idler conveyors
• Powered conveyors
