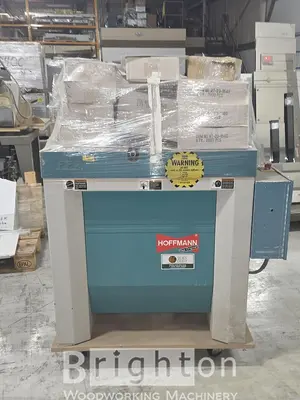

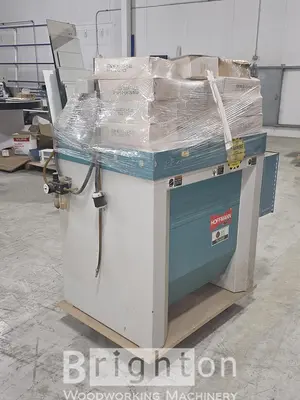

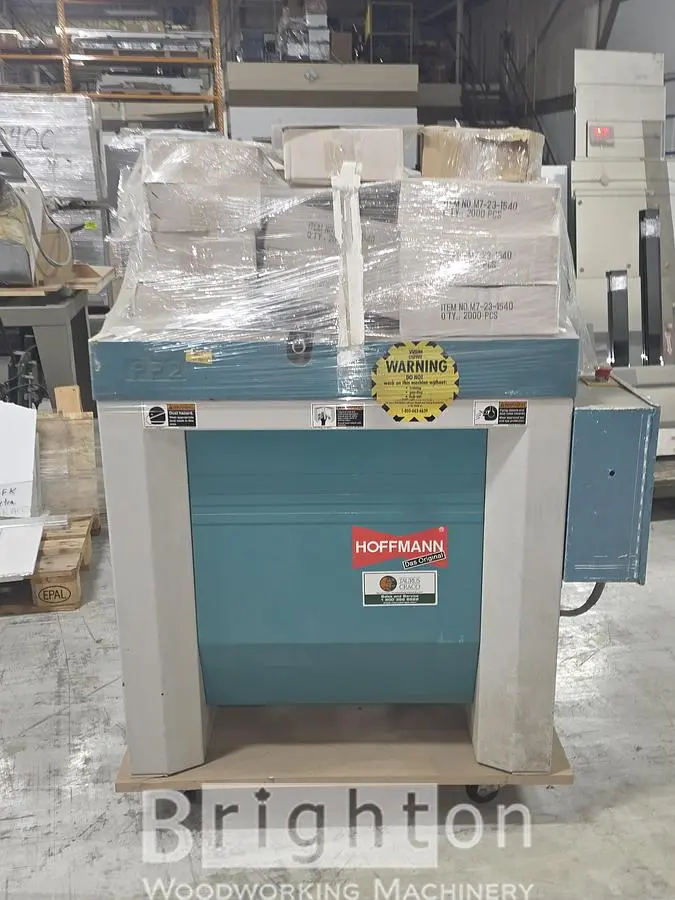

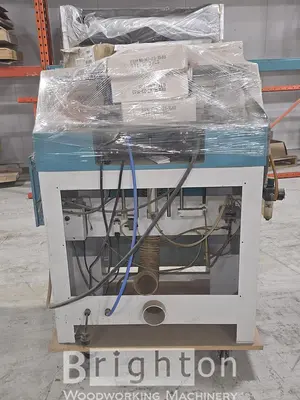

Made in Germany, very heavy-duty, freestanding production unit designed to simultaneously process two workpieces for the Hoffmann Dovetail Joining System.
Precision Engineering: Built with a heavy-duty cast aluminum table and precision linear bearings for vibration-free, professional-grade routing.
High Efficiency: The dual-motor design processes two parts in a single cycle, quadrupling the speed of manual joining methods and ensuring perfectly aligned miters every time.
Ease of Use: Features a simple pneumatic foot pedal operation and an automatic ON/OFF motor trigger, allowing operators to focus on material flow rather than machine settings.
Versatility: Ideal for a wide range of applications, including picture frames, mirror frames, cabinet doors, and mitered joints for furniture.
Dust-Free Operation: Integrated 4" dust port connects easily to central systems, keeping your shop clean and protecting the operator.
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click for leasing information
Click for shipping information.
Click for electrical information.
Comes with 13 boxes of Dovetail joints!
Motors: Two 1,000-watt router motors with double front bearings.
Motor Speed: 33,000 – 35,000 RPM (at idle).
Operation: Pneumatic dual-cylinder design with foot pedal control.
Capacity: Roughly 16 routing strokes per minute (approx. 4 rectangular frames).
Max Routing Height: 4" (101 mm).
Max Material Thickness: 5 ¾" (146 mm).
Key Sizes: Compatible with W-1, W-2, W-3, and W-4 dovetail keys.
Electrical: 120 Volt, 60 Hz, 17 Amps (Single Phase).
Air Requirement: 90 psi (approx. 0.1 cubic foot per cycle).
Dust Collection: 4" diameter port (approx. 500 cfm required).
Weight: Approximately 348 lbs (158 kg).
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
Quality: Very Good
Electrics: 115V / 1Ph / 60 Hz
