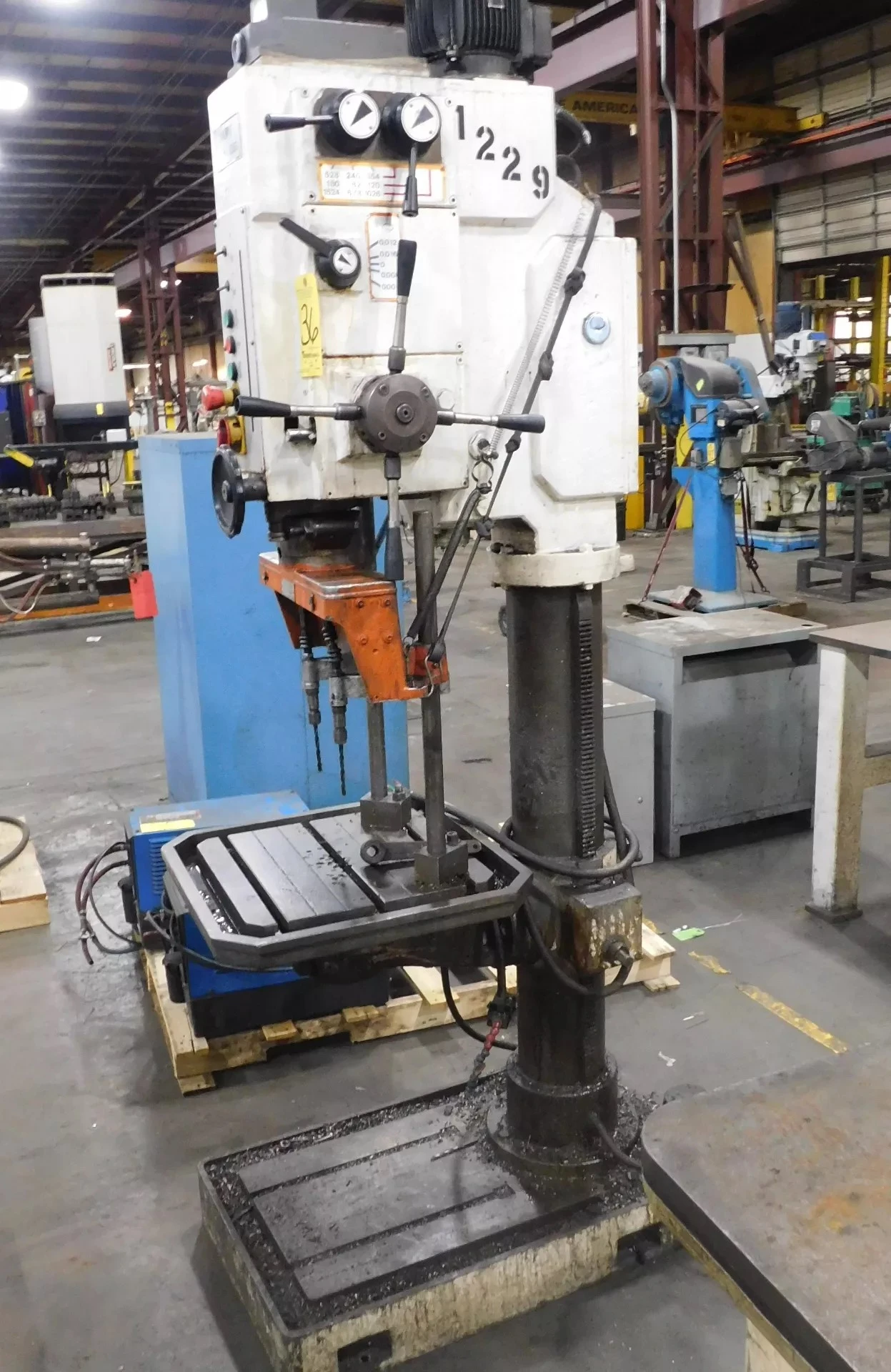

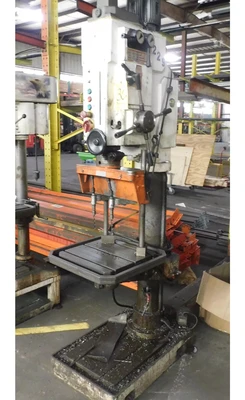

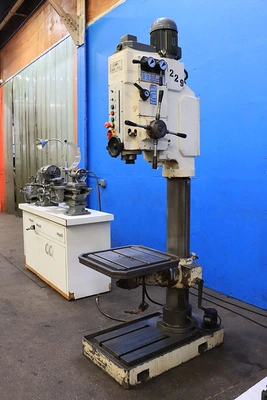

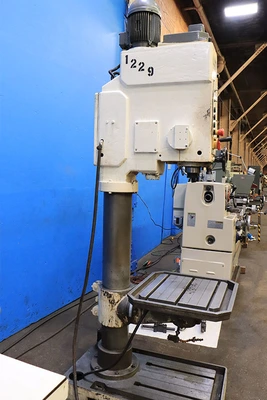

USED 2000 Wilton 2350

28" Swing 3HP Spindle Wilton 2350 DRILL PRESS, Geared Head, Power Downfeed, T-Slotted Tbl & Base

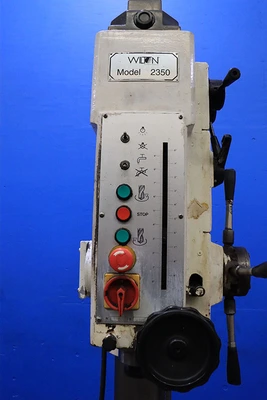

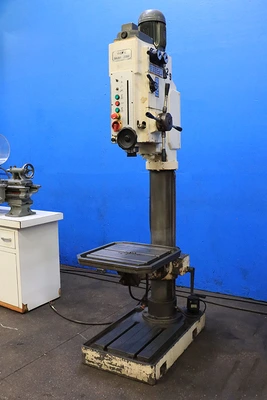

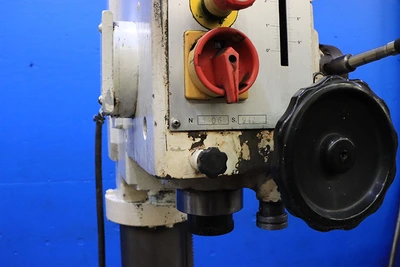

WILTON GEARED HEAD DRILL PRESS

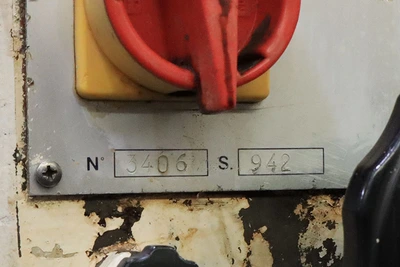

MODEL: 2350, S/N: 3406/942, NEW: 2000'S

SPECIFICATIONS:

DRILLING CAPACITY - MILD STEEL ........... 1-7/8"

TAPPING CAPACITY - MILD STEEL ............ 1-9/16"

DRILL SWING .............................. 28"

CENTER OF SPINDLE TO FRONT OF COLUMN ..... 14"

SPINDLE TAPER ............................ #4MT

SPINDLE DIAMETER ......................... 3.228"

SPINDLE TRAVEL ........................... 9"

COLUMN DIAMETER .......................... 6.88"

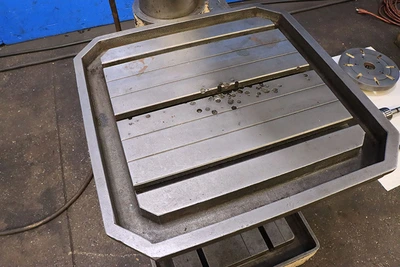

TABLE SIZE (T-SLOTTED) ................... 19" X 22"

SPINDLE TO TABLE ......................... 2.67" MIN - 30.5" MAX

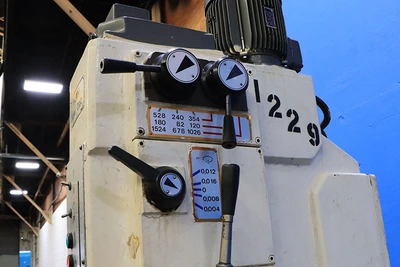

SPEEDS (9) ............................... 82 - 1,524 RPM

SPINDLE FEEDS (3) ............ 0.004, .008, .012 & .016 IPR

MOTOR .................................... 3 HP

APPROXIMATE OVERALL DIMENSIONS ........... 40" X 30" X 95" H

APPROXIMATE WEIGHT ....................... 1,850 LBS.

EQUIPPED WITH:

POWER DOWN FEED

FORWARD AND REVERSE SWITCHES

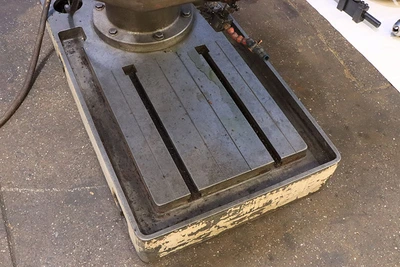

T-SLOTTED TABLE & BASE

RACK TO RAISE AND LOWER TABLE

COOLANT SYSTEM

3 HORSE POWER DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Andy at 973-497-7600
