USED 2003 Acer EVS-3VS Inverter Drive, Acu-Rite DRO,Servo Pwr Fd

42" Table 3HP Spindle Acer EVS-3VS Inverter Drive, Acu-Rite DRO,Servo Pwr Fd VERTICAL MILL, Electronic Vari-Speed, Acu-Rite, DRO, R-8,Servo Fd

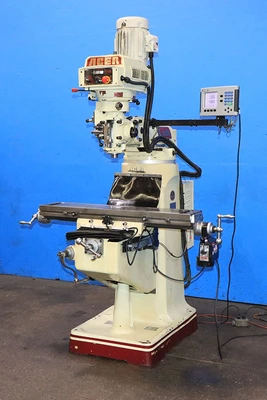

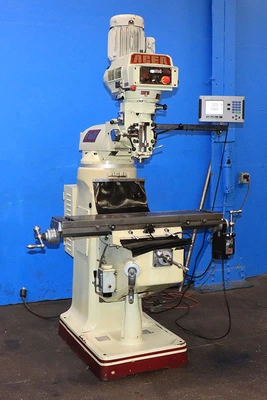

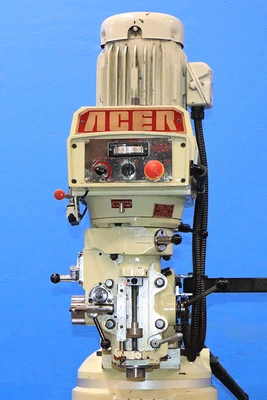

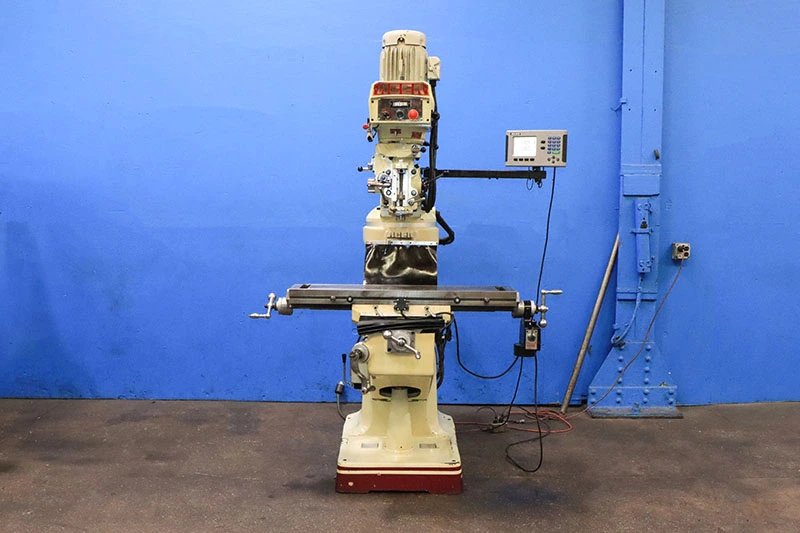

ACER VERTICAL MILLING MACHINE

MODEL: EVS-3VS, S/N: N3100297S9,   MFG: 2003

SPECIFICATIONS:

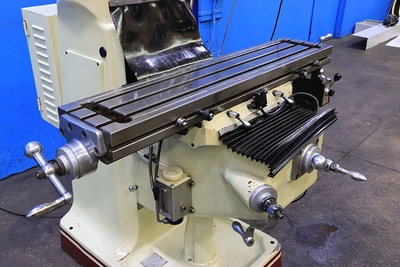

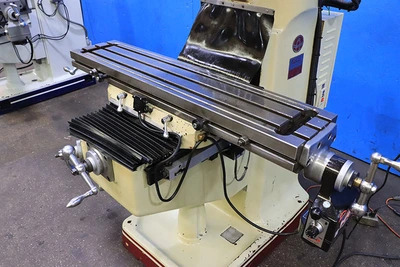

TABLE WORKING SURFACE ......................... 9" X 42"

NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")

RANGE: LONGITUDINAL, MANUAL (X) ............... 28"

             CROSS (Y) ........................ 12"

             VERTICAL, KNEE ................... 16"

             QUILL (Z) ........................ 5"

RAM TRAVEL .................................... 20"

HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES

HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES

TURRET ROTATION ............................... 360 DEGREES

(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.

QUILL DIAMETER ................................ 3-3/8"

INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM

SPINDLE TAPER ................................. R-8

MAXIMUM COLLET CAPACITY ....................... 3/4"

APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H

APPROXIMATE WEIGHT ............................ 2,400 LBS.

EQUIPPED WITH:

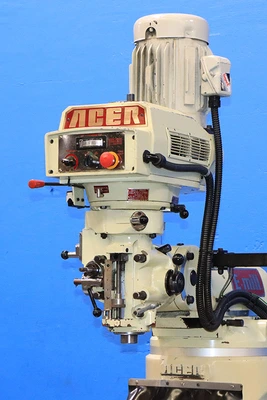

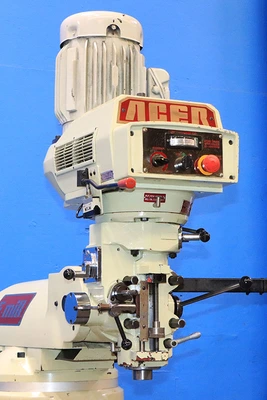

AC FREQUENCY INVERTER SPINDLE DRIVE

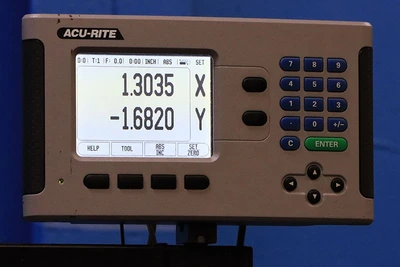

ACU-RITE TWO-AXIS DIGITAL READOUT

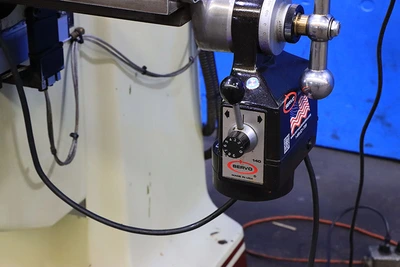

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL

HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES

MEEHANITE CASTING

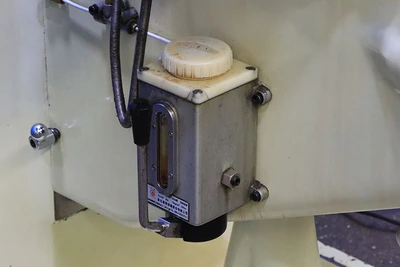

ONE-SHOT LUBRICATION SYSTEM

3 HORSE POWER SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
