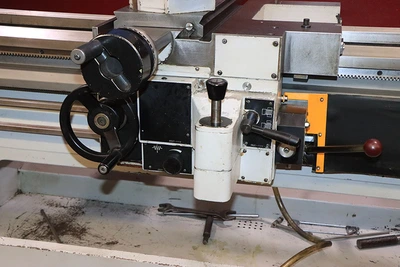

USED 1996 Harrison M550 GH, 3.5" Hole, Steady&Follow, 3&4Jaw, 12.5HP

22" Swing 80" Centers Harrison M550 GH, 3.5" Hole, Steady&Follow, 3&4Jaw, 12.5HP ENGINE LATHE, Inch/Metric, Gap, 3&4 Jaw, Steady, Follow, 12.5 HP

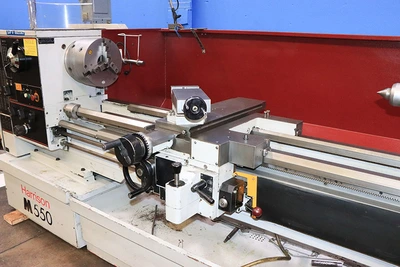

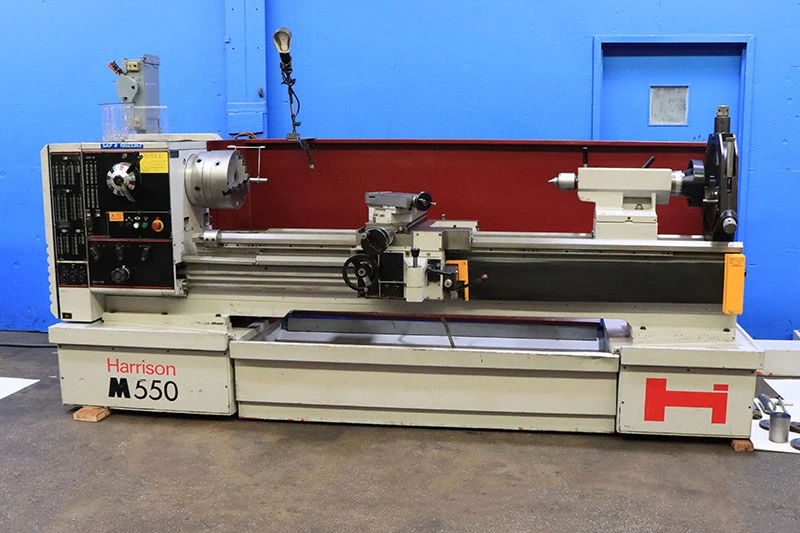

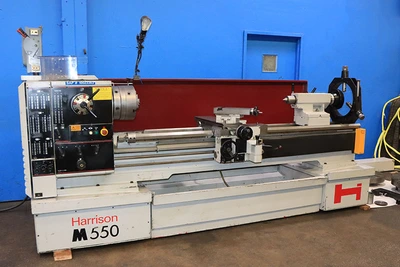

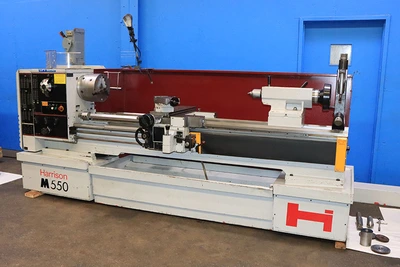

22"/32" x 80" HARRISON GAP BED ENGINE LATHE

MODEL: M550 GH,  S/N: 5M0064,  MFG: 1996

SPECIFICATIONS:

SWING OVER BED .................... 21.8"

SWING IN REMOVEABLE GAP ........... 32.7"

SWING OVER CROSS SLIDE ............ 14.5"

DISTANCE BETWEEN CENTERS .......... 80"

WIDTH OF BED ...................... 15.7"

HOLE THRU SPINDLE ................. 3.5"

SPINDLE NOSE CAMLOCK .............. D1-11"

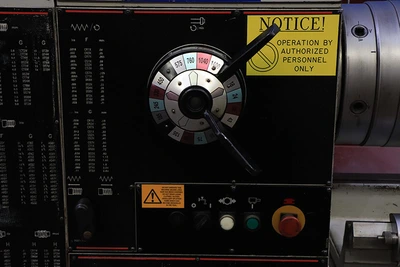

SPINDLE SPEED RANGE (16) .......... 18 - 1400 RPM

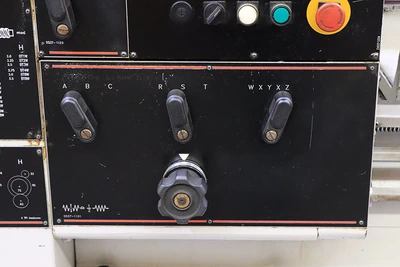

THREADING RANGE ENGLISH (51) ...... 2 - 84 TPI

THREADING RANGE METRIC (54) ....... 0.2 - 14 mm

LONGITUDINAL FEED RANGE ........... .0016" - .110" IPR

CROSS FEEDS HALF THE VALUES OF LONGITUDINAL

TAILSTOCK SPINDLE TRAVEL .......... 5.7"

TAILSTOCK SPINDLE TAPER ........... #6 MT

APPROXIMATE WEIGHT ................ 10,500 LBS

APPROXIMATE DIMENSIONS ............ 140"L x 57"W x 60"H

EQUIPPED WITH:

INCH/METRIC THREADING CAPABILITY

REMOVEABLE GAP BED

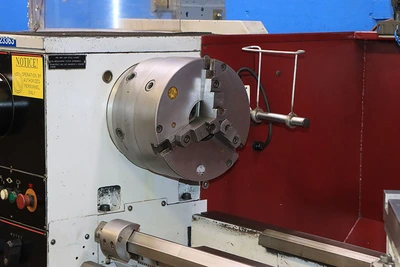

12" 3-JAW PRATT BURNERD CHUCK

15-1/2" 4-JAW CHUCK

FACEPLATE

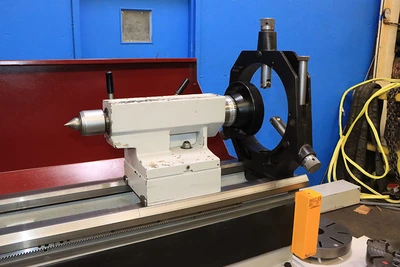

ROLLER TYPE STEADY REST

FOLLOW REST

HEADSTOCK CENTER SLEEVE

LIVE & DEAD CENTER FOR TAILSTOCK

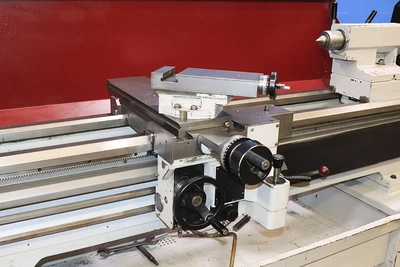

MICROMETER CARRIAGE STOP

THREAD DIAL INDICATOR

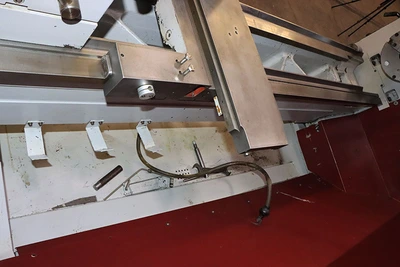

COOLANT SYSTEM WITH REMOVEABLE CHIP PAN

12-1/2 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
