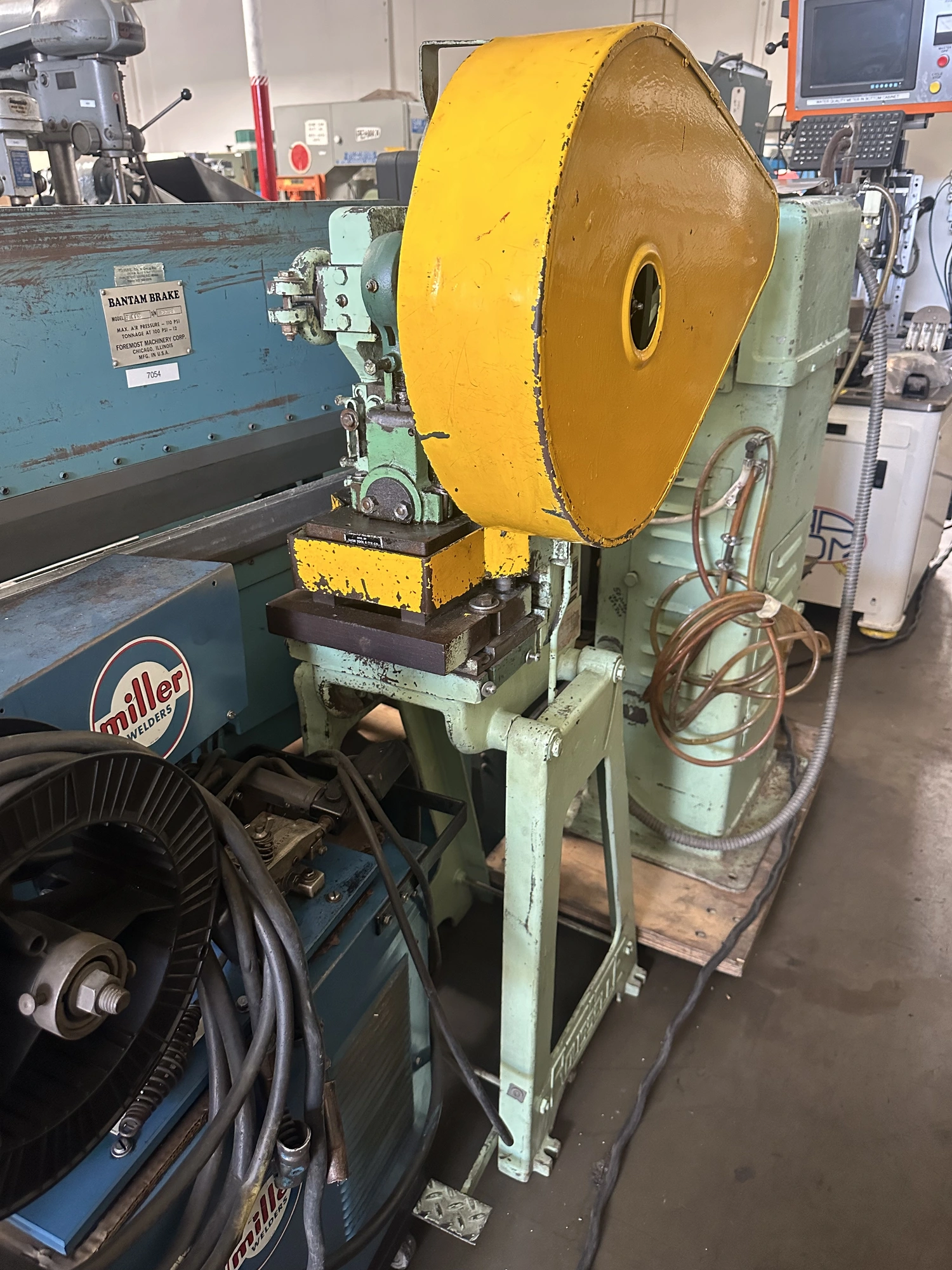

Rousselle OG OBI Punch Press, 5 Ton. Used condition with 7" x 10-1/2" bed area, 5" round capacity, 12" throat depth. Includes 1/3 HP motor at 1750 RPM. Optimize your operations with this reliable single crank machine.
| Tonnage | 5 T | 4.536 t |
| Stroke | 1.25" | 31.75 mm |
| Bed W | 10.5" | 266.7 mm |
| Bed L | 7" | 177.8 mm |
| SPM | 250 strokes/min. | 250 strokes/min. |
| Type (BG, Double Action, FW) | Flywheel | Flywheel |
| Crank (Single/Double) | Single | Single |
Rousselle OG OBI Punch Press - 5 Ton #7204 #1
SPECIFICATIONS:
Capacity: 5 Ton
Area of bed: 7" X 10-1/2"
Rectangle capacity: 4" X 6"
Round capacity: 5" Dia.
Depth of throat: 12"
Width of ram: 4-1/2"
Stroke down adj: 6-1/2"
Bolster thickness: 7/8"
Ram adjustment: 1"
Shaft diameter: 1-1/16"
Special stroke: 1-3/4" TO 2"
Stroke: 1-1/4"
Hole in ram: 1" TO 1-1/4"
Stroke pre min: 250 SPM
Flywheel diameter: 15-1/2"
Motor: 1/3 HP, 1750 RPM
