NEW NAKS V-48

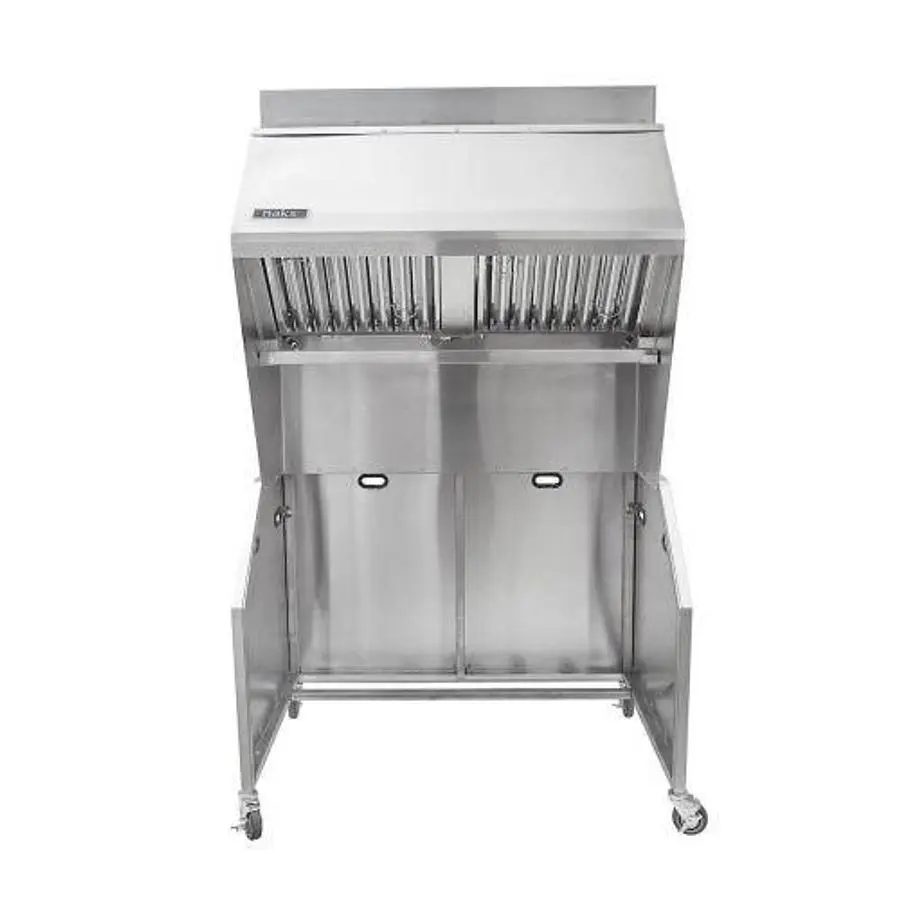

HoodMart Portable Ventless Hood System 48 Inches - Fire Suppression Included Hoods are Guaranteed To Pass ALL City & State Codes.

Requires No roof fans, No ductwork, & No hood to hang. Quality Portable Ventless Hood System - Fire Suppression Included Hoods You Can Trust. Quick Delivery... NSF, UL, NFPA & ETL APPROVED
48 Inch Ventless Fire Suppression Included Commercial Hoods are self-contained, compact portable units that provide you with another way to vent grease laden vapors. This type of hood eliminates the need for any expensive roof modifications because they don’t require roof fans or ductwork.

Commercial Ventless Hoods Specifications:

Height(Overall): 87-3/16"
Depth (Overall): 34-3/16"
Accommodates cooking equipment up 48-11/16” wide to 30" deep
Width (Inside): 48-11/16”
Width (Outside): 52-5/8”

208 /240 Volt AC, Single or Three Phase
Maximum of 50 amps overall (ventless unit 5 amps max)
Hood requires 8 amps - 220 - may require a raceway contactor - please consult us

with items you need to vent

18 Gauge Stainless Steel
Exhaust CFM: 1500
Clearance - ventless clearance requirement 18" from top of unit (not including damper)
12" clearance required above damper

ELECTRICAL REQUIREMENTS

 NOTE: 4.5 AMPS FOR HOOD
VH-48 - 208-240 60hz 1-3phase 75 amps
NOTE: 6 AMPS FOR HOOD

UL - cUL - ETL- cETL - NSF - NFPA APPROVED
