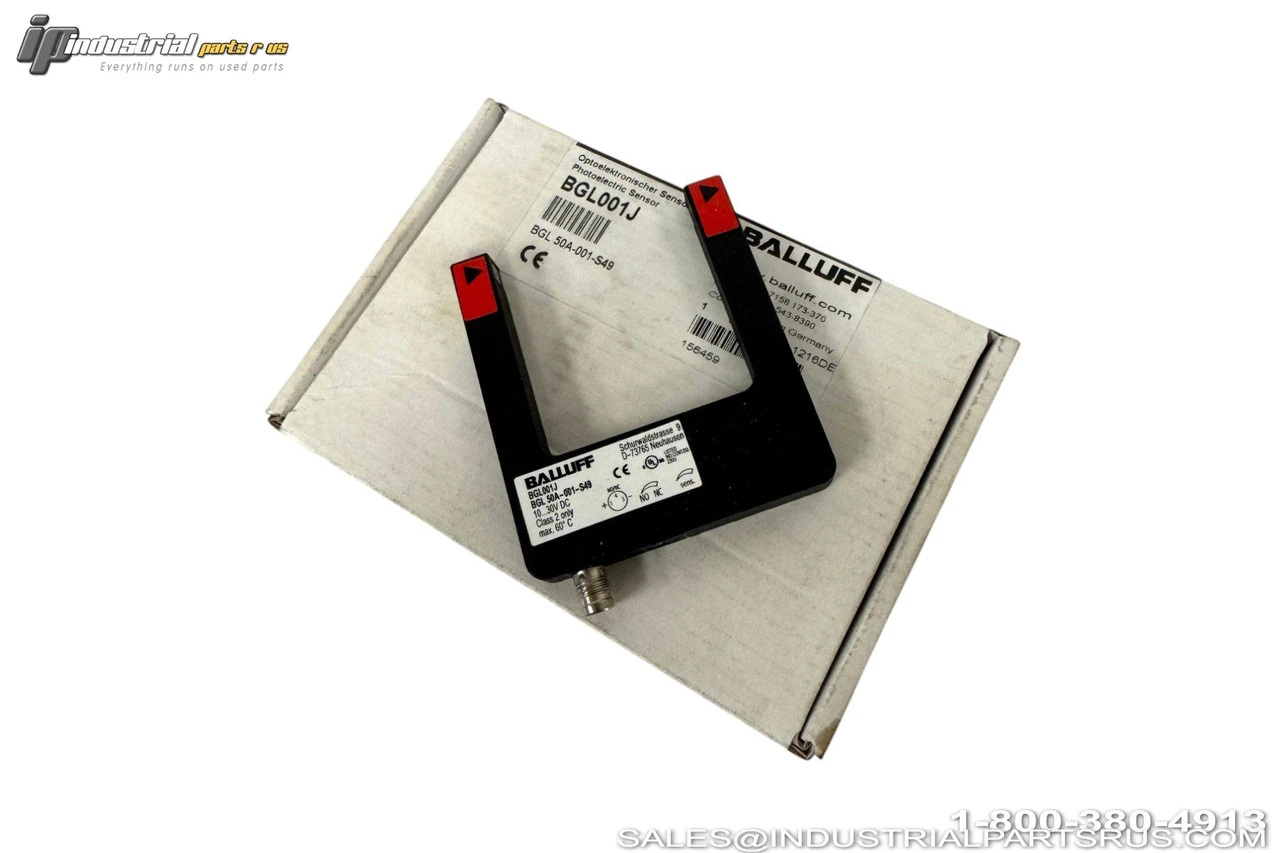

NEW BALLUFF BGL001J

The BALLUFF BGL001J (BGL 50A-001-S49) is a precision photoelectric fork sensor designed for industrial automation applications. This through-beam sensor utilizes a red LED light source with divergent beam characteristics to detect objects passing through its 50mm fork opening. The sensor features PNP switching output with both normally open and normally closed contacts, making it versatile for various control applications.
Specification
Value
Brand
BALLUFF
Model/Part Number
BGL001J
Full Model
BGL 50A-001-S49
Series
A
Fork Opening
50mm
Dimensions
10 x 70 x 88 mm
Operating Voltage
10-30 VDC
Output Type
PNP NO/NC
Light Type
LED Red light
Light Spot Size
Ø 1.5 mm
Beam Characteristic
Divergent
Connection Type
M8x1-Male, 3-pin
Housing Material
Zinc, Die casting, Painted
Sensing Surface Material
Glass
Principle of Operation
Fork sensor
Optical Operation
Through-beam sensor
We warranty all items for 30 days from date of purchase.

SKU: AI1039
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP NO/NC
Sensor Type: Photoelectric
Manufacturer: Balluff
Part Number: BGL001J
Shelf: K-51
Model: BGL001J
MPN: BGL001J
Type: Fork Sensor
