USED BK Mikro BKM92 Premium Kombi
Overview
Description

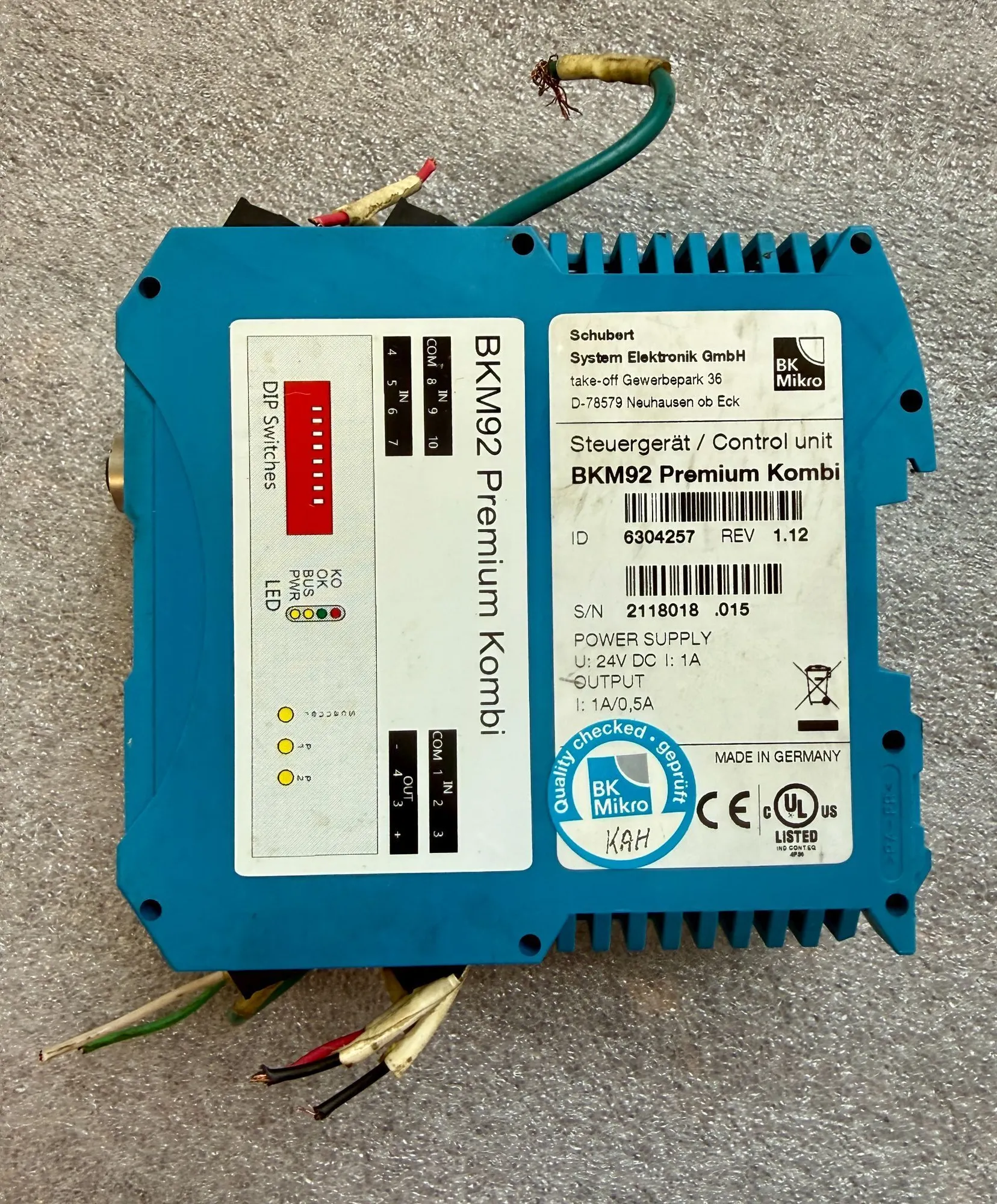

BK MIKRO BKM92 PREMIUM KOMBI INDUSTRIAL TOOL/WORKPIECE MONITORING CONTROL UNIT, 24 VDC I/O Interface.
Specifications
| Type | Tool and Object Monitoring System Control Unit | Tool and Object Monitoring System Control Unit |
|---|---|---|
| Housing | Insulation material, protection class II, built-in type | Insulation material, protection class II, built-in type |
| Protection Class | IP 20 | IP 20 |
| Mounting of Housing | Profile rail 35 mm acc. DIN EN 50022 | Profile rail 35 mm acc. DIN EN 50022 |
| Supply Voltage | 24 VDC ±20% PELV, Imax = 1 A | 24 V |
| Power Consumption | 24 VA Max | 24 V·A |
| Control Voltage | 24 VDC ±20% PELV | 24 V |
| Connections | Pluggable screw terminals | 8-pin Circular connector | Mini-USB | Pluggable screw terminals | 8-pin Circular connector | Mini-USB |
| Dimensions | 7" x 7" x 5" | 7" x 7" x 5" |
| Weight | 3 lbs | 3 lbs |
Inputs:
Galvanically isolated | Input current approx. 5 mA | Pulse duration 30 ms min
Switch Outputs:
2 x electronic relay 24 VDC, 1A max, unlimited switching cycles | 2 x high side switch, Imax = 0.5 A
Equipped With
- Mini-USB for PC connection
- Digital control inputs (positive or negative logic):
3 x start and teach signal as well as configurable channel
10 x to select/activate up to 512 different positions
- Digital outputs:
2 x relay (as N/C or N/O contact) with "OK" and "KO" signal
2 x for free configuration (active switching function for 24 V signal)
- 3 rotary switches:
Selection of scanner and feeding in the scanning angles (adjustable in 24°-steps from 0° to 360°)
- 8 toggle switches:
Selection monitoring type (object or free-space monitoring)
Selection rotational direction of wand (right and/or left)
Definition of relay outputs (N/C or N/O)
Setting of scanning intensity (2 steps)
Selection of tolerance range (±0.1° / ±1.0° / ±3.0° / ±10.0°)
- Pluggable supply voltage and scanner connection
- 2 x 4 LEDs for current status display
- Teach button
