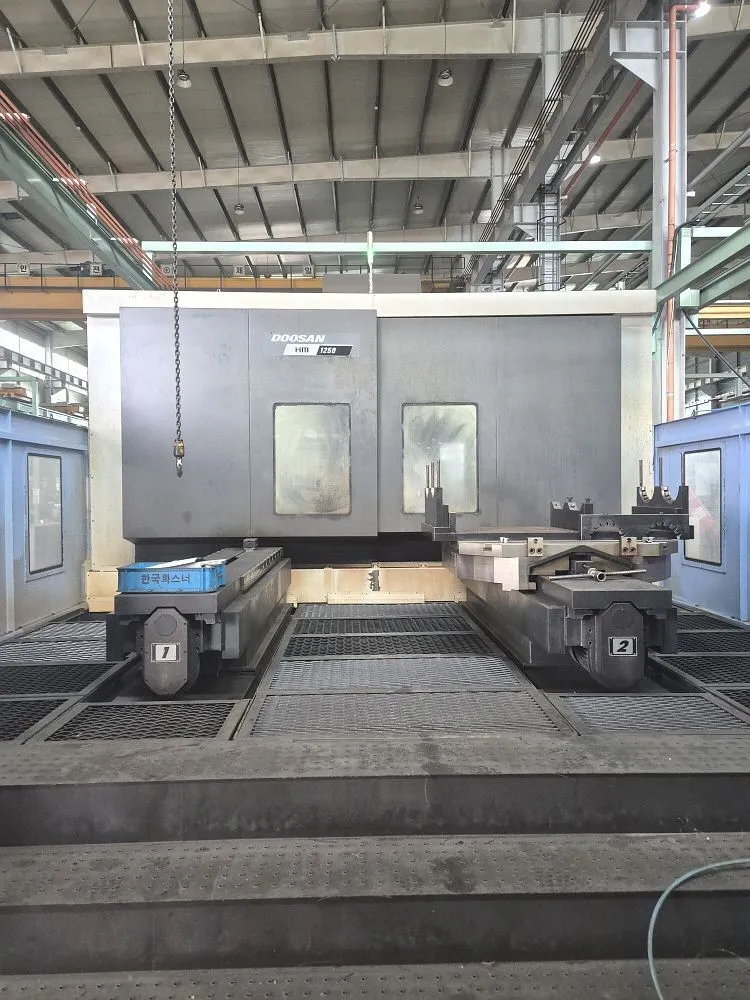

USED 2019 DOOSAN HM1250

For sale: Doosan HM 1250 Horizontal Machining Center, 2019 model. Equipped with FANUC 31i-B CNC, coolant through spindle, chip conveyor, and more. X/Y/Z travels: 82"/60"/60", tool changer for 60 tools. Only 4,613 cutting hours.

PALLET SIZE (2 PALLETS)................ 49.2" X 49.2"
X-AXIS TRAVEL.......................... 82.69"
Y-AXIS TRAVEL.......................... 59"
Z-AXIS TRAVEL.......................... 59"
DISTANCE FROM SPINDLE CENTER TO PALLET TOP.. 1.9" TO 61"
DISTANCE FROM SPINDLE NOSE TO TABLE CENTER.. 11.2" TO 70.2"
PALLET LOAD CAPACITY................... 13,320 LBS
PALLET INDEXING........................ 1 DEGREE
MAXIMUM WORKPIECE SIZE................. 78.74" X 67.9"
MAXIMUM SPINDLE SPEED.................. 6,000 RPM
SPINDLE TAPER.......................... 50
SPINDLE MOTOR.......................... 50 HP
RAPID TRAVERSE RATE.................... 945 IPM
CUTTING FEED RATE...................... 472 IPM
TOOL CHANGER CAPACITY.................. 60 TOOLS
MAX TOOL DIAMETER (CONTINUOUS/ADJACENT PORTS ARE EMPTY).. 5.1"/11.8"
MAXIMUM TOOL LENGTH.................... 25.5"
MAXIMUM TOOL WEIGHT.................... 55 LBS
MACHINE SIZE: 402" L, 229" W, 160" TALL
MACHINE WEIGHT: 68,200 LBS

EQUIPPED WITH:
* FANUC 31i-B CNC CONTROL
* COOLANT THROUGH SPINDLE
* FULL ENCLOSURE
* CHIP CONVEYOR
* BOX WAYS
ONLY 4,613 CUTTING HOURS
