Used

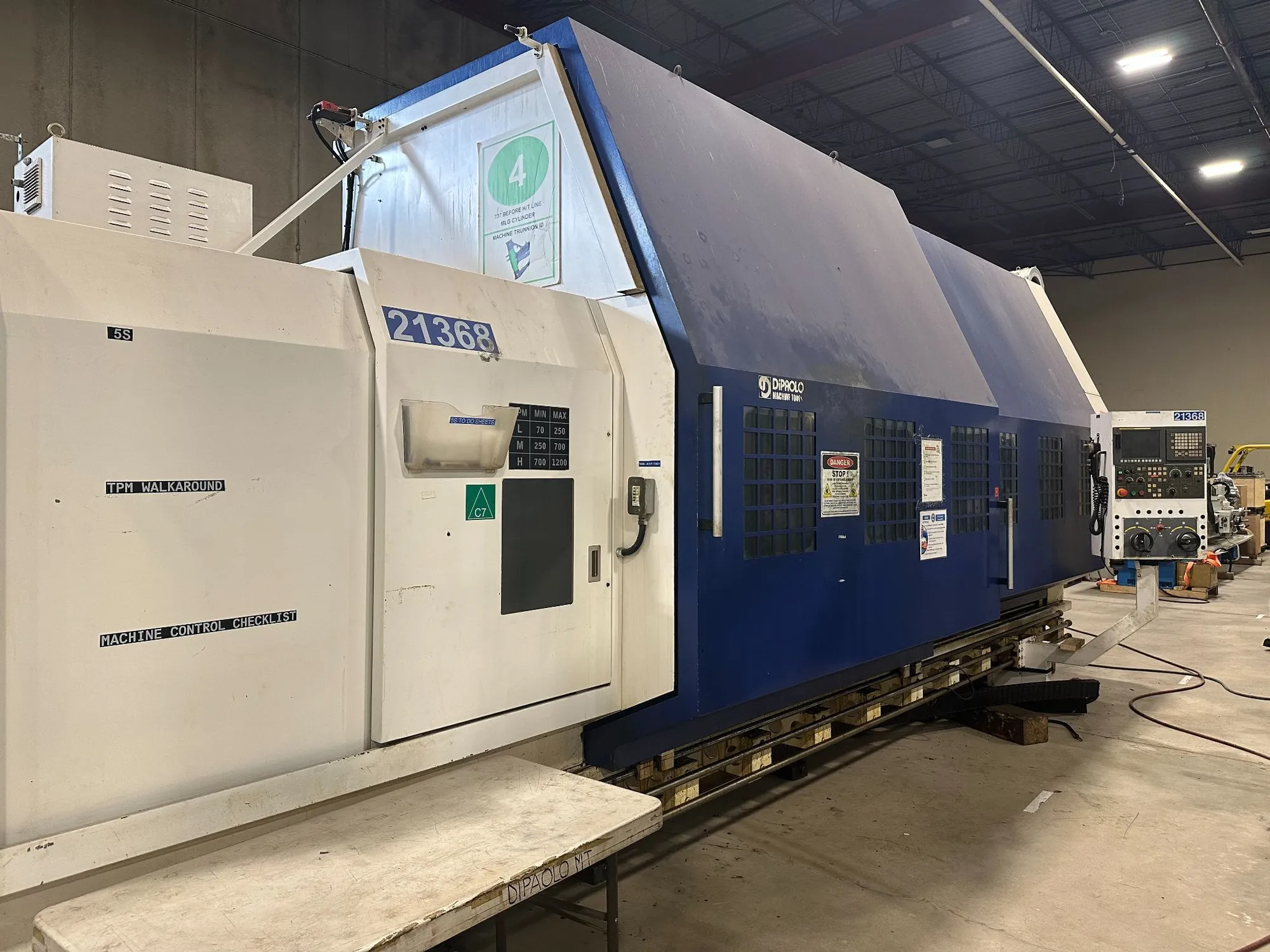

USED 2014 ANNN YANG DY-760C

Ontario, Canada
25Listings|8Followers
Overview
CNC Lathes

Out of Aerospace facility

Specs
Swing
29.9"
759.46 mm
Machining Length
157"
3,987.8 mm
# Axis
2
2
Chuck Size
19.5"
495.3 mm
Bar Capacity
5.12"
130.05 mm
Power
30 hp
22.4 kW
Max RPM
1,200 RPM
1,200 RPM
Turning Dia
16"
406.4 mm
Tailstock
Yes
Yes
Live Tooling
No
No
Sub Spindle
No
No
Control
CNC (Fanuc 0iTD control)
CNC (Fanuc 0iTD control)
Dimensions
348"x120"x132"
348"x120"x132"
Weight
26,000lbs
26,000lbs
Equipped With

4-way programmable toolpost
D1-11 Spindle mount
22" bed width
Steady rest, 6.7" - 18.5" capacities
32" swing over bedways
Manual controls for X & Z axes
MPG handwheel
Hydro approved 220v/3/60 electrics
"LOSMA" air filtration system
Full length rear chip conveyor
Fully enclosed machine
