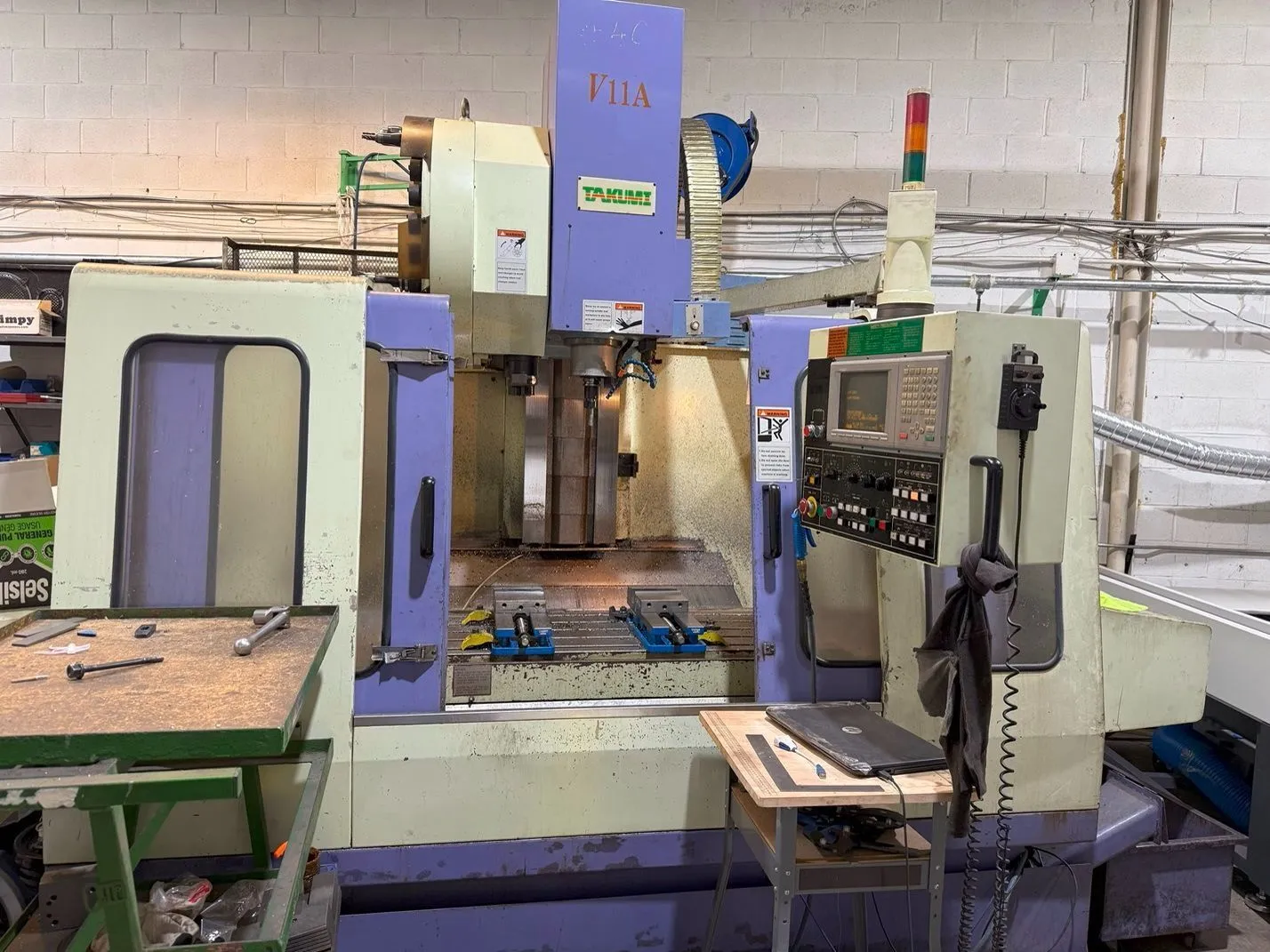

USED 1997 TAKUMI SEIKI V11A
Overview
Description
Takumi CNC Vertical Machining Center, Made in Taiwan
Model: V11A
Year: 1997/08
Control: CNC Mitsubishi Meldas 550
Location: Toronto, ON
Condition: Runs Good and under operation in Tool Room.
Specifications
| X | 43.3" | 1,099.8 mm |
|---|---|---|
| Y | 550" | 13,970 mm |
| Z | 560" | 14,224 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | BT-40 | BT-40 |
| Table-W | 20" | 508 mm |
| Table-L | 53" | 1,346.2 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mistsubishi) | CNC (Mistsubishi) |
| Weight | 8 Tons | 8 Tons |
Takumi CNC Vertical Machining Center, Made in Taiwan
Model: V11A
Year: 1997/08
Control: CNC Mitsubishi Meldas 550
Location: Toronto, ON
Condition: Runs Good and under operation in Tool Room.
Technical Specifications (Subject to Verification)
X-travel : 1100 mm (43.3”)
Y-travel : 550 mm (21.65”)
Z-travel : 560 mm (22”)
Tool taper : BT-40
Spindle motor : 7,5 kW
Feed : 1-4000 mm/min
Rapid traverse : 15/15/12 m/min
Spindle speeds : 6000 U/min
Tool changer : 24
Table surface area : 1350 x 510 mm (53” x 20”)
Electrics : 220 V, 3 Phase, 60 Hz
Power capacity : 20 KVA
Weight of the machine ca : 8 t
Equipped with
• Oil Chiller
• Side Mount Tool Changer
