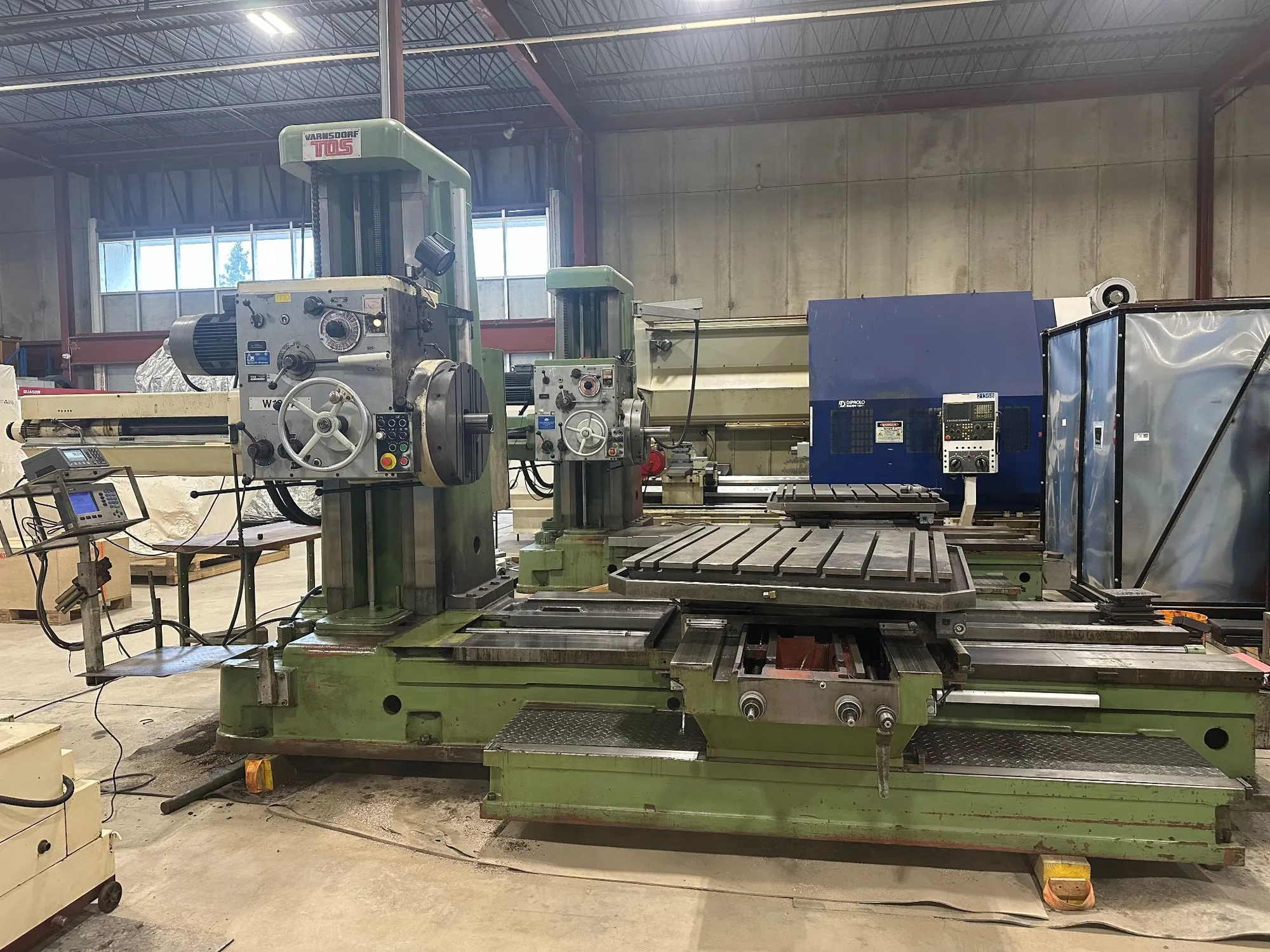

4" manual table type boring mill with built-in rotary table
| Spindle Size | 4" | 101.6 mm |
| X-Horiz Tvl of Table | 63" | 1,600.2 mm |
| Y-Vert Tvl of Head | 44" | 1,117.6 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Table-W | 49.2" | 1,249.7 mm |
| Table-L | 49.2" | 1,249.7 mm |
| Spindle Tvl. | 35.43" | 899.92 mm |
| Dimensions | 240"x110"x120" | 240"x110"x120" |
| Weight | 35,000lbs | 35,000lbs |
4-axis Acu-Rite DRO display & scales
Z-axis travel (saddle in/out): 49" (1250mm)
NEW Heidenhain DRO display for B-axis table w/rotary encoder to .001 degree
NEW X-axis Covers
New Z-axis Cover
50 taper power draw bar with various pull studs / retention knobs
Built-in facing head
575v/3/60 electrics.
Coolant
