| Table Dia | 36" | 914.4 mm |
| Swing | 42" | 1,066.8 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 7,200 RPM | 7,200 RPM |
| Control | CNC (Fanuc Series 32i-Model A) | CNC (Fanuc Series 32i-Model A) |

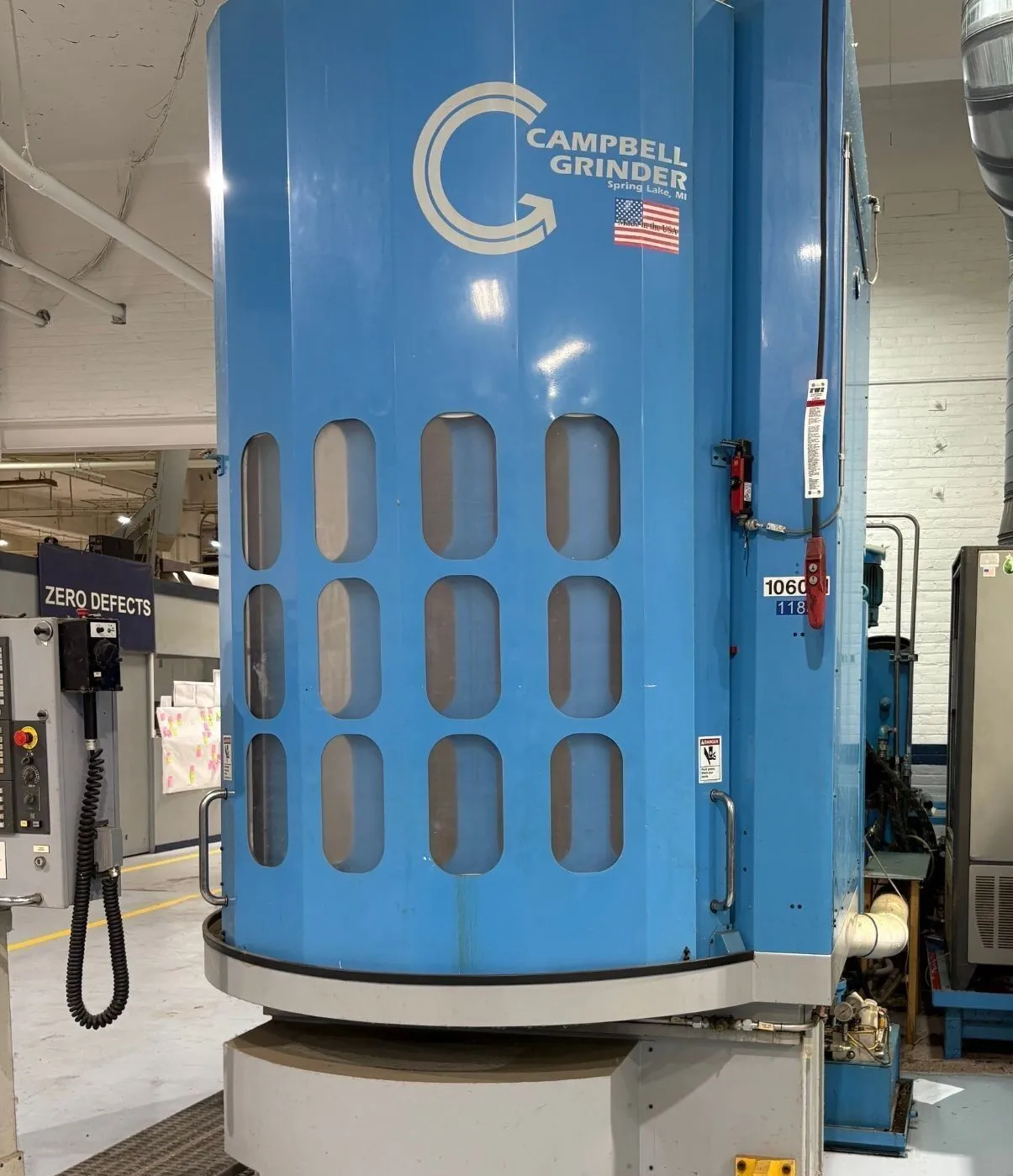

Campbell Model 750-36-36-36/42 CNC Vertical Universal Grinder (2012)
Table Diameter: 36"
Swing Diameter: 42″
Part Height – Maximum: 24″ (Arbor Dependent) and Approach Dependent, Angular or Straight Approach
X-Axis: 36″
Z-Axis: 36″
Main Grinding Spindle: 25 HP
Campbell grinder for sale Spindle Speeds: 1,500 to 7,200 RPM
Spindle Taper: HSK-80
B-Axis (Spindle Swivel): +/- 180 Degrees
Table Drive Motor (A.C. Digital Servo “Whisper Drive”): 7.5 HP
C-Axis Table Drive: 0 – 150 RPM
Table Run-Out, Radial & Axial: 0.0001″
Rotary Dresser Spindle Motor: 10 HP / 3600 RPM
Electrics: 480/3/60
Floor Space Required: 208″ L-R x 166″ F-B x 139″ H
Approximate Weight: 25,000 Lbs.
Fanuc Series 32i CNC
Cooling Filter (14'x5') dimensions
Chiller (4' x 5)'
Mist Collector
Grinding Wheels
