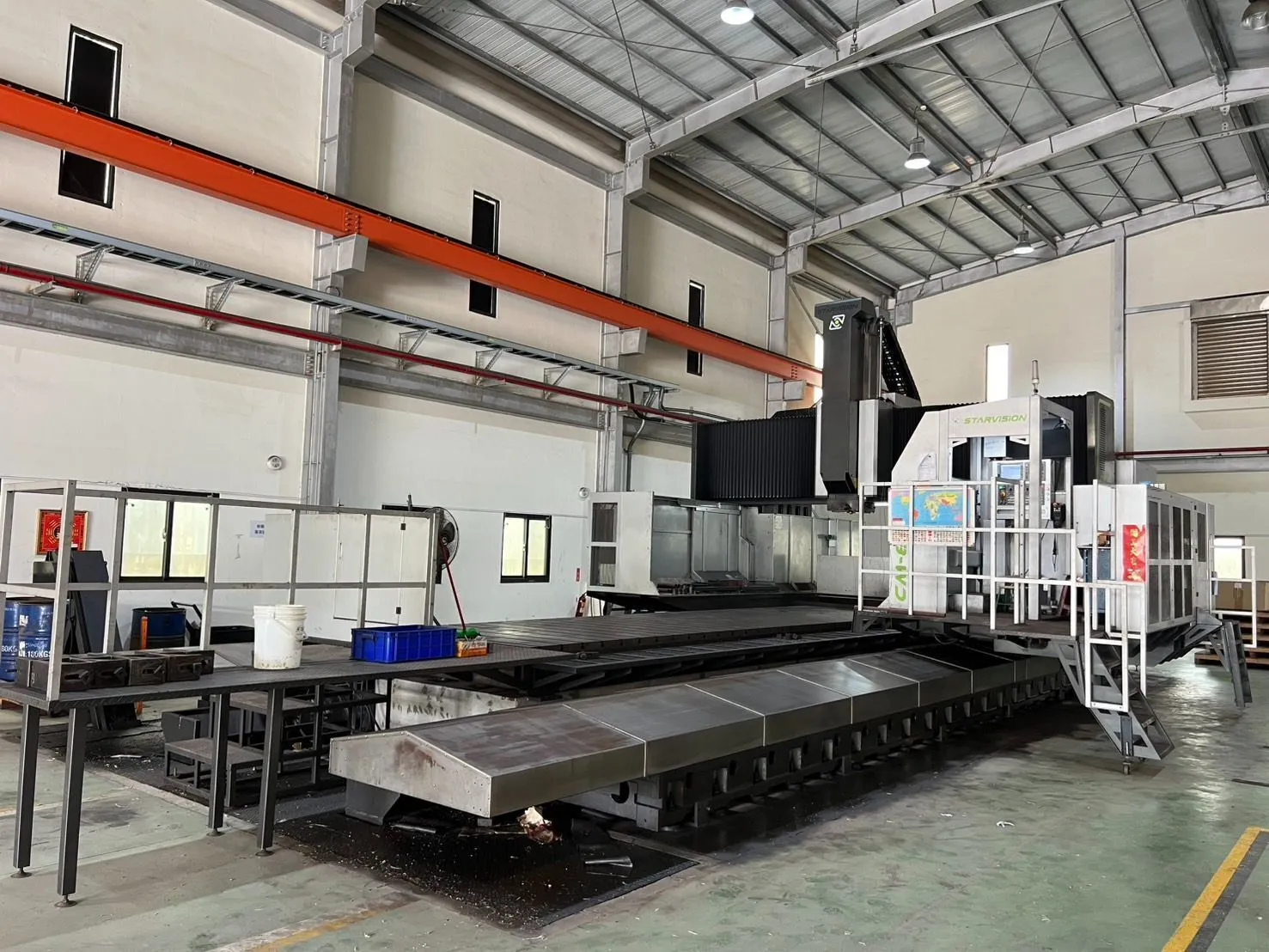

NEW 2022 STARVISION CM 8237
Overview
Description
2022 STARVISION MDL 8237 Double Column Machining Center, X Travel 393"
This machine is currently in a factory ready for production with limited use with the following features; Fanuc 31imb cnc control (10.4"Plus display), Linear ways system for x axis and box way for Y and Z axis, Heidenhain scale for x, y axis, Coolant thru spindle 70 bar, automatic head changer for a right angle programmable head in 5 degree increments, 32 ATC with changes done in vertical and or 24 positions in the horizontal position, Rigid tap, auto lubrication, Air blast, screw type augers for chip removal along side of the table, lift up chip conveyor, coolant system, operator platform, Checking on additional options which are included and will advise.
Specifications
| X | 323" | 8,204.2 mm |
|---|---|---|
| Y | 145" | 3,683 mm |
| Z | 39.4" | 1,000.8 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| # ATC | 32 | 32 |
| Taper | BT 50 | BT 50 |
| Table-W | 78.74" | 2,000 mm |
| Table-L | 314.96" | 8,000 mm |
| Control | CNC (FANUC 31i-MB) | CNC (FANUC 31i-MB) |
| Dimensions | 52' x 37' x 20' Tall | 52' x 37' x 20' Tall |
| Weight | 105 Ton | 105 Ton |
Manufacturer Starvision
Model CM8237
Year of Mfg 2022
Condition Used
Location Taiwan
X axis (Linear guide way)，
Y axis (Moving column box way)，
Z axis (Box way)
Spindle nose to table：410-1,410 mm 55.1"
Table loading：5,000 kgs 11,000 lbs
Dist. between columns：3,400 mm 133.86"
Spindle speed：4,200 rpm (2 Gear Ranges) 4,200 RPM
Table Size 315" X 78"
X Axis travel 323"
Y Axis travel 145"
Z Axis Travel 39.4"
Max. work piece width 118"
Distance From Spindle Nose To Table Top 76.83"
Spindle Taper BT #50
Spindle motor standard 22/26kw
Rapid feedrate 392IPM
Power 107HP
Apprx. machine weight 105 Ton
Machine floor space 52' x 37' x 20' Tall
Equipped With
Auto 90 degree head (C axis 5 degree indexing, 2000rpm)
Auto AC 70 degree head ATC：24ATC
Oil skimmer
X/Y axis Heidenhain linear scales + Air thru
Spindle oil cooler
Coolant thru spindle 70bar
DATE SEVER / AICC II
Air conditioner
Chip conveyor
