1995 POREBA Model TR135-B2/10 Meters
| Swing | 53.15" | 1,350 mm |
| Centers | 393.7 mm | 15.5" |
| Spindle Bore | 4.14" | 105.16 mm |
| Power | 55 kW | 73.8 hp |
| RPM | 500 RPM | 500 RPM |
| Swing Over Cross Slide | 41.34" | 1,050 mm |
| Dimensions | 65.5’ (L) x 9.41’ (W) | 65.5’ (L) x 9.41’ (W) |
| Weight | 43,000 lbs | 43,000 lbs |

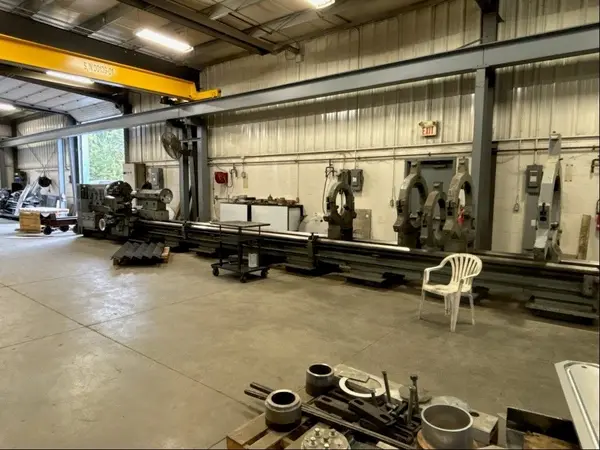

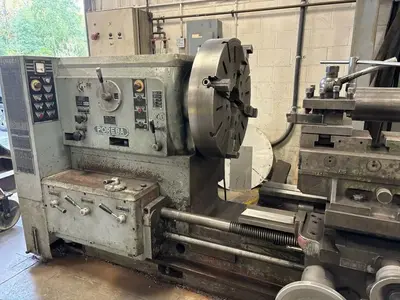

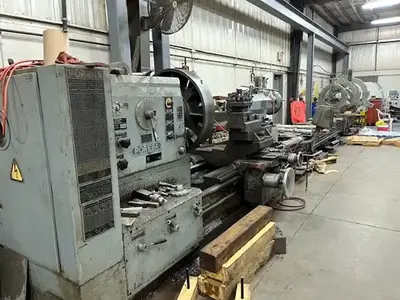

Poreba TR135-B2/10M 53" x 396" Engine Lathe (1994)
Specifications:
Size 53" x 32'
Swing 53"
Centers 396"
Swing in Gap 65"
Lemgth of Gap from Spindle Nose 22"
Bed Width 25.98"
Feeds – Longitudinal. 0.0035” - .400” TPR
Cross Slide Feeds:.. 0.0017 to .200 TPR
Top Slide Feeds: 0.0008 to .100 TPR
Threads - Inch (61) ½ to 60 TPI
- Metric (62) 1 – 120 mm/Rev
Cross Slide Travel: 20-3/4”
Tailstock Spindle Diameter (# 6 MT) 7-1/2”
Tailstock Travel: 12”
Maximum Weight Between Centers Unsupported: 20,000 Lbs.
Maximum Weight Between Centers With (1) Steady: 22,100 Lbs.
Maximum Weight Between Centers With (2) Steadies:. 26,500 Lbs.
Spindle Bore 4.72"
Power 55 hp
Spindle Speed RPM (24 steps) 500 RPM
Swing Over Cross Slide 41"
Dimensions 43,000 lbs
Equipped With:
32” 4 Jaw Chuck,
Live Center Built into Tailstock
Hardened and Ground Bed Ways
Coolant system

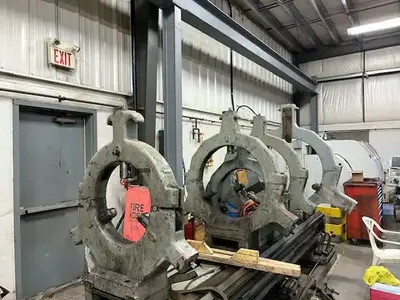

(4) Roller Bearing Steady Rests (2) 400-700MM, (1) 160-450MM, (1) 700-900MM
Power Rapid Traverse
