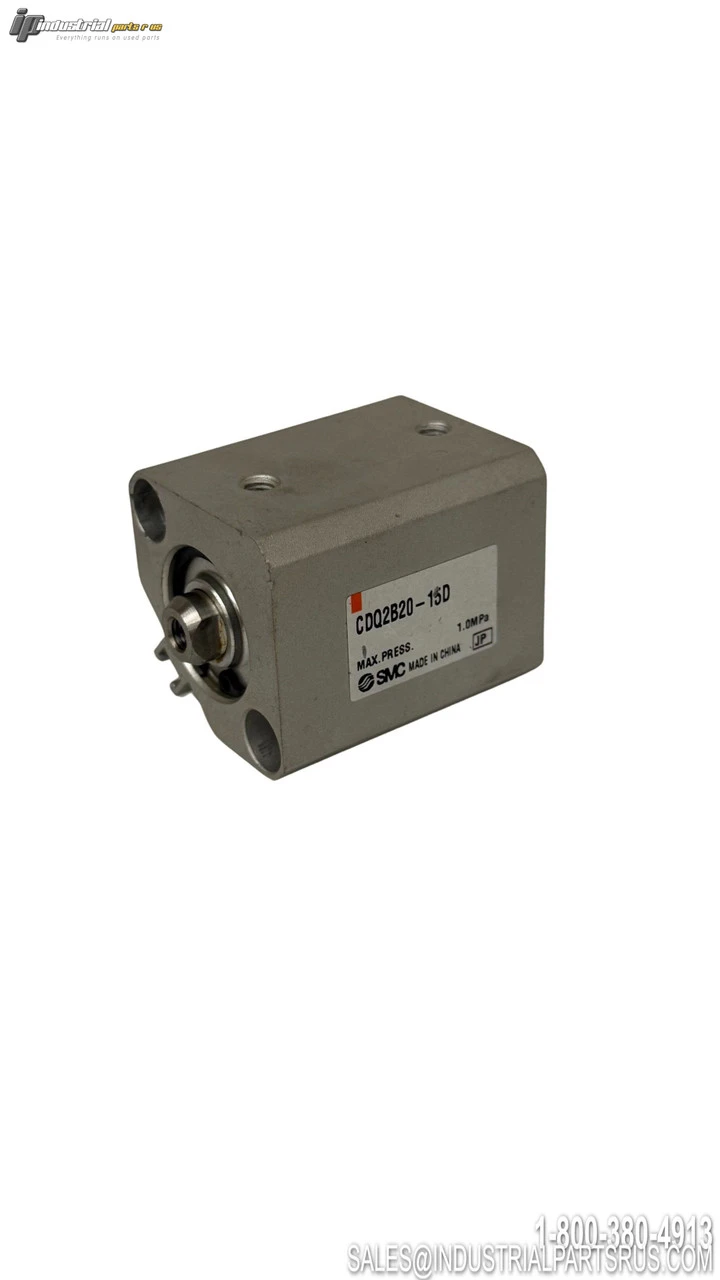

USED SMC CDQ2B20-15D
Overview
Description
The SMC CDQ2B20-15D is a compact pneumatic cylinder from SMC's CQ2 series, designed for space-saving applications where compact design is critical. This double-acting, single rod cylinder features a 20mm bore diameter with a 15mm stroke length, making it ideal for automation equipment requiring precise linear motion in confined spaces.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2B20-15D
Product Type
Compact Cylinder
Series
CQ2
Bore Diameter
20 mm
Stroke Length
15 mm
Cylinder Action
Double Acting
Rod Configuration
Single Rod
Maximum Operating Pressure
1.0 MPa (10 bar)
Rod Thread Size
M5 x 0.8
Port Size
M5 x 0.8
Rod Diameter
10 mm
Body Material
Aluminum
Piston Material
Aluminum
Rod Material
Stainless Steel
Magnetic Piston
Yes
Auto Switch Capable
Yes (2 surfaces for ø20)
Mounting Style
Compact
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1050
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Shelf: B-16
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQ2B20-15D
Bore Diameter: 20 mm
Model: CDQ2B20-15D
MPN: CDQ2B20-15D
Type: Compact Cylinder
