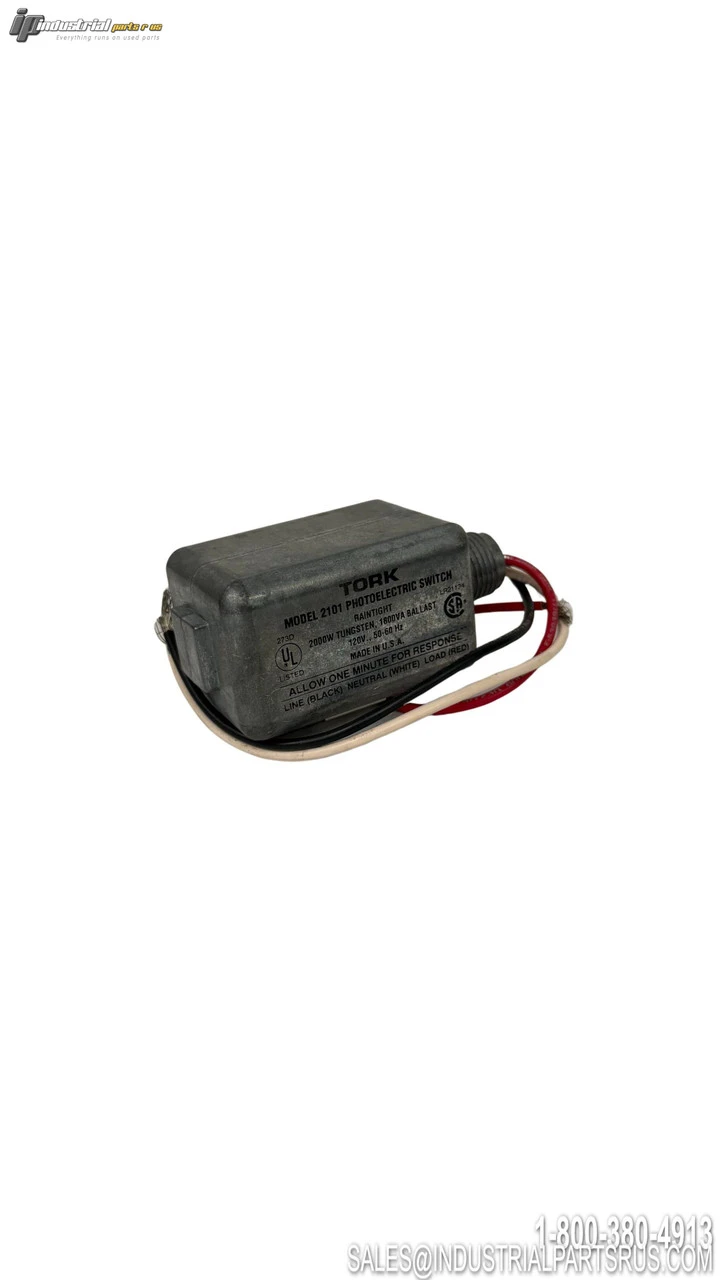

NEW TORK 2101

The TORK 2101 is a specification-grade photocontrol sensor designed for outdoor lighting applications. This dusk-to-dawn controller automatically turns lights on when ambient light levels drop between 1-5 foot-candles and turns them off when light levels reach 3-15 foot-candles. Built with die-cast zinc construction and featuring a cadmium sulfide photocell sensor for reliable operation in various weather conditions.
Specification
Value
Brand
TORK
Model/Part Number
2101
Manufacturer
NSI Industries
Product Series
2100 Series
Input Voltage
120 VAC
Frequency
50/60 Hz
Tungsten Load Rating
2000W
Ballast Load Rating
1800 VA
LED Load Rating
600 VA
Contact Configuration
SPST (Normally Closed)
Turn On Light Level
1 to 5 FC
Turn Off Light Level
3 to 15 FC
Time Delay
Up to 2 minutes
Power Consumption
Less than 1 Watt
Sensor Type
Cadmium Sulfide
Sensor Diameter
1/2 inch
Housing Material
Die Cast Zinc
Mounting Type
1/2" Stem Mount
Wire Leads
6" leads, 16 AWG
Operating Temperature
-40°F to +140°F (-40°C to +60°C)
Weather Rating
Raintight
Standards Compliance
ANSI/UL773A, cULus, Title 24, CSA
We warranty all items for 30 days from date of purchase.

SKU: AI0921
UPC: 679523686260
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Shelf: K-59
GTIN: 679523686260
Output Type: Relay
Sensor Type: Cadmium Sulfide
Manufacturer: Tork
Part Number: 2101
Model: 2101
MPN: 2101
Type: Photoelectric Sensor
