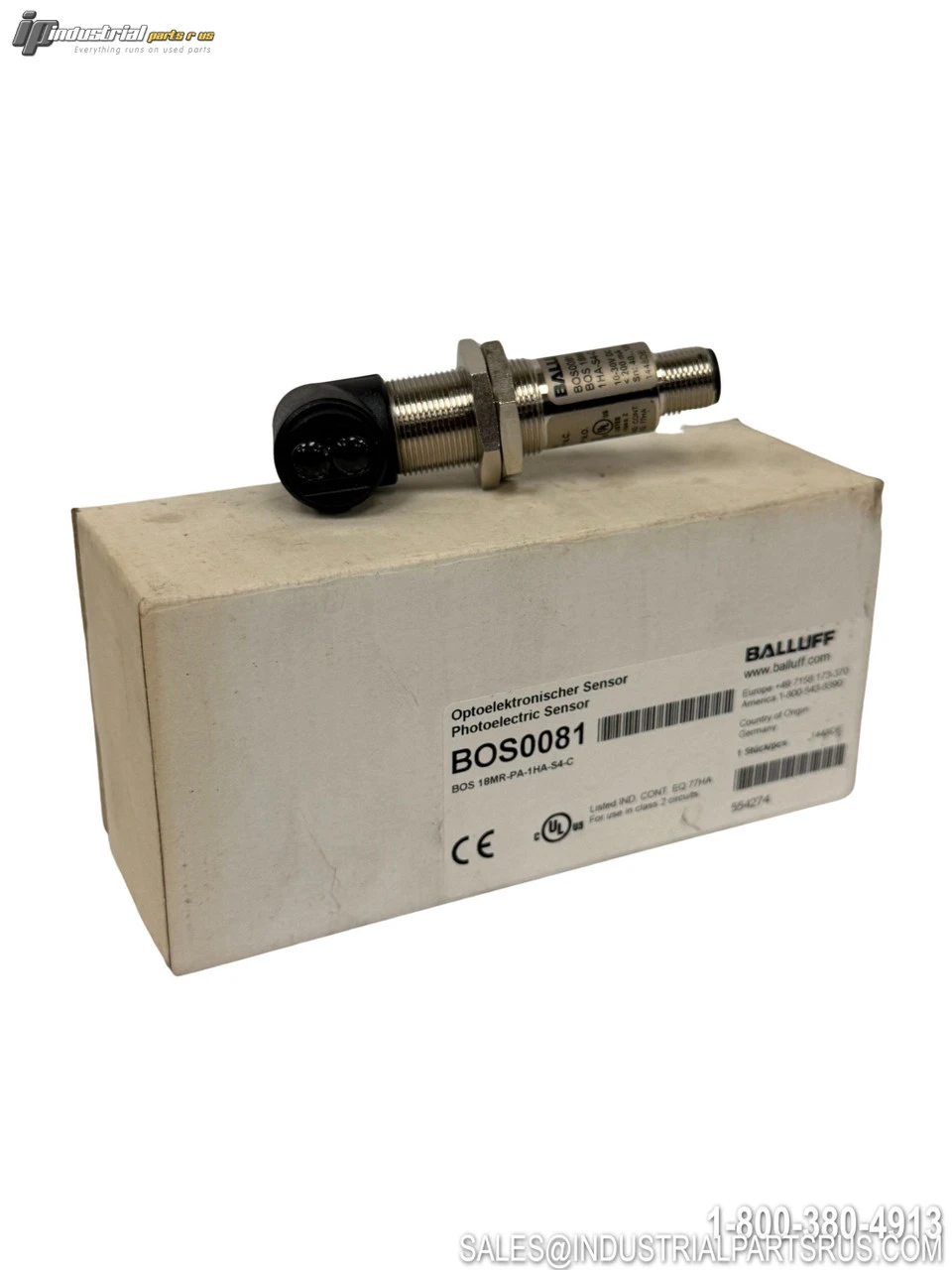

NEW BALLUFF BOS0081

The Balluff BOS0081 (BOS 18MR-PA-1HA-S4-C) is a high-performance diffuse photoelectric sensor with background suppression and triangulation technology. This sensor ensures reliable detection regardless of surface color, material, or reflectance levels, making it ideal for precise object detection applications in industrial automation environments.
Specification
Value
Brand
Balluff
Model/Part Number
BOS0081
Alternate Part Number
BOS 18MR-PA-1HA-S4-C
Series
18MR
Type
Photoelectric Sensor
Sensor Type
Diffuse sensor with background suppression
Operating Principle
Triangulation
Sensing Range
40-120 mm
Dimensions
20 x 82 x 28 mm
Operating Voltage
10-30 VDC
Interface
PNP Normally Open (NO) & Normally Closed (NC)
Light Type
LED Red Light
Light Spot Size
8 x 10 mm at 100 mm
Beam Characteristic
Divergent
Connection Type
M12x1-Male, 4-pin connector
Housing Material
Brass, nickel-plated
Sensing Surface Material
Glass
Certifications
CE, cULus, WEEE
We warranty all items for 30 days from date of purchase.

SKU: AI1056
UPC: 679523686222
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686222
Output Type: PNP
Sensor Type: Photoelectric
Manufacturer: Balluff
Part Number: BOS0081
Shelf: K-51
Model: BOS0081
MPN: BOS0081
Type: Photoelectric Sensor
