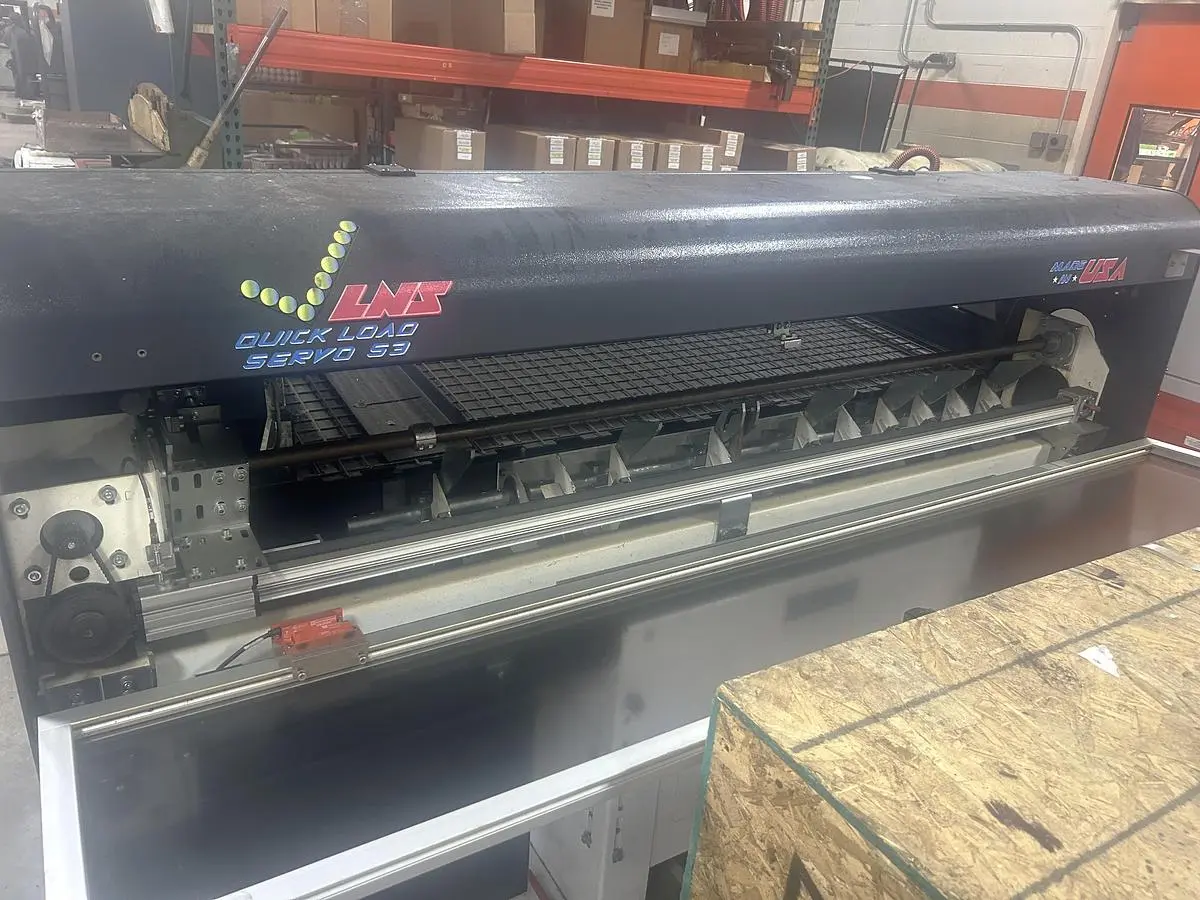

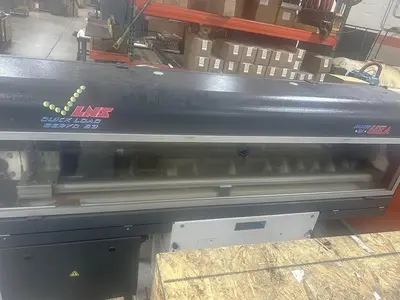

USED 2004 LNS QUICK LOAD SERVO S3 BARFEEDER

Loading Tray - Side Load Rack
Servo Motor Driven
Loading Front/Rear
Type of Headstock Fixed / Traveling
Notched Belt Type Drive
Parts Library - 500 Parts Program Storage

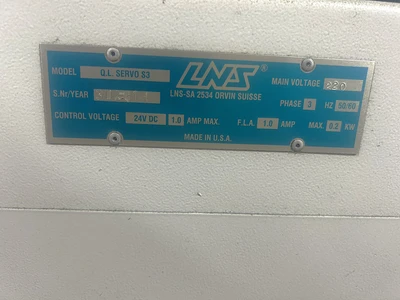

Wired 220V 3 Phase

The 2004 LNS Quick Load Servo S3 Barfeeder is a reliable and versatile accessory suited for various machining applications. With a round bar stock diameter capacity ranging from 0.23" to 4.7" and a bar capacity length between 5.1" and 63", this barfeeder can accommodate a range of bar sizes for precision feeding. It supports a maximum bar stock weight of 147.6 lbs and offers a Z axis retraction of 23.6", allowing for flexible machine operation.

The barfeeder is equipped with a chain loading rack system and is compatible with both fixed and traveling headstock types, driven by a notched belt mechanism. It achieves a maximum feedrate of 3937 inches per minute (IPM), ensuring high-speed and efficient performance. The unit operates at an air pressure of 75 PSI, which supports smooth functioning of the system.

In terms of dimensions, the overall size of the machine is 84" x 64" x 75", with a maximum length of 104" when the Z axis is fully retracted. Weighing 1,360 lbs, this used LNS Quick Load Servo S3 Barfeeder provides a solid combination of durability and performance, making it a valuable addition to your tooling and accessory needs.

Round Bar Stock Diameter Capacity: .23" - 4.7""
Bar Capacity Length: 5.1" - 63"
Maximum Bar Stock Weight: 147.6 lbs.
Z Axis Retraction: 23.6"
Loading System: Chain Loading Rack ?
Headstock Type: Fixed or Traveling ?
Driven By: Notched Belt ?
Maximum Feedrate: 3937 IPM
Air Pressure: 75 PSI
Overall Dimensions: 84" x 64" x 75" (max length with fully retracted Z Axis 104")
Machine Weight: 1,360 lbs.
