USED 2010 HAAS VF-3

WIPS Renishaw Tool & Part Probe
Programmable Coolant Nozzle
High-Intensity Lighting
Auger Style Chip Conveyor
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Haas Intuitive Programming System
Coolant System with Tank & Pump
Wired 360-480V Electrical

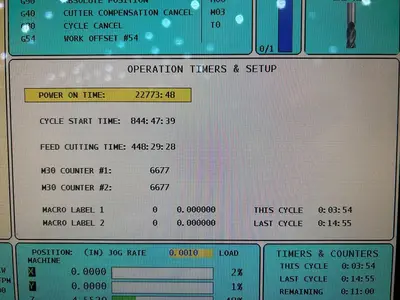

**Only 448 Feed Cut Hours**

**Workholding in photos is not included with machine**

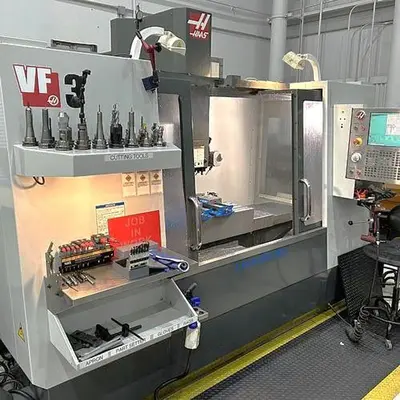

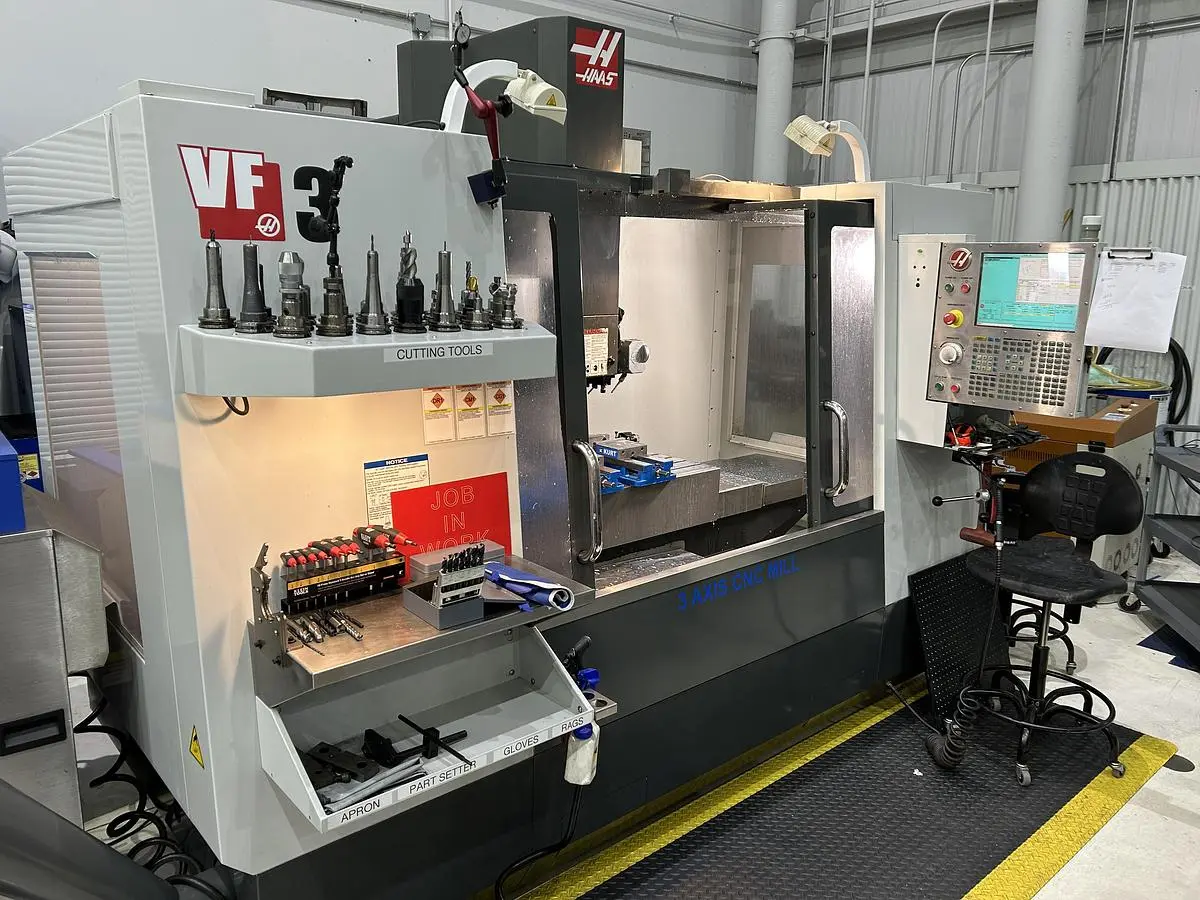

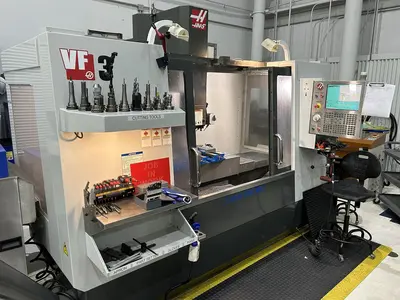

The 2010 Haas VF-3 CNC Vertical Machining Center is a robust and reliable option for precision machining needs. Equipped with advanced features, it includes Haas Probing for efficient setup, Programmable Coolant for optimal tool performance, and a Chip Auger for effective chip management. The high-intensity lighting ensures excellent visibility during operations. This machine is exceptionally well-maintained, with only 448 feed cut hours logged, underscoring its lightly used status.

Its substantial 48" x 18" table can accommodate loads up to 3,500 lbs, and offers generous axis travels: 40" in the X, 20" in the Y, and 25" in the Z direction, suitable for a variety of projects. The spindle, featuring a CAT 40 taper and a speed of up to 8,100 rpm driven by a 20 HP direct drive motor, delivers impressive performance for demanding tasks. Tool changes are facilitated by a 20-station umbrella-style Automatic Tool Changer, supporting efficient machining processes.

Designed with user convenience in mind, the machine allows rapid traverse rates of 710 IPM, ensuring productivity in high-volume settings. The manageable dimensions, 118" x 98" x 118", along with a machine weight of 12,500 lbs, make it a substantial yet feasible addition to any industrial setup. Overall, this VF-3 model combines efficiency, precision, and durability, ideal for both small and large-scale operations.

Table Size: 48" x 18"
Maximum Table Load: 3,500 lbs
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 25"
Spindle Taper: CAT 40
Spindle Speed: 8,100 rpm
Spindle Motor: 20 HP Direct Drive
Distance Spindle Nose to Table Top: 4" - 29"
Tool Magazine Capcity: 20 Station ATC - Umbrella Style
Rapid Traverse Rates: 710 IPM
Maximum Tool Diameter / Length / Weight: 3.5" / 13" / 12 lbs
Machine Dimensions LxWxH: 118"x98"x118"
Machine Weight: 12,500 lbs
