USED 2002 HOLZ HER / KUNDIG 1350-WWC
Overview
Description

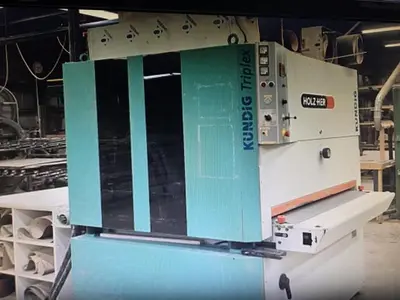

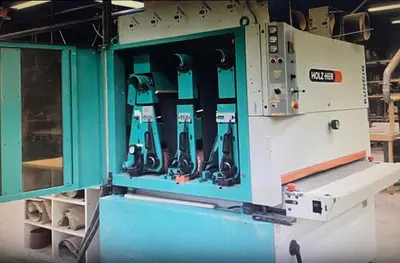

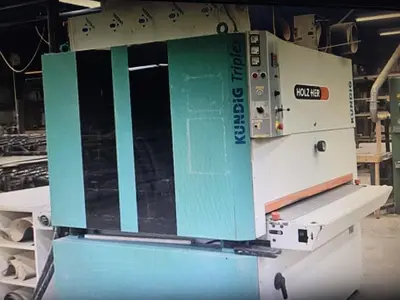

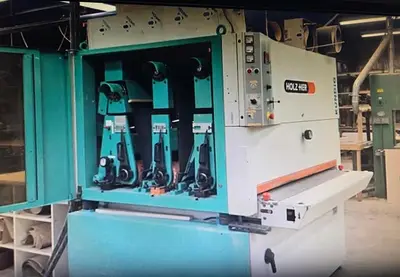

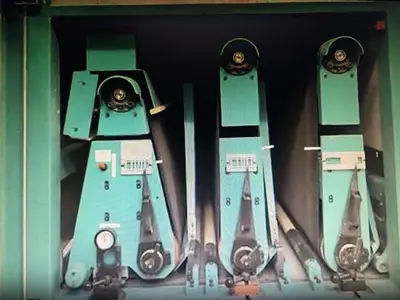

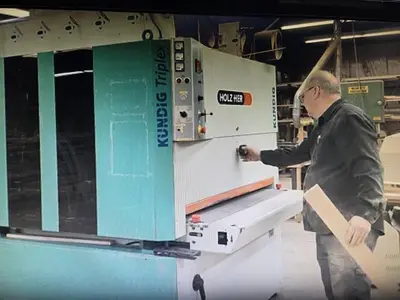

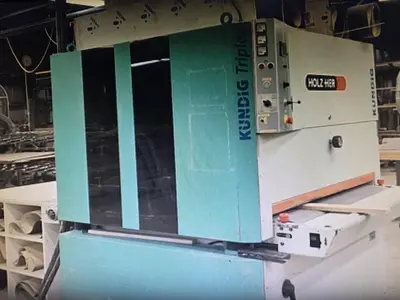

Holz Her / Kundig Triplex 1350-WWC 3 Head 53" Wide Belt Sander, 2002, 3PH
Specifications below are believed to be correct from Holz-Her but may need to be further verified.
Working Width 1350mm
Thickness of Workpiece Min. / Max. 3-160mm
Mnimal length of workpiece 400mm
Abrasive belt width 1360mm
Abrasive belt length 1900mm
Abrasive belt speed on roller 19m/s
Abrasive belt speed on pad 15m/s
Feed speed 3-15 m/min.
Air pressure 7 bar
Main motors 22KW, 18.5KW, 11KW
Feed motor 1.5KW
Height adjustment motor .75KW
Connected load 53.75KW
Required fuse 120A
Diameter of exhaust 3 x 180mm
Exhaust air speed min. 20m/s
