USED 2011 ADCO MANUFACTURING CTF 470V

ADCO Tray Former – Tray Erector Model CTF 470V, Year 2011

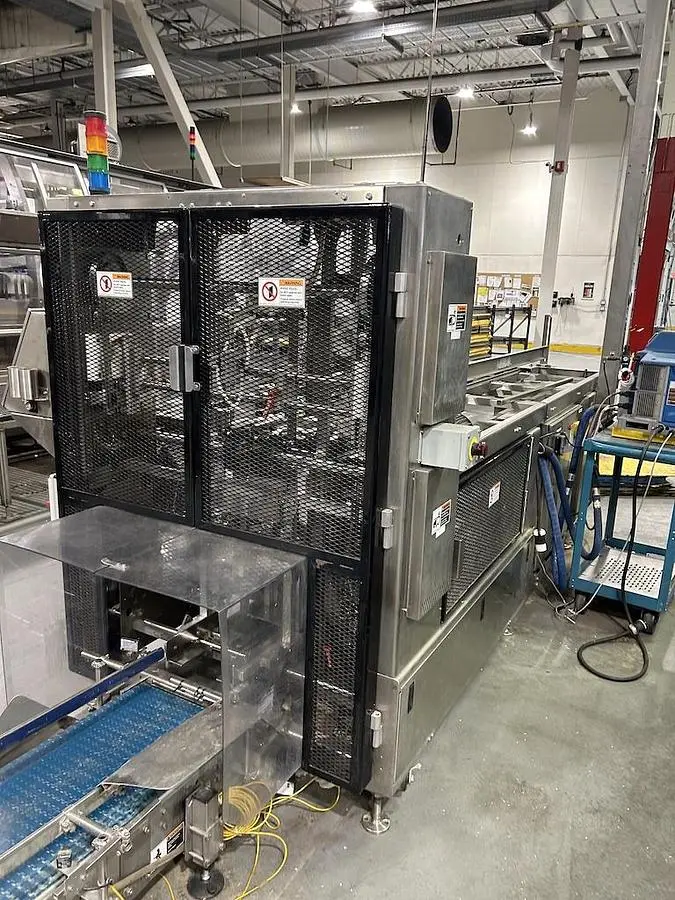

Used ADCO CTF 470V Tray Former is a stainless steel, servo-controlled machine designed for high-performance corrugated tray forming

Used ADCO Tray Former -Tray Erector Model CTF 470V Capable of forming a wide range of sizes and styles of corrugate trays, the ergonomically designed CTF 470V delivers class-leading performance at speeds up to 70 cycles per minute. Featuring a powered magazine and available fast “no-tool” changeover, the compact and simple to operate, the Adco CTF 470V is ideal for the most demanding production environments. The servo powered mandrel allows the stroke travel to be optimized by folding flaps gradually, maximizing compression, and accelerating the return stroke. Like all ADCO machines, the CTF 470V is constructed in stainless steel and is available in both standard and washdown configurations.

Details:

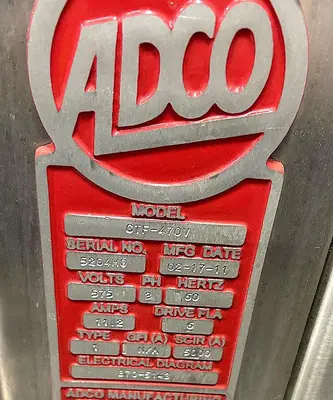

- Model CTF 470V
- Serial Number 5204H0
- Electrical Diagram 370-5143
- Manufacturer: ADCO MANUFACTURING / a Massman Company
- Manufactured year 2011
- Tray Dims.: Length: 15" to 26" | Width: 7" to 18" | Height: 1.5" to 8"
- Power: 575v-3 ph-60hz, 11.2 AMPS
- Heavy-duty stainless steel frame suitable for demanding environments.
- Controls: Equipped with an Allen-Bradley PLC and touch screen HMI for precise operation.

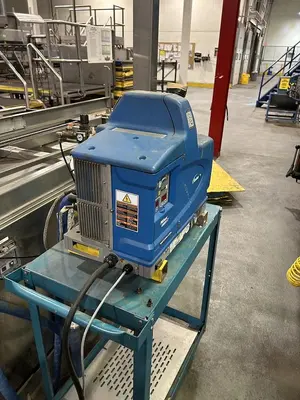

- Glue System: Nordson ProBlue 7 hot melt glue unit.
- Magazine: Features a 60-inch horizontal magazine for ergonomic loading.
- Safety: Includes barrier guarded safety package.
