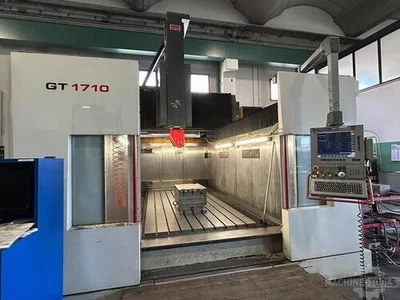

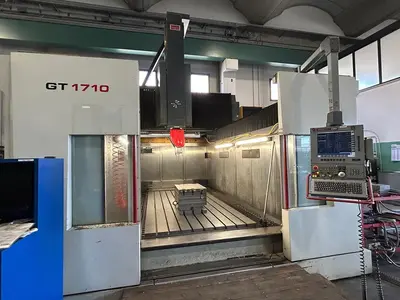

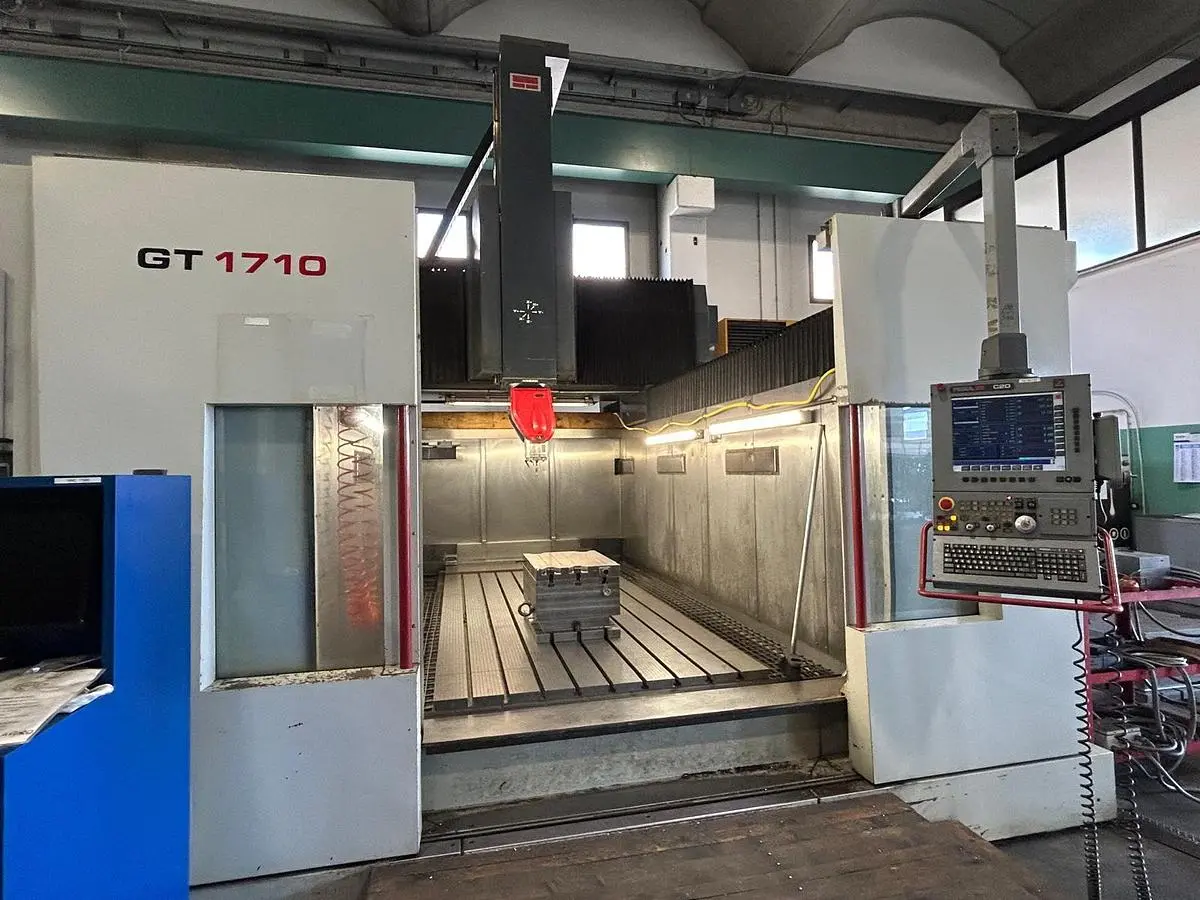

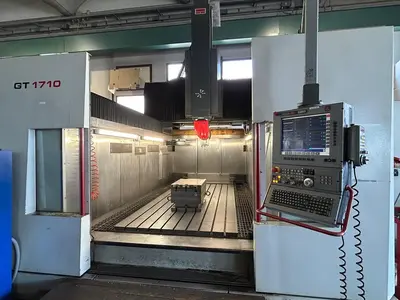

USED 2008 FIDIA GT 1710
Overview

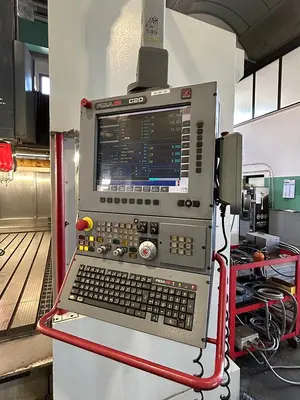

Fidia C20 CNC Control
24-position tool magazine
Remote electronic handwheel
HMS system for head calibration
Various equipment included with the machine
User and maintenance manual and CE declaration of conformity
ELECTROSPINDLE
Maximum power (S6 60%): 55 kW
Spindle speed range: 240 - 24,000 rpm
Constant power range: 6,000 - 24,000 rpm
Maximum torque: 87.5 Nm
Tool holder: HSK-A63
C-axis travel: ± 200°
C-axis speed: °/min 2,000
C-axis offset from spindle axis: 75 mm
A-axis travel: +95° / -110°
A-axis speed: °/min 2,000
Max distance spindle nose – table surface: 1,175 mm
Specs
Manufacturer: Fidia
Model: GT 1710
Year: 2008
Condition: Used
Stock Number: 5654339
Spindle speeds: 24,000 rpm
Machining height: 1,175 mm
X axis travel: 3,150 mm
Y axis travel: 1,850 mm
Z axis travel: 1,000 mm
Table dimensions: 3,000 x 1,600 mm
Table capacity: 5,000 kg/m²
Rapid Feed X/Y: 30 m/min
Rapid feed Z: 24 m/min
Spindle power: 55 kW
Spindle taper: HSK-A63
