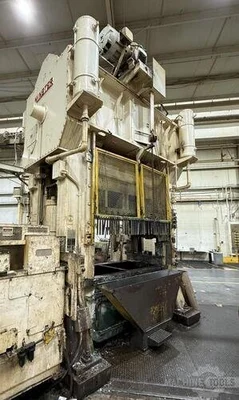

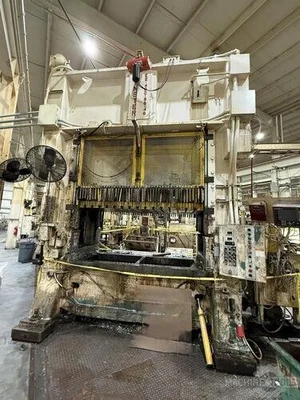

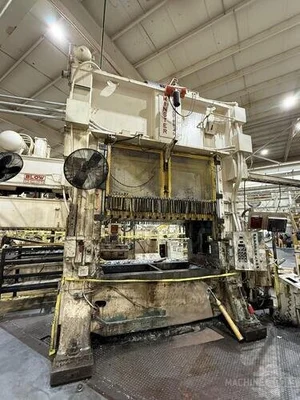

USED 1986 MINSTER E2-400-96-48 HEVI-STAMPER

1986 MINSTER E2-400-96-48 Hevi-Stamper Double Crank Press - 400 Ton Capacity

Tonnage: 400
Stroke: 12 inches
Shut Height: 32 inches
Adjustment: 6 inches
Bed Size: 96 x 48
Ram Area: 96 x 48
SPM: 35-70 VSPM

400-ton Minster Hevi-Stamper Model E2-400-96-48
Straight Side Mechanical Stamping Press
400-ton Capacity12" Stroke32" Shut Height On Bed25" Shut Height Over Bolster6" Motorized Adjustment96" LR x 48" FB Bed Area96" LR x 48" FB Slide Area0-70 Variable Strokes Per MinuteEquipment and FeaturesMinster Pneumatic Clutch and BrakeAir CounterbalancesMinster Monitor Flow Lubrications SystemT-Slotted Ram and Bolster Plate7" Thick Bolster PlateWintriss Smart Pak 2 Press Controls33" Wide WindowsVibro Dynamic Floor Pads8-Point Adjustable Gibbing Single Geared - Twin End DriveFloor StandingThis 400-ton Minster can be seen in operation at the plant upon request.Boost your shop’s productivity with this elite 400-ton Minster Hevi-Stamper (E2-400-96-48), the industry benchmark for high-speed straight side mechanical presses. Engineered for precision metal stamping, this 1985 workhorse features a generous 96" x 48" bed area and a versatile 12" stroke, making it the ideal solution for complex progressive die applications. Equipped with Wintriss Smart Pak 2 controls, 8-point gibbing, and a variable speed drive reaching 0-70 SPM, this Minster E2 press ensures unmatched rigidity and tool life. This floor-standing, high-capacity mechanical press includes a Monitor Flow lubrication system, a T-slotted bolster and motorized adjustment for rapid setups. Don't miss this rare opportunity to acquire a legendary Minster stamping press—available for immediate inspection under power!Watch the 400-Ton Minster in Action – Click Here!
