USED 1998 AMERICAN HD 301

Engine Lathe

Request a Quote
Add to Cart
Beam Maximum Length: 128"
C-Frame Maximum Width: 245"
C-Frame Maximum Height: 117"
Total Weight: 45000 Lbs
Production: Up to 10 Wheel Sets per 8-Hour Shift
Diameter Accuracy: +/- 0.020 in. +/- 0.5 mm
Eccentricity: +/- 0.020 in. +/- 0.5 mm
Profile Accuracy: +/- 0.010 in. +/- 0.25 mm
Surface Finish: 200 RMS Axially / 150 RMS on Wheel Circumference
Milling Cutter Speed: 30 RPM

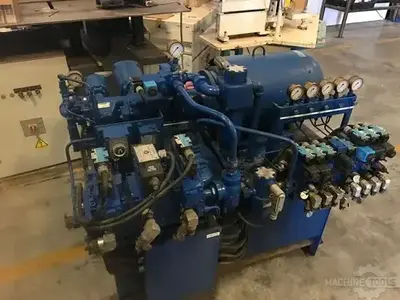

Hydraulic Centering Ram Force: 6500 Lbs
Hydraulic Hold-Down Force: 15 Tons
Pit Dimensions Length: 325" (8574 mm)
Pit Dimensions Width: 315" (7947 mm)
Pit Dimensions Depth: 122" (3065 mm)
Hours: 248 Hours
3 Sets of Cutting Heads: Large Pallet of New Parts/Spares
