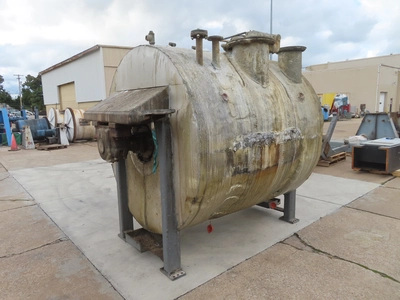

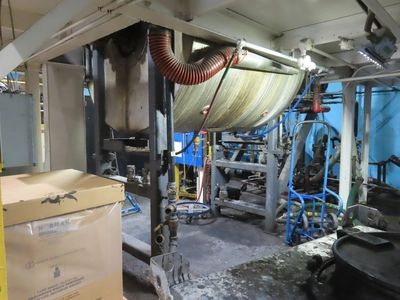

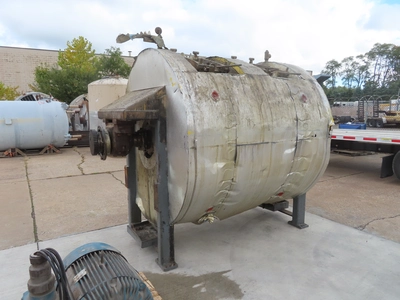

105 cu ft J.H. Day Turbulent Mixer with vacuum dryer capability
Overview
Description
one(1) used J.H. Day Turbulent Mixer Vaccum Dryer
Rated for 105 cu ft working capacity, 140 cu ft total capacity
304 stainless steel contact parts
66" inside diameter x 72" long inside length of chamber

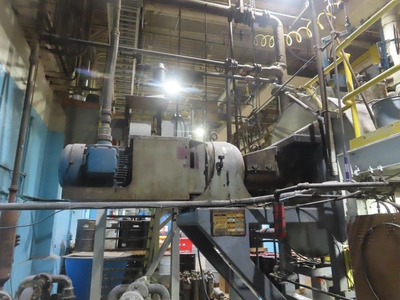

100/50 hp 2 speed motor coupled to Louis Allis Reducer
Motor RPM is 1775/885 rpm, gear reducer ratio 31.4:1
Mixer output rpm is 56 rpm and 28 rpm

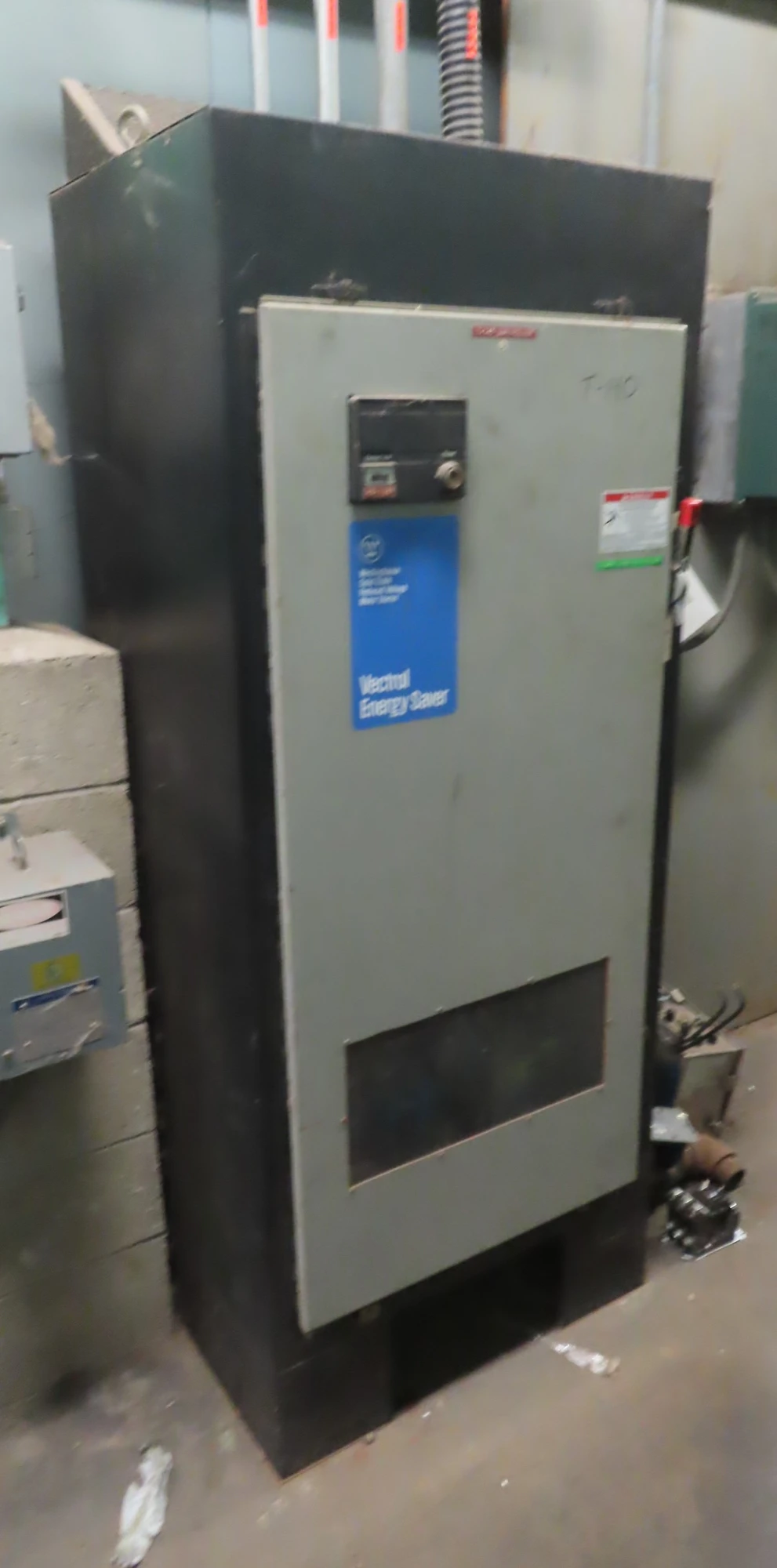

Equipped with a Westinghouse Solid State Reduced Voltage Motor Starter
Chamber is jacketed for 14 psi and insulated
Top Front includes two(2) 17" x 18" hinged doors
Top Back includes 14" inlet with cover, 10" inlet, & (2) 1.75" inlets

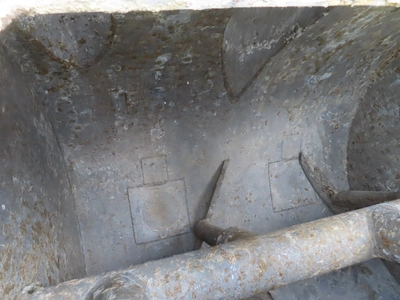

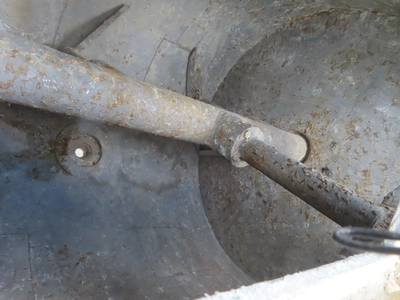

Main shaft is 7" diameter, with four 4" diameter arms
Paddles are approx. 32" long contoured to fit the chamber
End paddles also have a end wall wiper arm
Center bottom outlet, Looks to be 10" reduced down to 2" NPT
Has 2 speed motor starter in cabinet
Heavy duty outboard roller bearings
Heavy duty bracket for drive motor
Equipped with 46" tall leg extensions.
