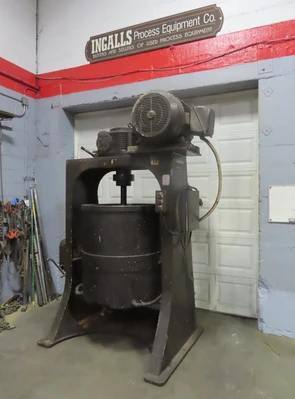

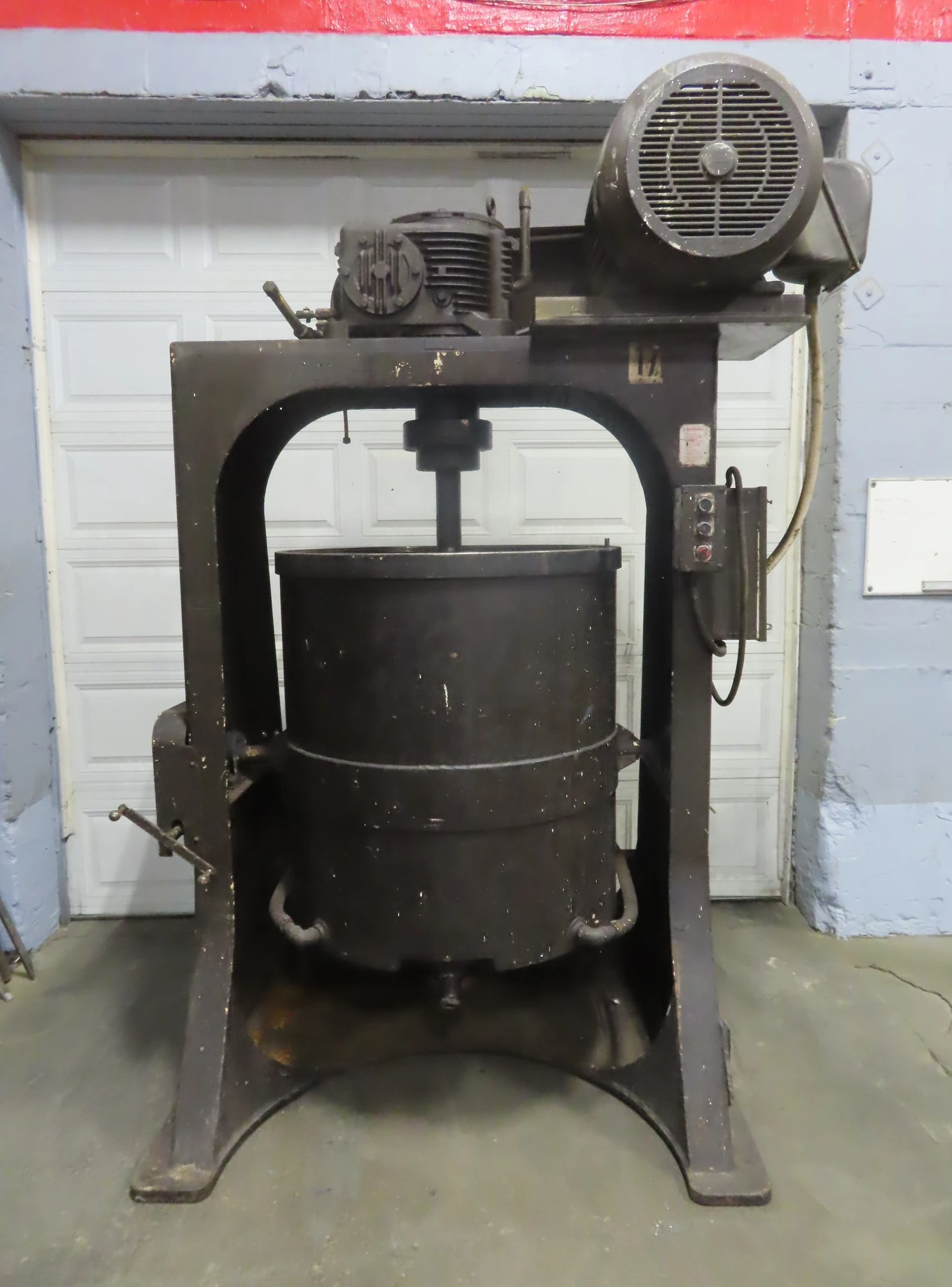

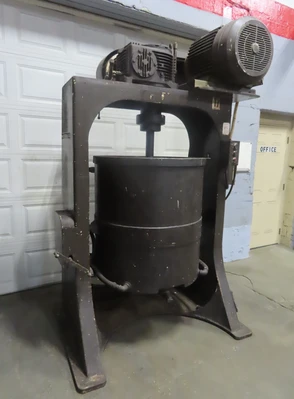

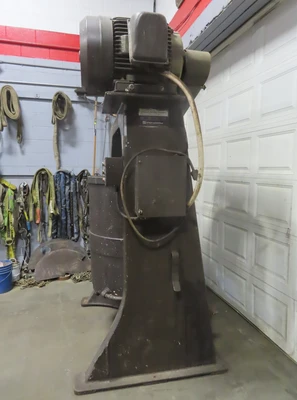

One (1) used 100 gallon Union Process Attritor

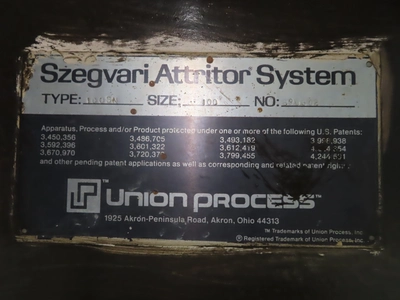

Type 100SN
Size 100
Serial number: 890602
Stainless steel jacketed tank
34" diameter x 39" deep
5.5" diameter discharge screen, tapers to 1" discharge
25 HP/ 8.5 HP 2 speed motor, 460 voltage
Belt driven to gear reducer, with belt guard
Final shaft RPM is 75 and 24
Shaft and arms are in good condition
Hand crank with gear box for tilting tank
Removable split top cover
2.75" shaft diameter, arms are 1.25" diameter
Tank is clean

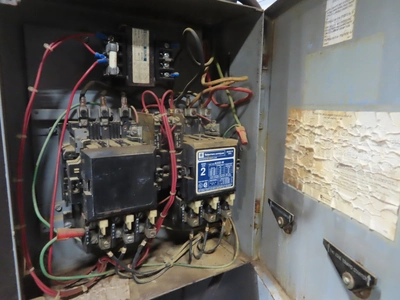

Includes start/stop buttons, and a 2 speed motor starter
Overall dimensions: 61" L-R, 48" F-B, 8'10" tall
Weight: Approximately 4,000 lbs.
Test run video is available, please inquire
Other units/sizes may be in stock, please inquire
