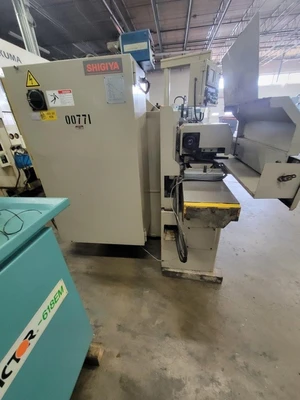

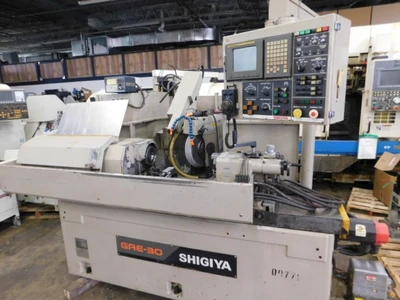

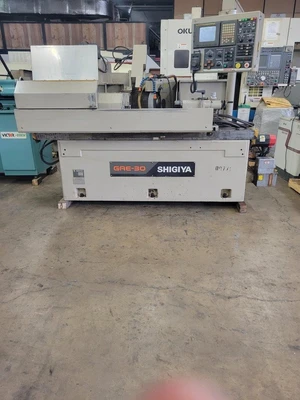

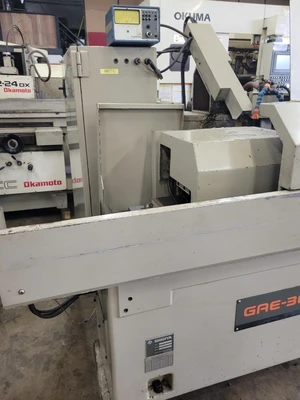

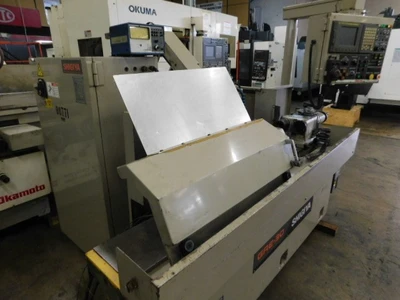

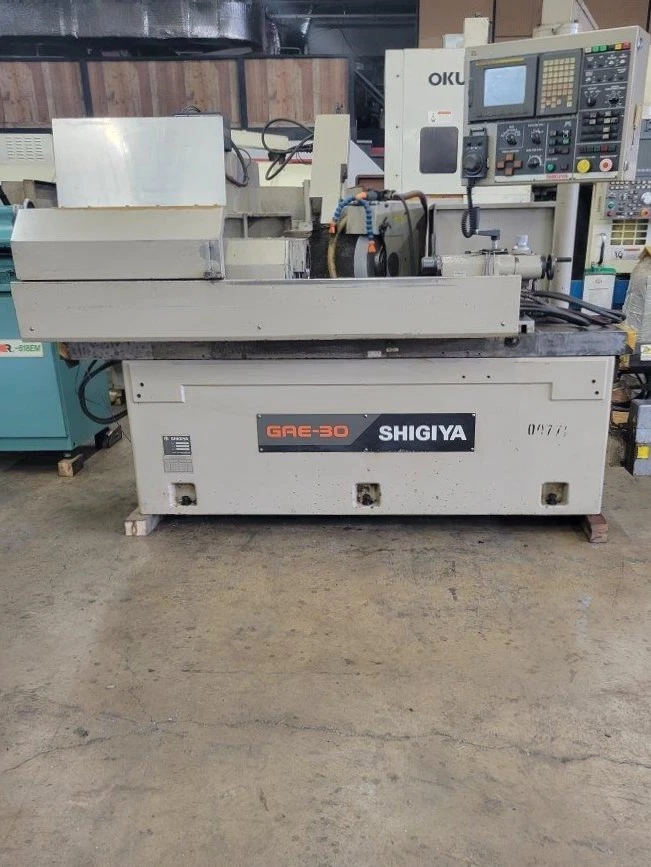

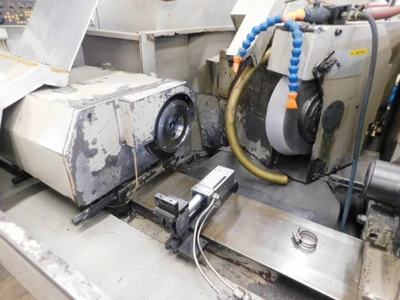

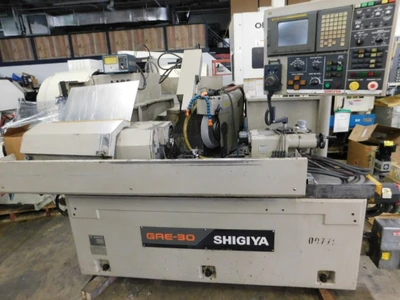

Used Shigiya CNC 2-Axis Angle Head Grinder
Model: GAE 30-60
Swing Over Table: 300 mm (11.811”)
Distance Between Venters: 600 mm (23.622”)
Maximum Grinding Diameter: 300 mm (11.811”)
Maximum Load Mass Between Centers: 150 kg (330 lbs.)
Wheel OD, W, ID: 455 mm x 75 mm x 127 mm
Wheel Peripheral Speed: 33 M/sec
Wheel Head Angle At 30 Degrees
Wired: 220v/60cy
Control Voltage: 100v
S/N: 090234 12-50
Weight: 8,500 lbs
Comes Equipped With:
Fanuc 21iT Controls w/ Remote Pulse Hand Controls
Hydro Dynamic Bearings (not radial contact type)

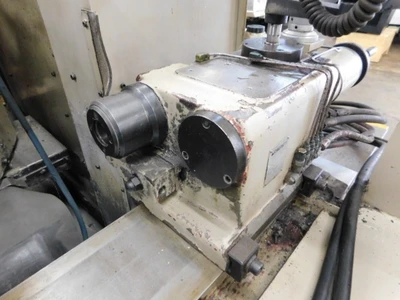

GU Swivel Work Head Type
Work Head Spindle Stop Orientation Device
Live Spindle Center On Work Head
Wheel Dresser
Marposs E9 “In Process” Gauging System That Automatically Adjusts For Thermal Conditions

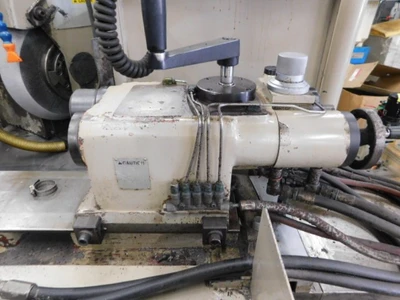

HydraulicTail Stock w/ #4 MT w/ 50mm Of Stroke And Fine Taper Adjustment, Lever Actuated
200 L Coolant Tank w/ Magnetic Separator
Face Locator
Operators’ Manual
Model: GAE 30-60
Item: 22229B
