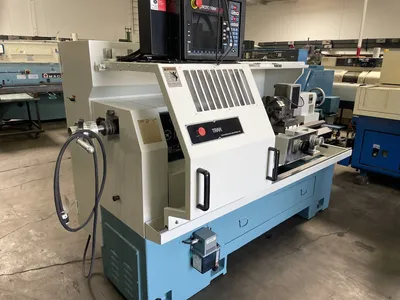

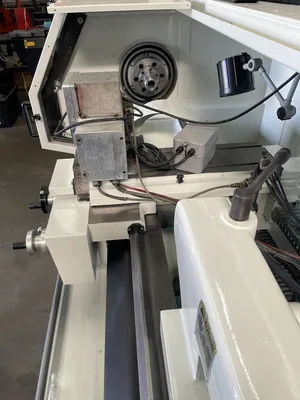

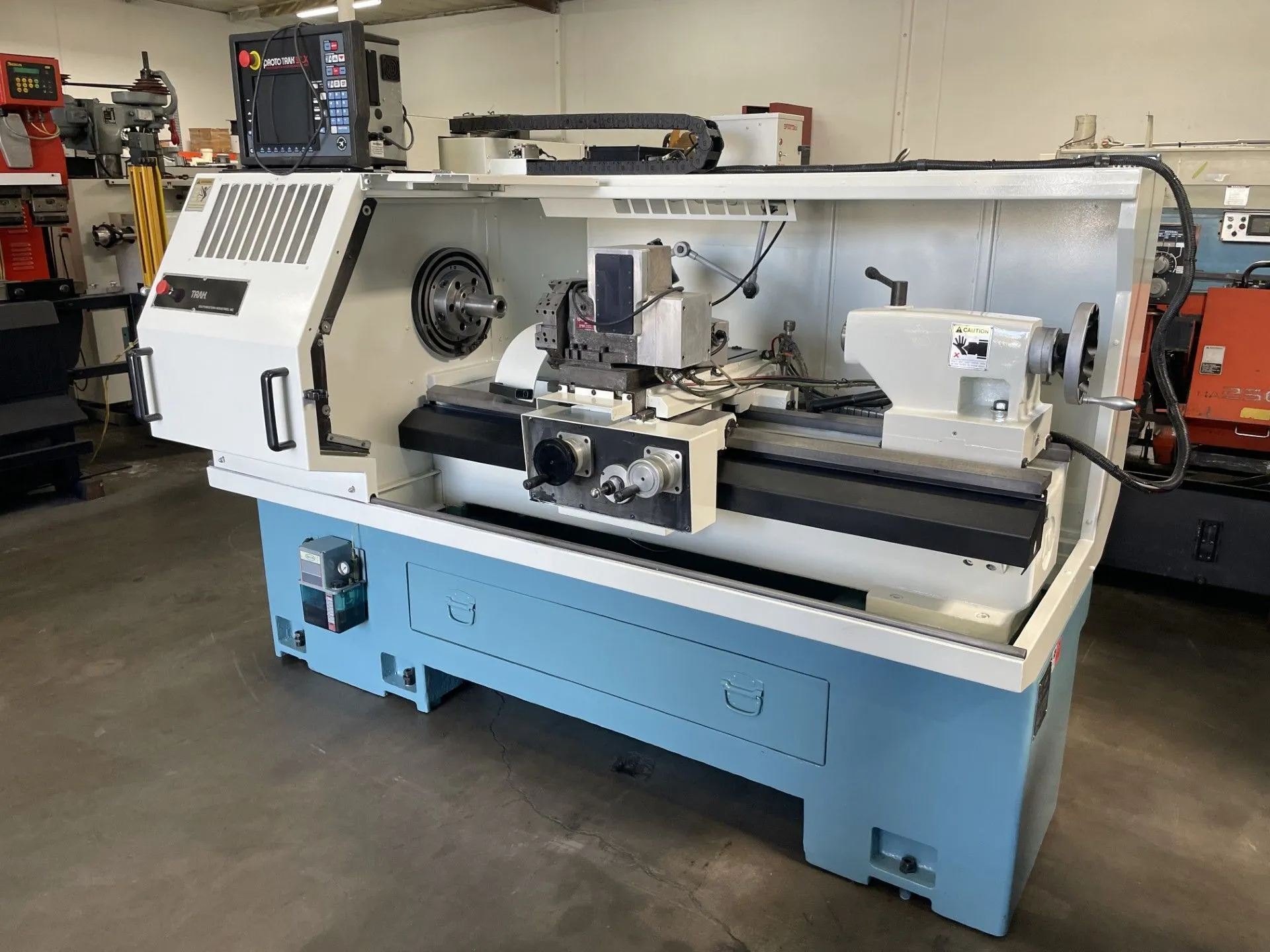

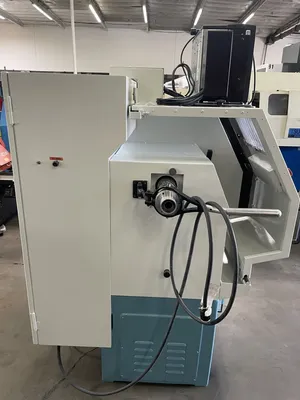

USED 2009 SOUTHWESTERN INDUSTRIES TRAK 1840SX
Overview
Description
Southwestern Industries Trak 1840SX CNC Lathe for sale. Featuring ProtoTrak SLX CNC controls, a Dorian Smartdex 25N turret, swing over bed 18.5", and spindle speed 80-2500 RPM. Perfect for precision metalworking.
Specifications
| Swing | 18.5" | 469.9 mm |
|---|---|---|
| Machining Length | 40.25" | 1,022.3 mm |
| Chuck Size | 10" | 254 mm |
| Turning Dia | 9" | 228.6 mm |
2009 SOUTHWESTERN INDUSTRIES Trak 1840SX CNC Lathe #8171 #1
SPECIFICATIONS:
Distance Between Centers: 40 1/4″
Swing Over Bed: 18 1/2″
Swing Over Saddle Wings: 17″
Swing Over Cross Slide: 9″
Cross Slide Travel: 13″
Spindle Nose: D1-6
Spindle Though Hole: 2.36″
Spindle Taper: MT #6
Spindle Speed: 80-2500 RPM
Spindle Motor: 10 HP
Tailstock Quill Diameter: 2.96″
Tailstock Quill Stroke/Center: MT#5
Rapid Feed Rates:
(X): 75 (Max)
(Z): 150 (Max)
Dimensions: 91″L x 53″W x70″H
Machine Weight: 4,500 lbs
EQUIPPED WITH:
ProtoTrak SLX CNC Controls
Dorian Smartdex 25N Turret
Tailstock
