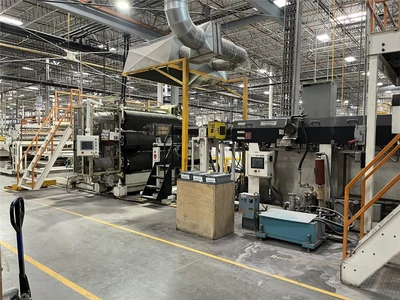

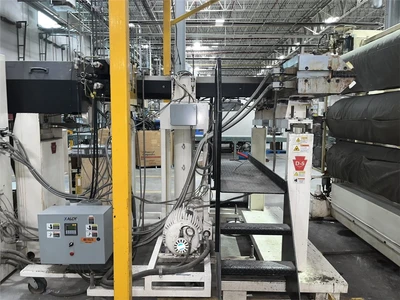

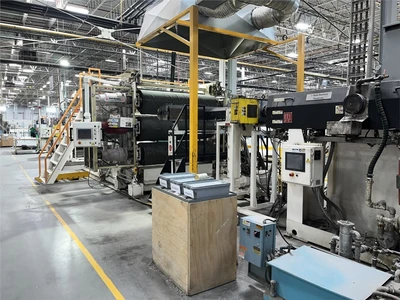

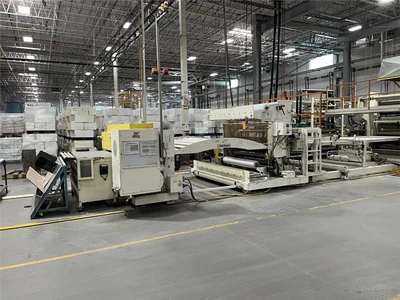

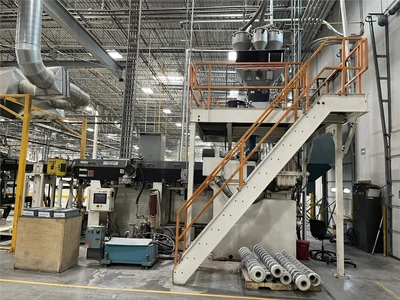

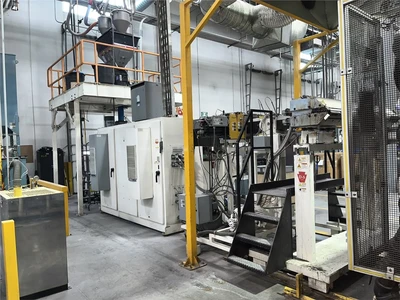

Used 80" Wide Davis Sheet Line With 5" (130MM) 34:1 Extruder, New In 2009

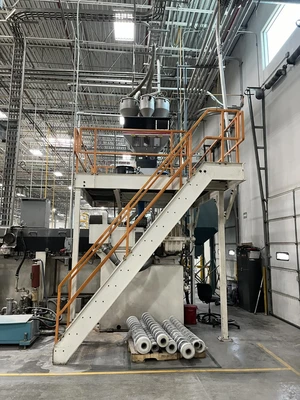

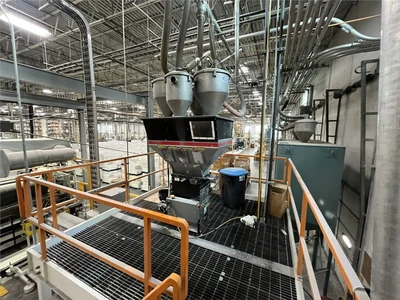

Maguire WSB-940T Gravimetric Blender

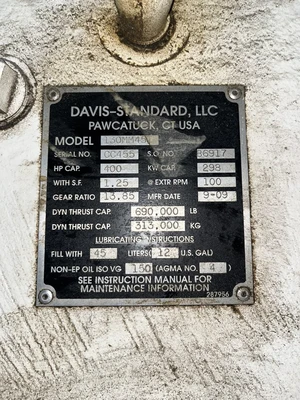

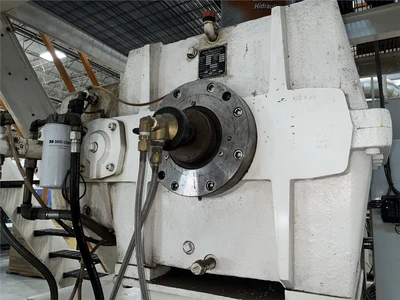

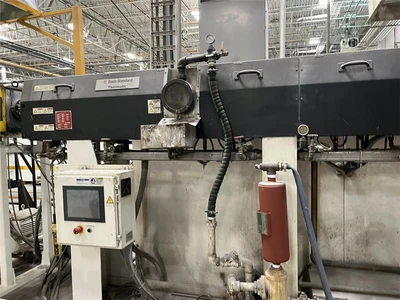

5 Inch (130 mm), 34:1 L/D, Thermatic III, 13.85:1 Gearbox Ratio, Model 130MM45T, Water Cooled, 8 Barrel Zones, Vented Barrel, 300 HP (222 KW) AC Drive System, Yaskawa Drive With Line Choke, S.O. 36917

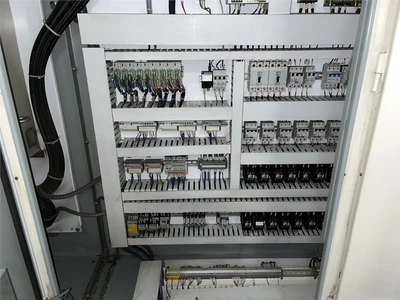

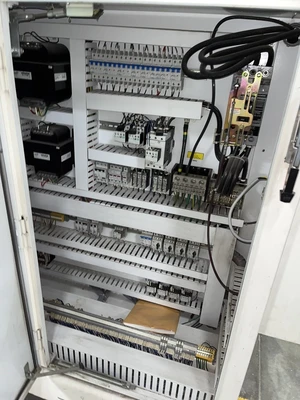

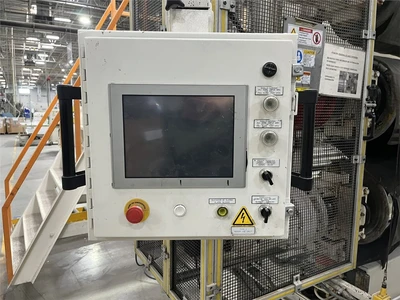

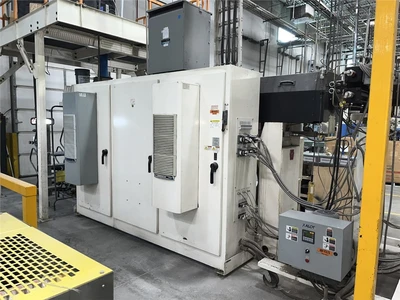

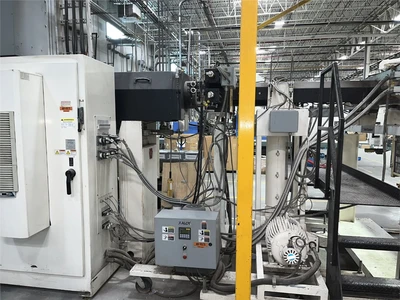

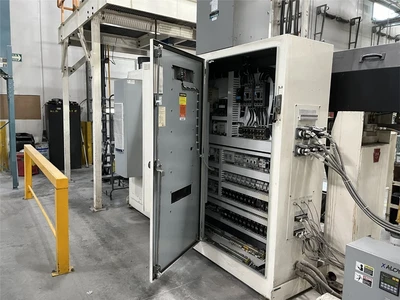

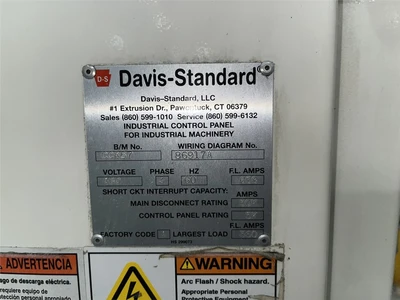

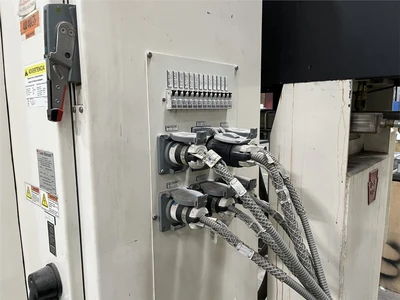

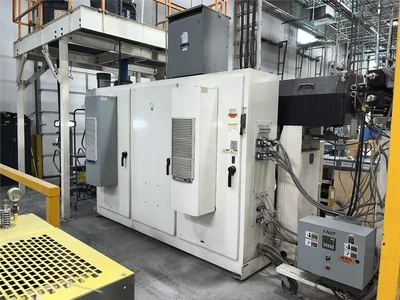

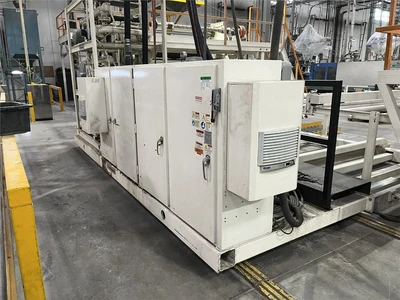

Davis-Standard TPC Control Panel, Pre-wired and Pre-mounted Control and Drive Cabinets, HMI Interface

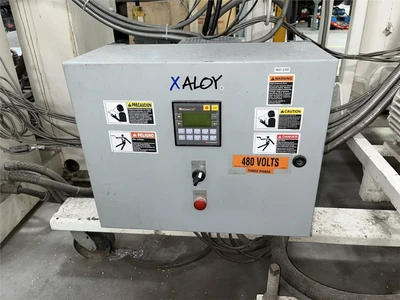

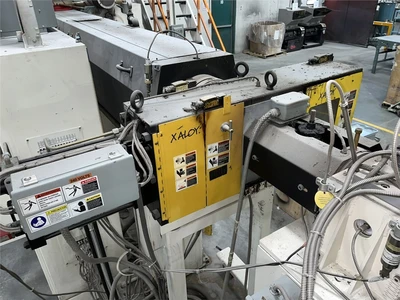

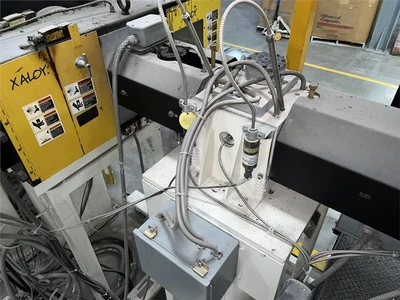

Xaloy Dual Bolt DBC-379 Hydraulic Screen Changer, Support Stand, Hydraulic Power Unit

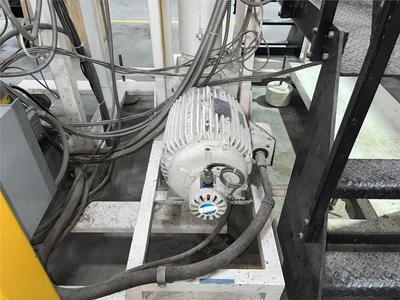

Polymer Melt Pump System, Static Mixer in Downstream Adapter, 20 HP AC Motor

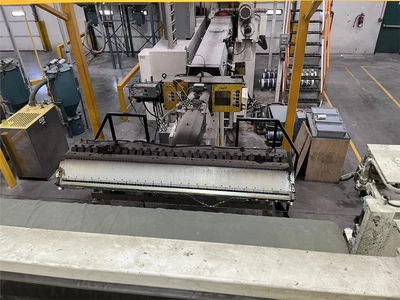

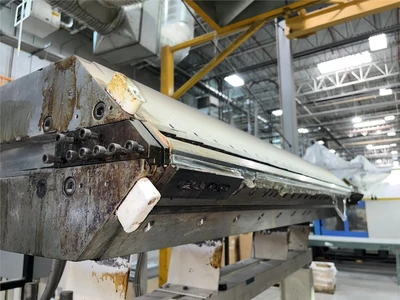

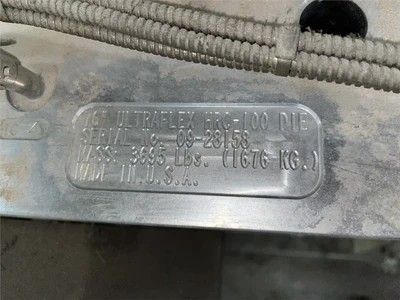

76" (1930 mm) Wide Sheet Die, .10 Die Gap, 0-2.54MM Range, External Side Mount Deckling, Heavy Duty Die Cart with Work Platform, 76" Ultraflex, S/N 09-28158

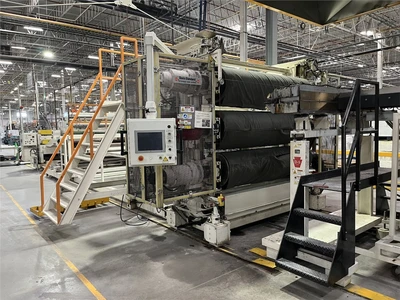

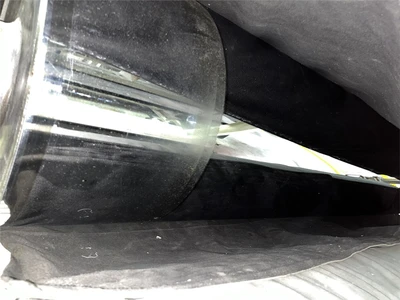

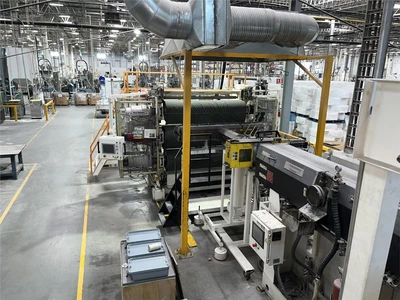

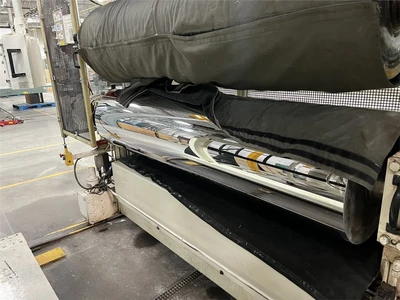

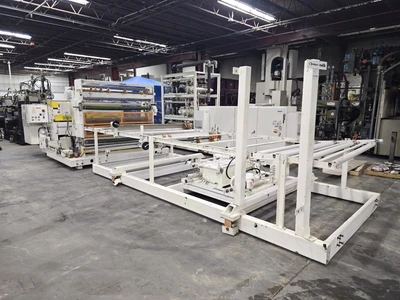

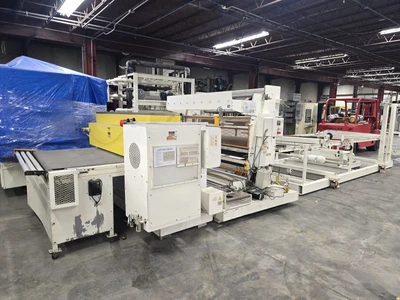

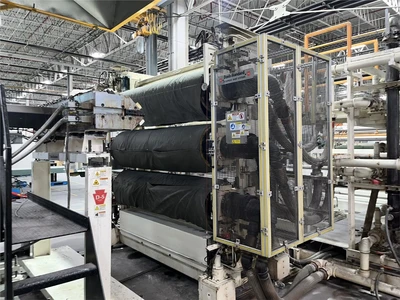

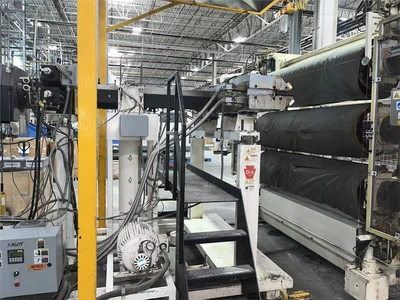

80" Wide Sheet Line, 20" Diameter Rolls, Individual Roll Drive System with Planetary Gear Boxes, Yaskawa F7 Drives, Vertical Downstack Orientation, Hydraulic Roll Pressure

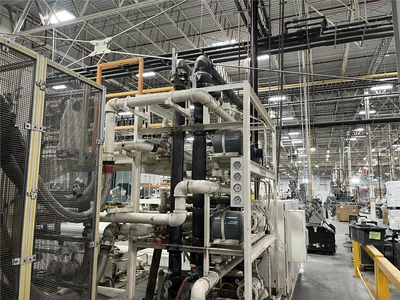

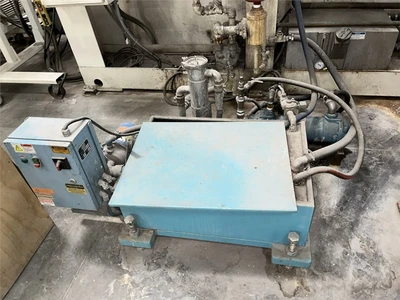

Closed Loop Colling System With (3) 18KW) Heaters, PLC Controlled, XP EXPRESS Series Stand System

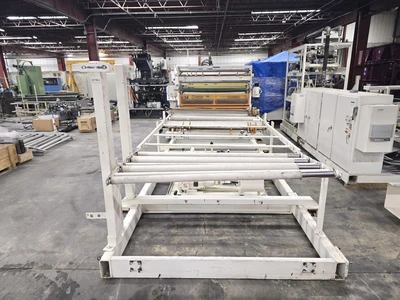

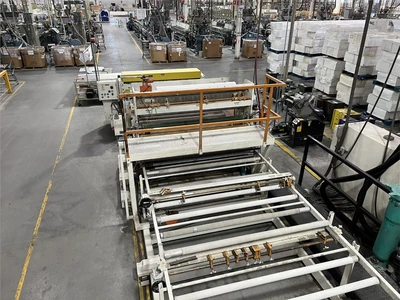

25" Long Conveyor, First 10 Idlers Are Water Cooled

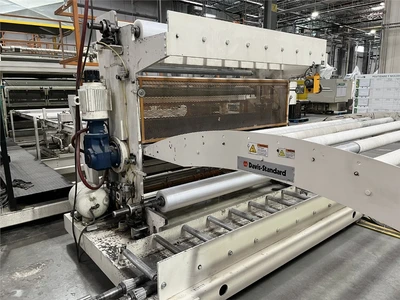

80" Wide X 8" Diameter Rubber Pull Rolls, Pneumatic Pressure, Yaskawa F7 Drives

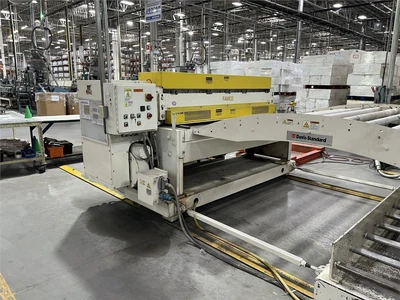

72" Wide Famco Shear, 1/2 Inch ABS, S/N NOS-01106826
Previously Running PS (Polystyrene) Crystal
3 Spare Chrome Rolls And 1 Spare Rubber Pull Roll
Additional Specifications And Photos Available, Contact Your Arlington Salesperson.
480/3/60

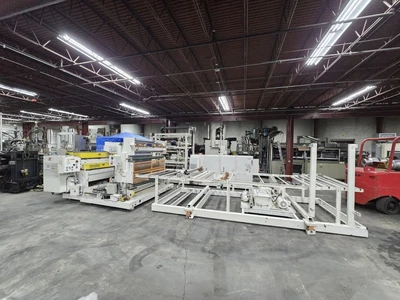

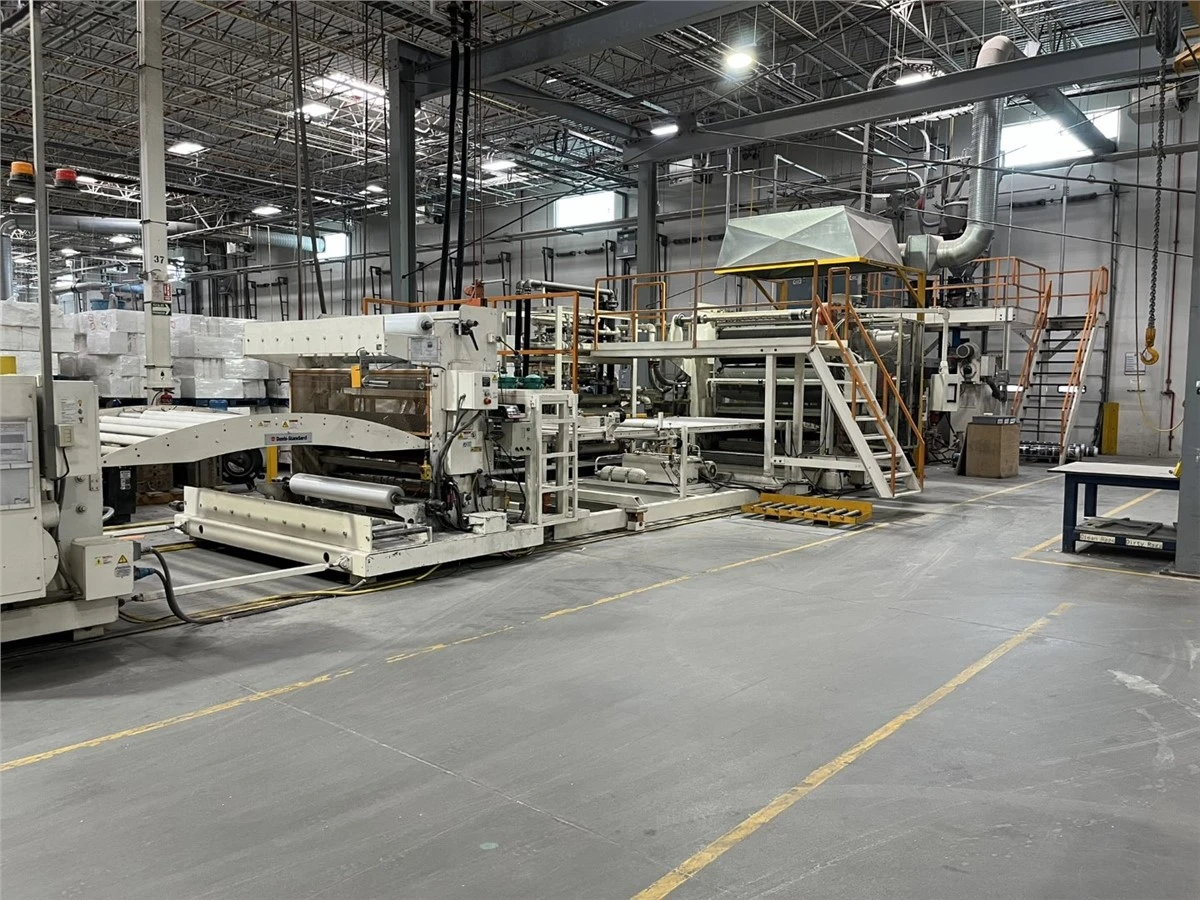

Line No Longer Installed, Located In Arlington Machinery Warehouse In Lake Zurich, IL
This Sheet Line That We Have For Sale Was Previously Running Optical Polystyrene
Brand: Davis Standard
Model: XP EXPRESS
Item: 20796J
