Overview
Type:
Extruders
Manufacturer:
MERRITT
Model:
3.5
Stock #:
19983J
Description

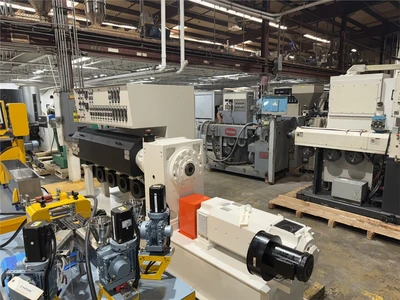

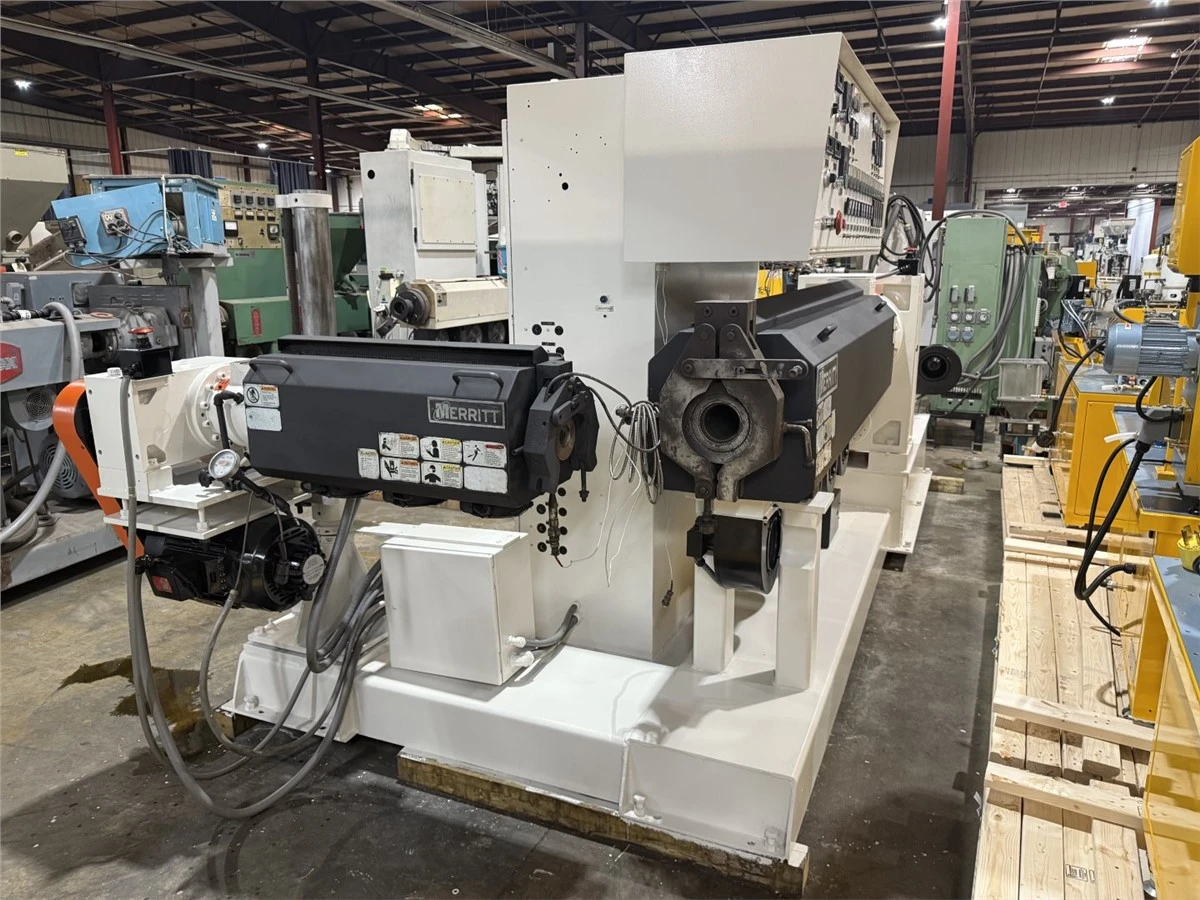

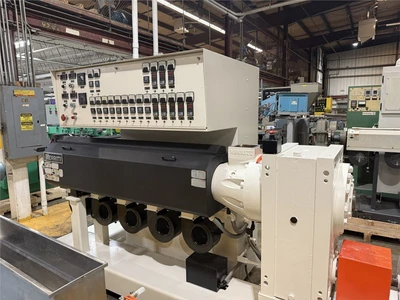

Used 3.5" Merritt Davis Model 3.5 Extruder with 1.5" Merritt Pedestal Extruder
System Consists Of The Following Pieces:

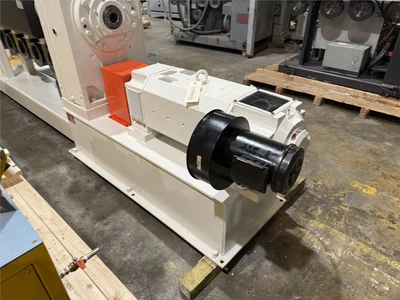

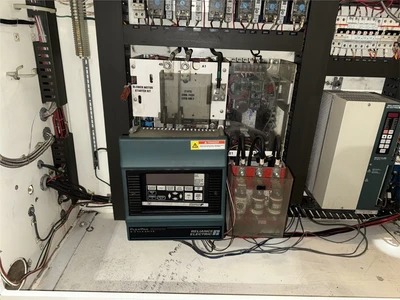

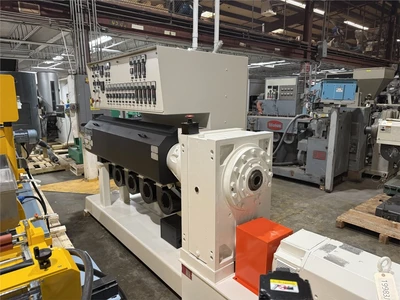

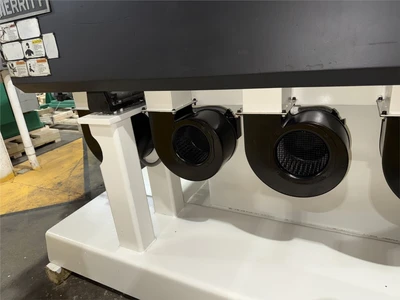

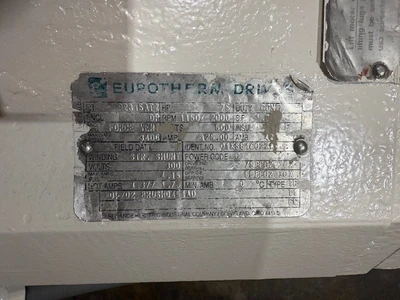

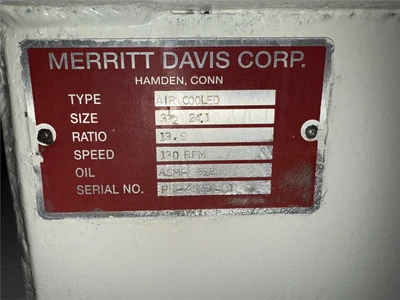

3.5" Merritt Davis Extruder, 24:1 L/D Ratio, Air-Cooled Barrel, 5 Barrel Zones 13.9:1 Gearbox Ratio, Direct Driven, 75 HP Eurotherm DC Motor(2000/1150 RPM) With Reliance FlexPak DC Drive, 130 RPM Screw Speed,  5.5" x 5" Rectangular Feed Throat, Clamp & Screw.

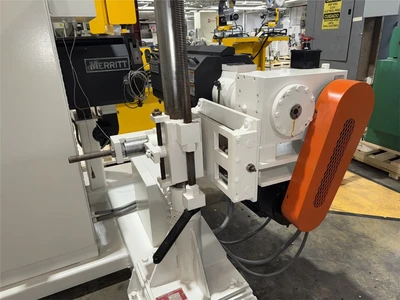

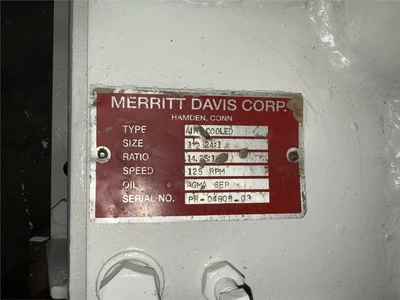

1.5" Merritt Davis Pedestal Extruder, 24: 1 L/D Ratio, Air-Cooled Barrel, 3 Barrel Zones, 14.25:1 Gearbox Ratio, Belt Drive, 10 HP Reliance AC Motor(1765 RPM) With Reliance GV3000/SE AC Inverter Drive, 125 RPM Screw Speed, 1.5" Round Feed Throat, Clamp & Screw

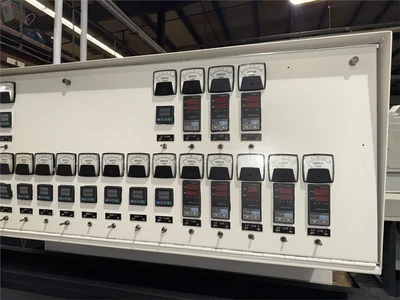

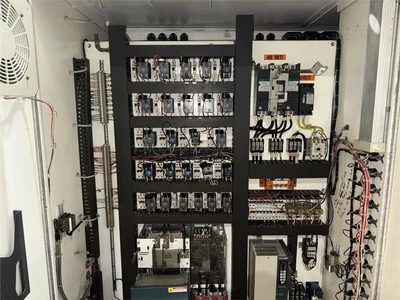

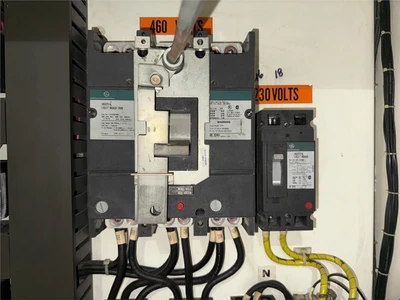

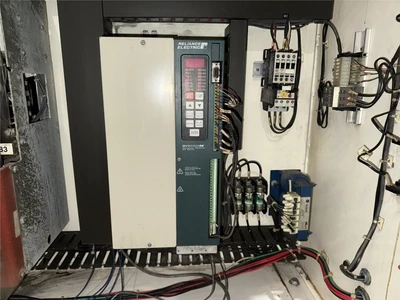

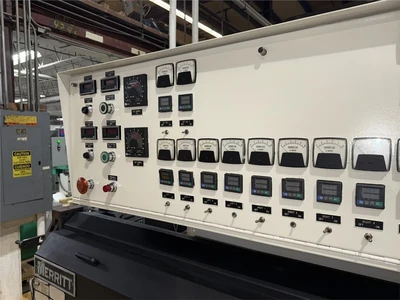

Control Panel With Both Extruder Drives, Solid State Relays, Amp Gauge And RPM Gauge For Each Machine, 12 Downstream Zones, 400 Amp Main Breaker.

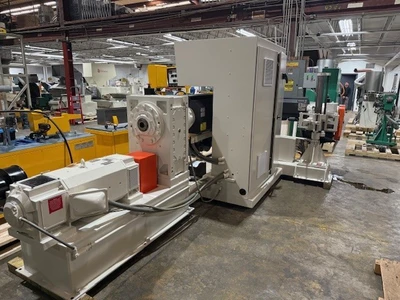

42" Centerline, Entire System Mounted On Unitized Base
Approximate Dimensions: 182" L x 80" W x 80" H

Specifications

Brand: Merritt
Model: 3.5
Item: 19983J
