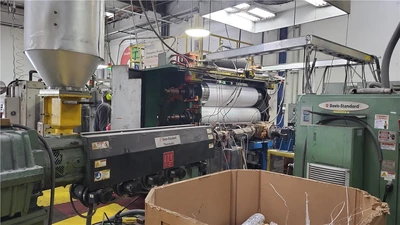

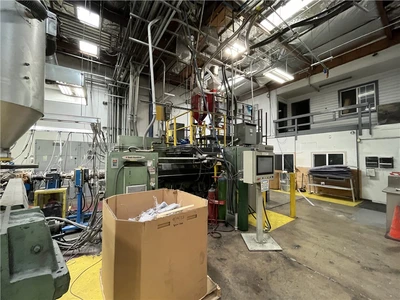

66" Davis Standard/Mega Coex Sheet Line With 4.5" and 2.5" Extruders

66" Wide Sheet Line Consisting Of The Following Pieces:

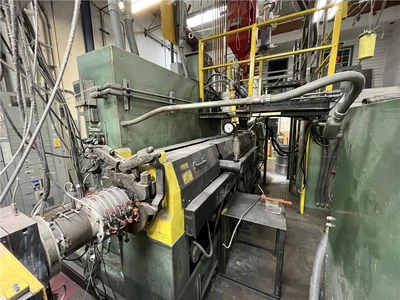

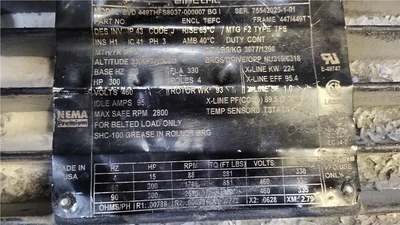

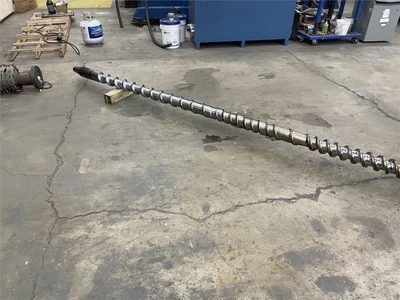

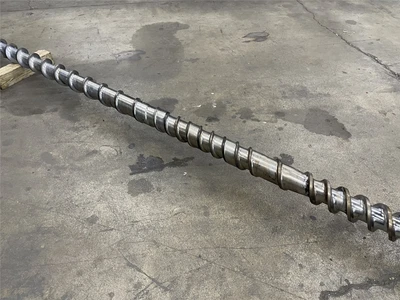

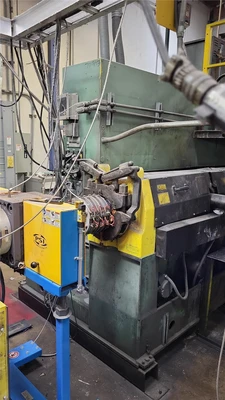

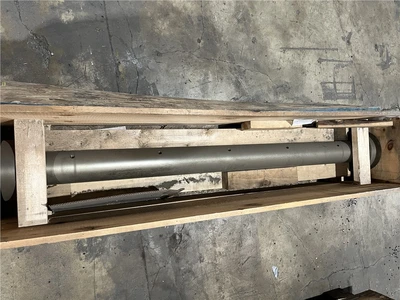

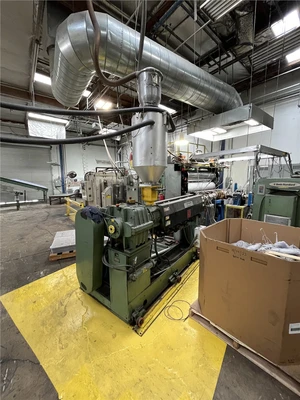

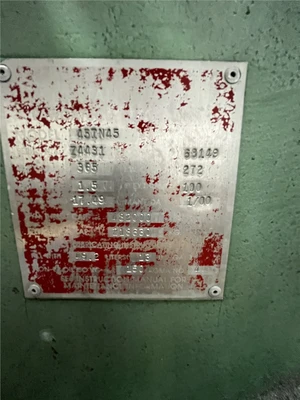

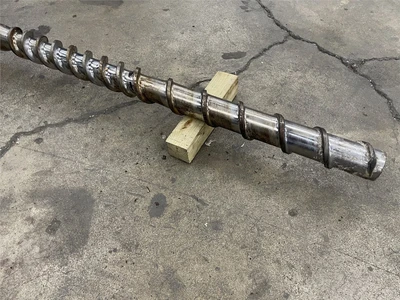

4.5" Davis Standard 45IN45 Extruder, 32:1 L/D Ratio, 17.49:1 Gearbox Ratio, 300 HP 1788 RPM Marathon AC Inverter Duty Motor(NEW IN 2016) And Mitsubishi Drive(NEW IN 2016), Vented Barrel With 5.36 HP Vacuum Pump, 6 Zone Air-Cooled Barrel, 10 Die Zones, 600 AMP Disconnect, 460/3/60, Barrel Clamp, Spare 2 Stage Screw, ABB Microprocessor, Bunting Magnet, NEW Feed Throat, No Hopper
4.5" PSI MSC-45, Screen Changer With Accumulator Hydraulic Power Pack
Xaloy MSDP 275 Melt Pump Drive Through 22.41 SEW-Eurodrive Gearbox By Emerson 20 HP AC Inverter Duty Motor, S/N 2727187, 460/3/60

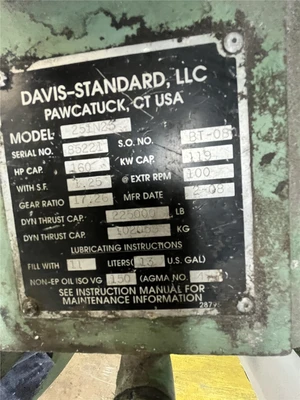

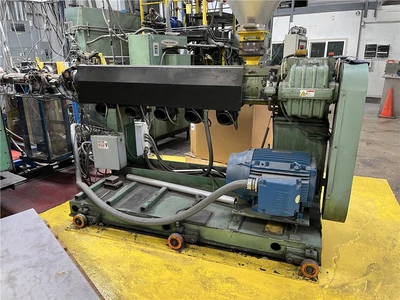

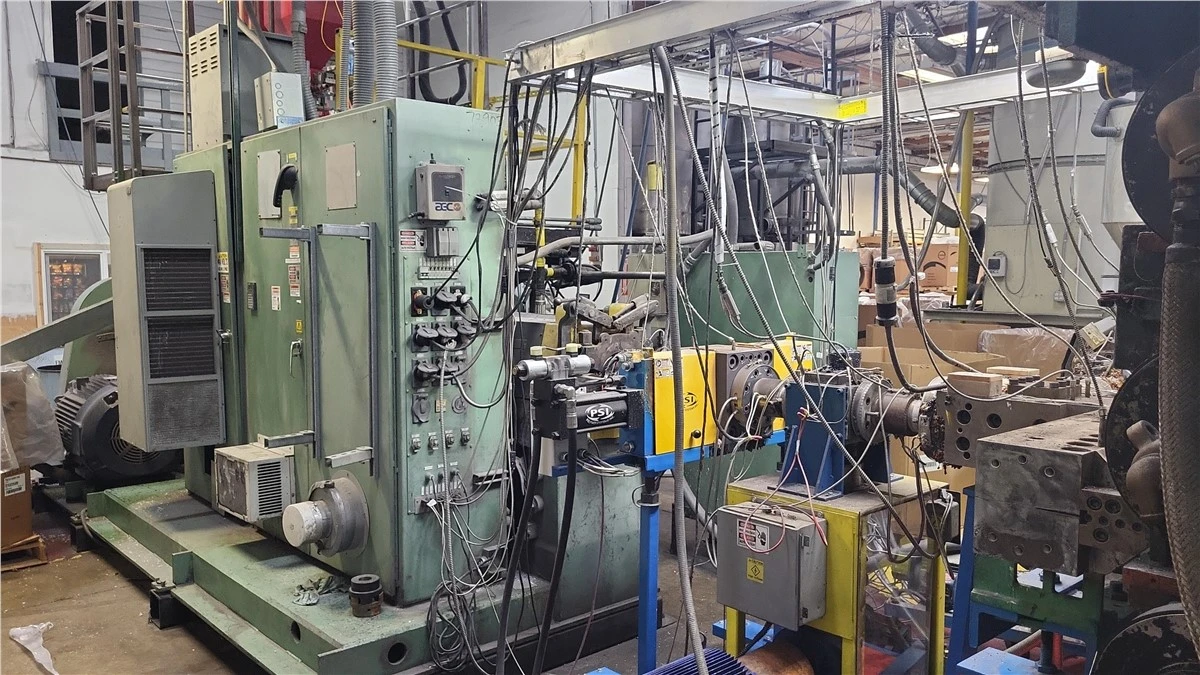

2.5" Davis Standard 25IN25 Extruder, 30:1 L/D, 17.26:1 Gearbox Ratio, 75 HP WEG AC Inverter Duty Motor And Yaskawa F7 Drive, 5 Barrel Zones, 5 Die Zones, 125 AMP Disconnect, 460/3/60, New In 2008, Allen Bradley PLC Control, Manual Screen Changer
Xaloy MSDP 183 Melt Pump Drive Through 30.22 SEW-Eurodrive Gearbox By 5 HP AC Motor, S/N MS1818507, 460/3/60
Co-Ex Die Block For 4.5" and 2.5" Extruder

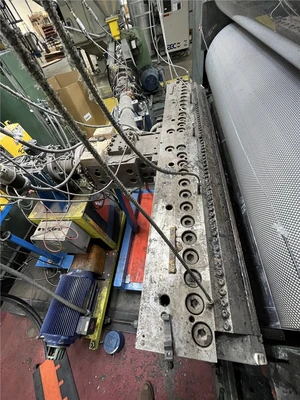

66" Wide EDI Ultraflex H100 Die, S/N 14-34250-M Mounted On Davis Standard Die Cart

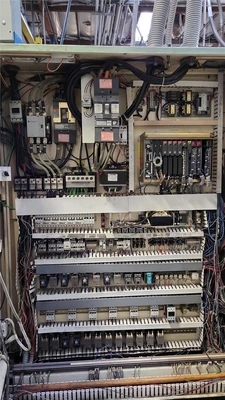

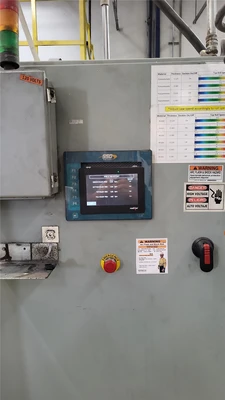

66" Wide X 16" Diameter 3 Roll Sheet Stack, Upstack Orientation, Rolls Are Independently Driven Through Belts And Boston Gear Gearboxes By 2 HP Marathon Black Max Motors, Chrome Top Roll, Middle Embossing Rolls, Chrome Lower Roll, Stack Rolls And Pull Rolls Driven By Parker AC890 Drives, SSD Control Panel For Sheet Line, Oil Heated/Cooled Rolls, 460/3/60
Approximately 18' Long Cooling Conveyor
66" W x 7" Diameter Rubber Pull Rolls
84" Wide Cutoff Saw, 3 HP Saw Motor, 3/4 HP Traverse Motor

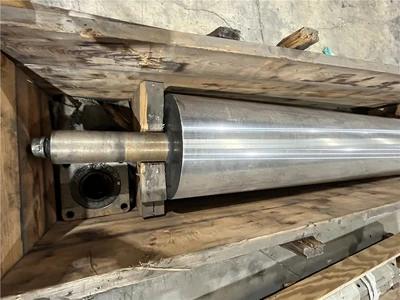

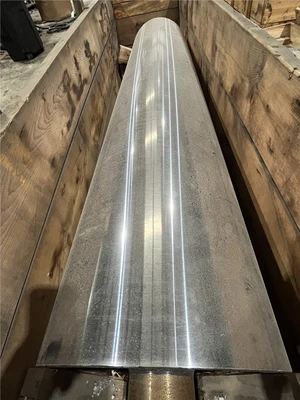

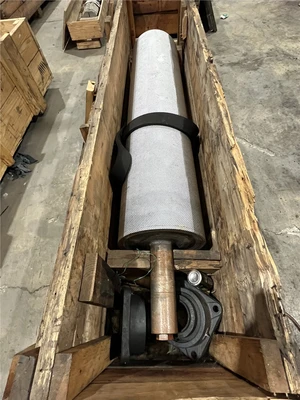

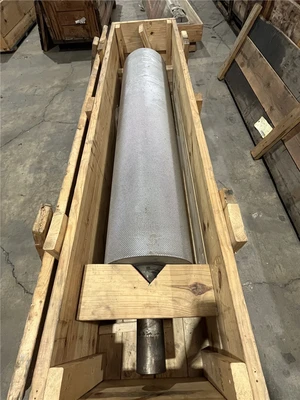

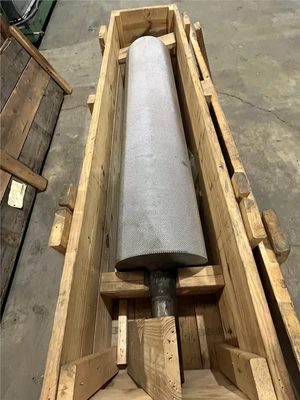

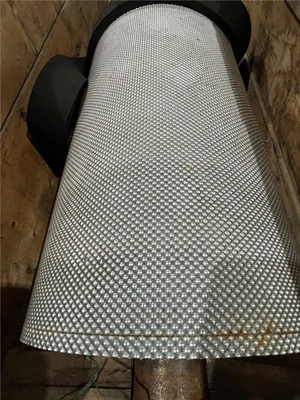

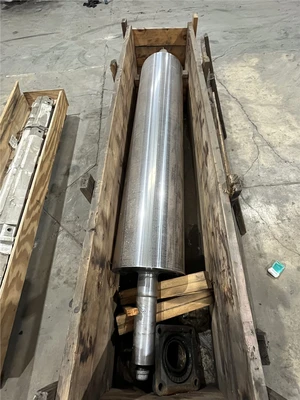

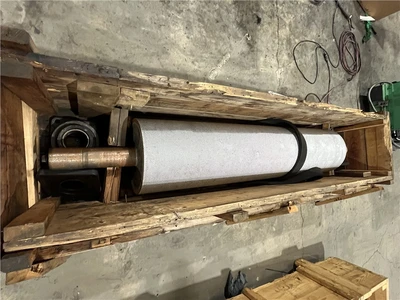

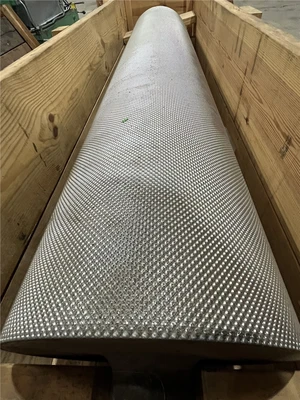

6 Total Rolls, Two Spare Embossing Rolls And One Spare Chrome Roll In Crates

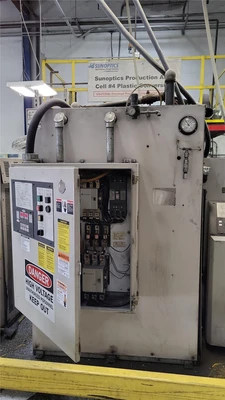

3 Sterling/AEC Hot Oil Heaters For Roll Temperature, 24 KW TCOU-3, 36 KW TCOU-3, 75 KW M2B6017, 460/3/60
Previously Running Acrylic And Polycarbonate .120"-.165" Thick

Brand: Davis Standard
Item: 19662A
