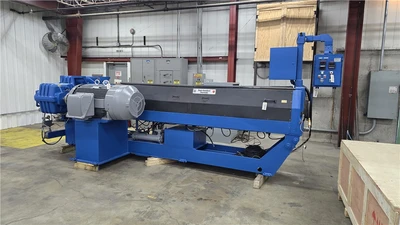

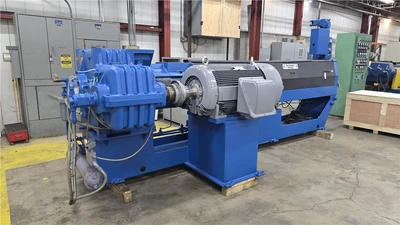

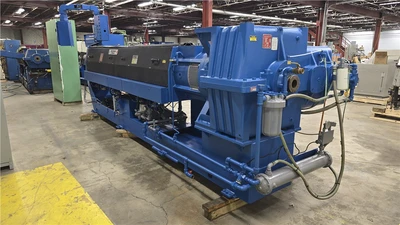

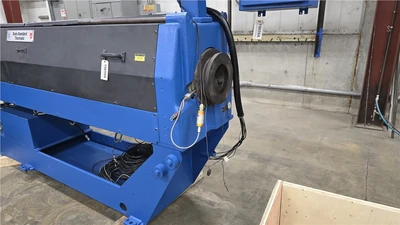

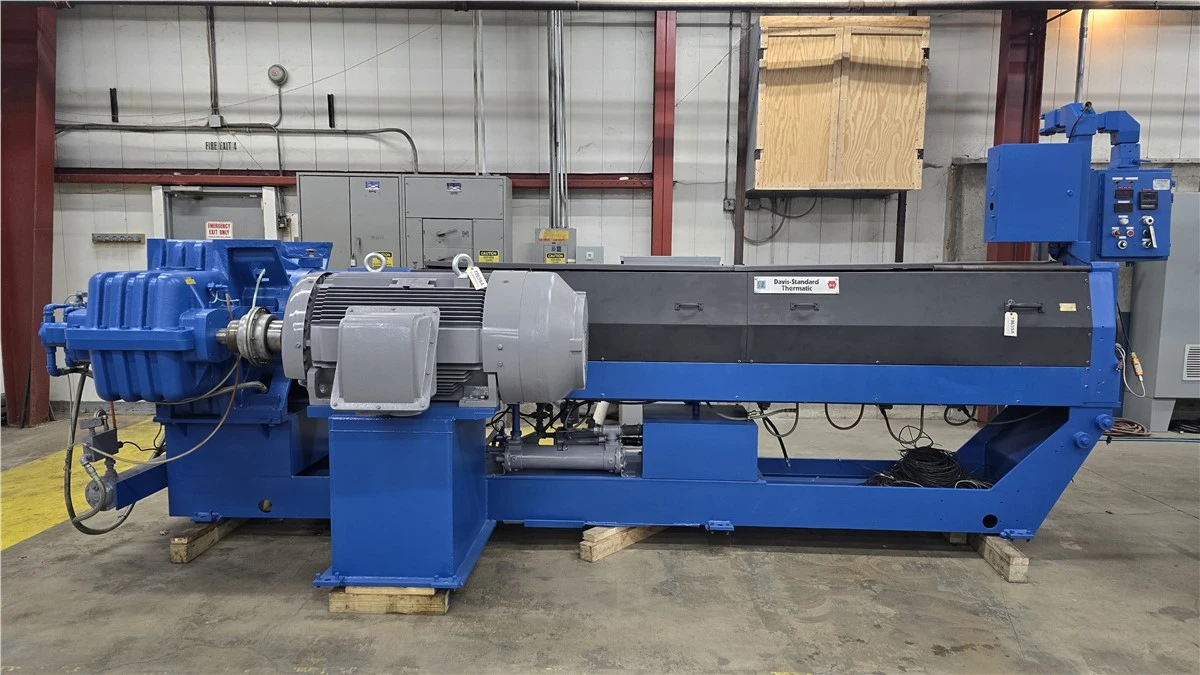

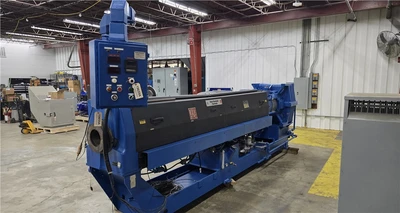

Reconditioned 6" Davis Standard Single Screw Extruder, Model Thermatic 60IN60, 24:1 L/D, 400hp, New in 2004

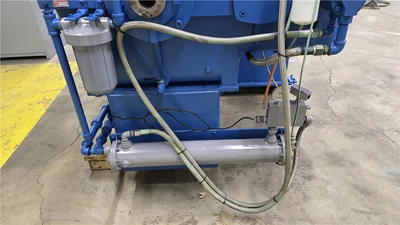

Water Cooled Barrel, Water Reservoir with Recirculation Pump and Heat Exchanger

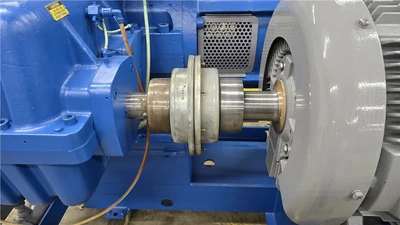

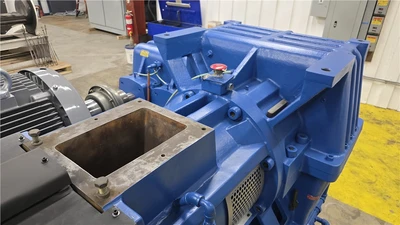

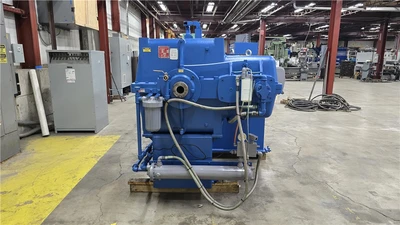

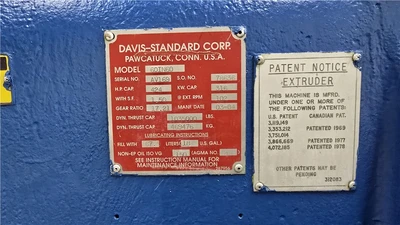

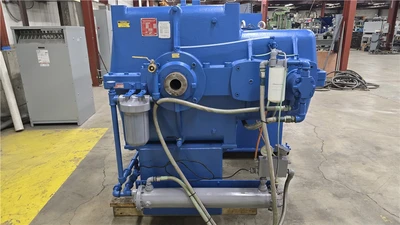

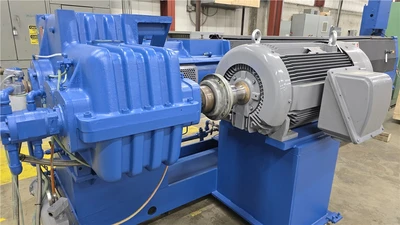

17.21 Gearbox Ratio, 424 hp Capacity with 1.5 Service Factor

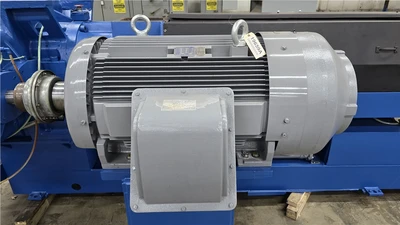

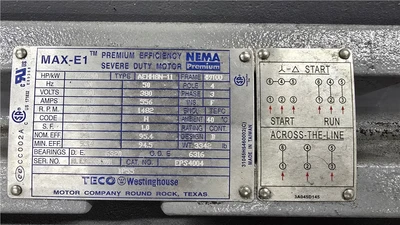

NEW 400hp Teco AC Motor, EPS4004, 1800RPM, 449TX Frame

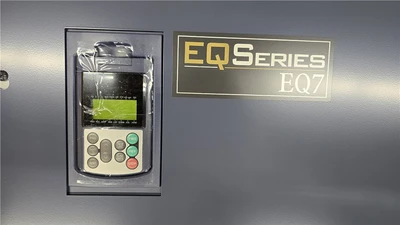

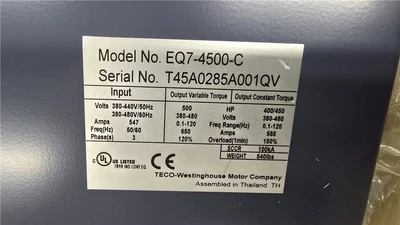

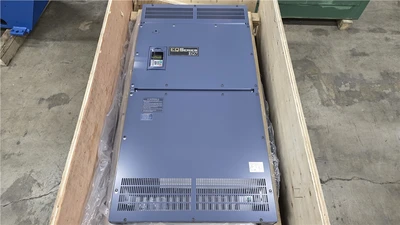

New TECO AC Drive Model EQ7-4450-C
3 Year Manufactures Warrantee on Motor/Drive

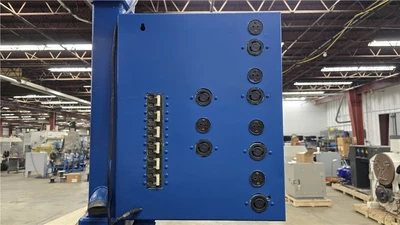

5 Barrel Zones/6 Die Zones with New Novus Temp Controllers & Amp Gauges

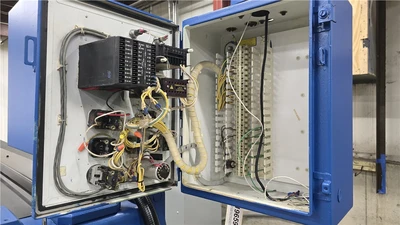

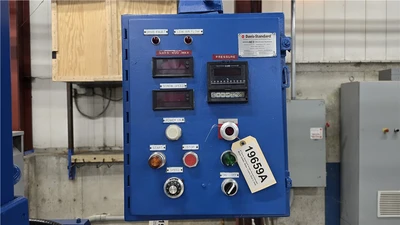

Swing Arm controller with Speed Pod, Pressure & Screw Speed Gauges

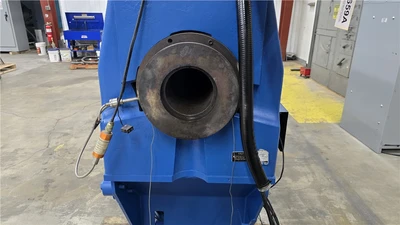

42" Centerline
Screw and Barrel in Serviceable Tolerances

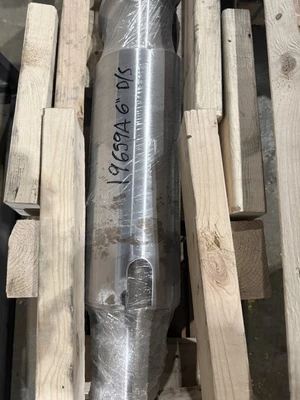

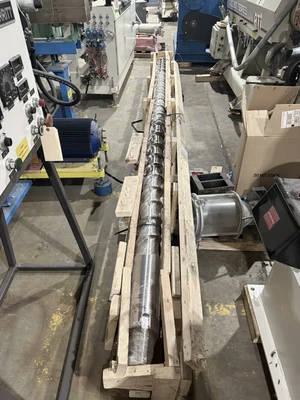

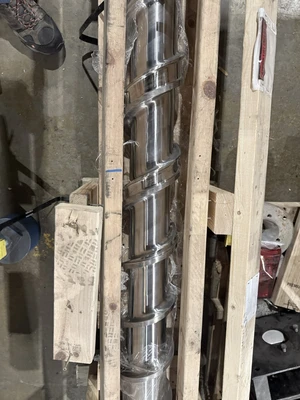

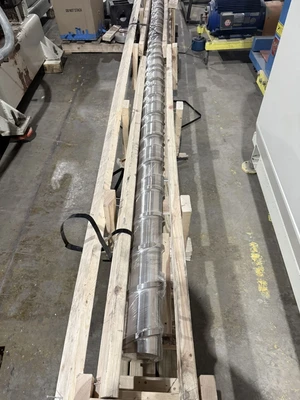

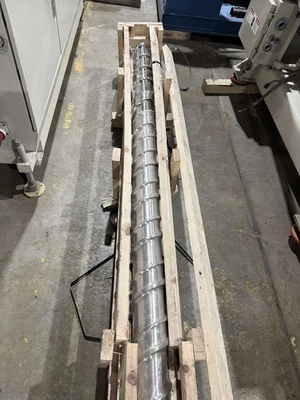

Thermatic Clamp & Barrier Flight Screw

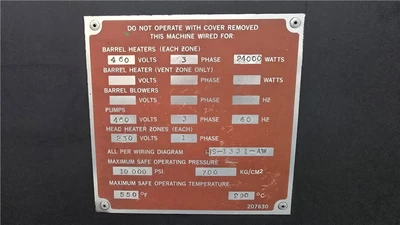

Heater Bands Electrically Ok

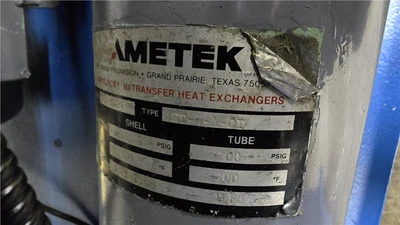

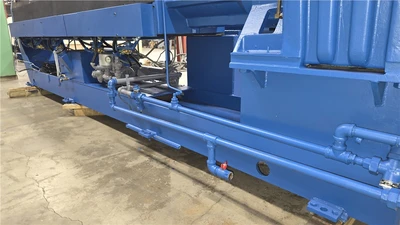

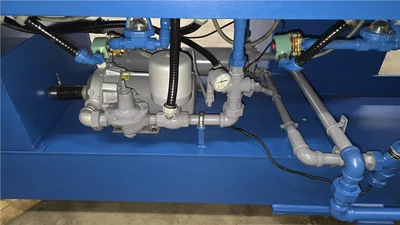

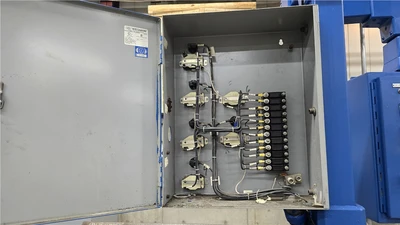

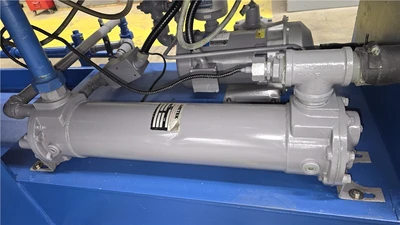

Barrel Plumbing/Heat Exchangers Checked for Flow - 5 Brand New Redhat Solenoid Valves
6 Weeks Leadtime From Order
Approx. Extruder Dimensions: 216" L x 80" W x 90" H

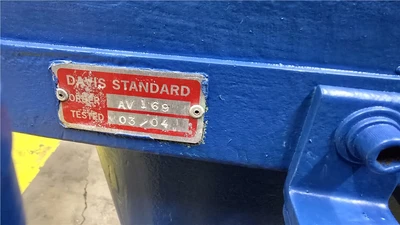

Brand: Davis Standard
Model: 60IN60
Item: 19659A
