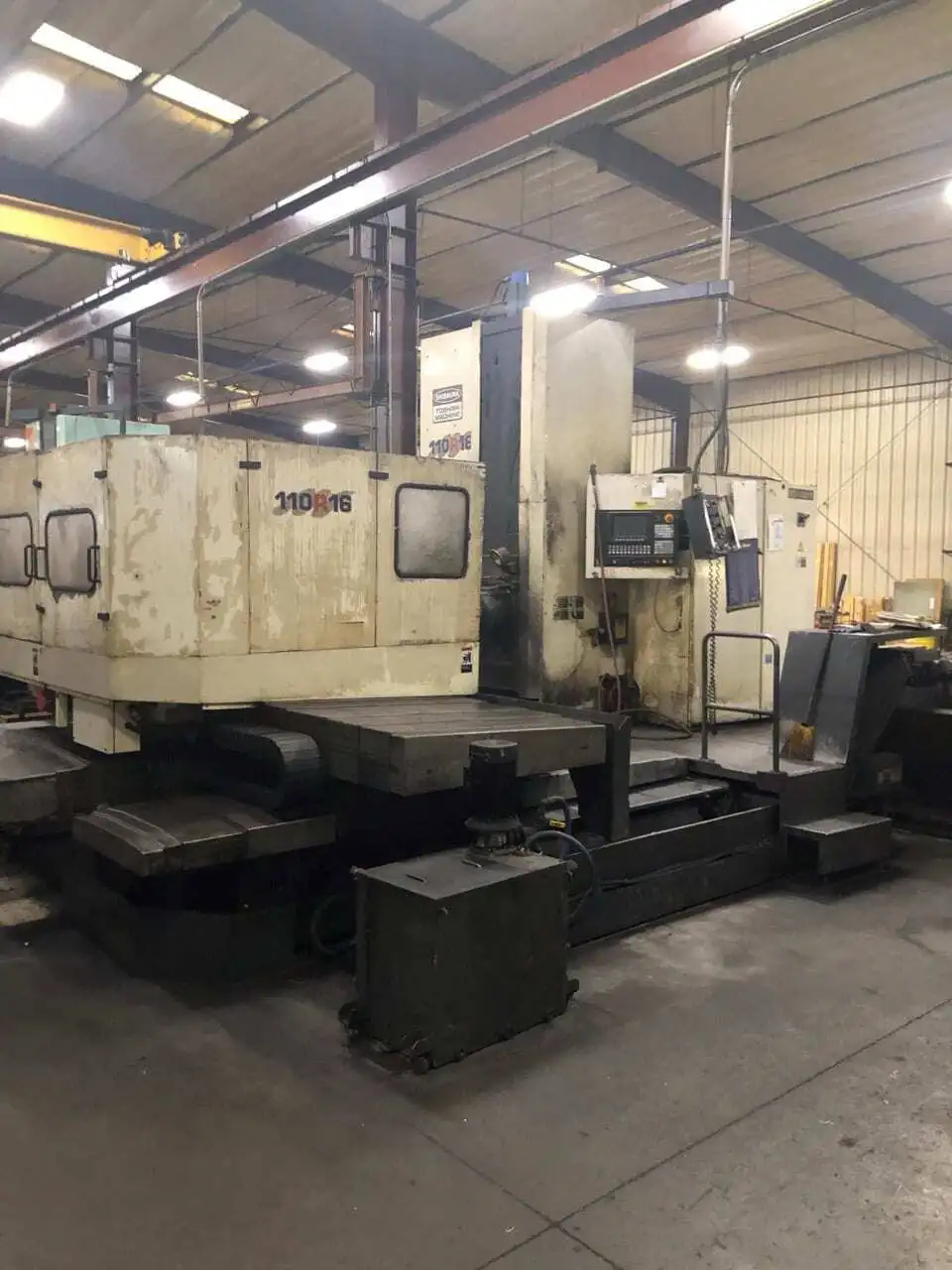

1996 Toshiba BTD-110R16 Horizontal Boring Mill with Tosnuc 888 CNC Control, Full B-Axis Rotary Table, 38 ATC, Marposs Probe, and Chip Conveyor.
| Spindle Size | 4.3" | 109.22 mm |
| X-Horiz Tvl of Table | 78.7" | 1,999 mm |
| Y-Vert Tvl of Head | 59" | 1,498.6 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 55" | 1,397 mm |
| Spindle Tvl. | 19.7" | 500.38 mm |
| Control | CNC (Tosnuc 888) | CNC (Tosnuc 888) |
| Dimensions | 202" x 242" x 157" | 202" x 242" x 157" |
| Weight | 61,600 LBS | 61,600 LBS |
Spindle Diameter.....................4.3"
Spindle Motor........................30 HP
Spindle Speeds.......................2500 RPM
Spindle Taper........................50
X-Axis (Cross) Travel................78.74"
Y-Axis (Vertical) Travel.............59"
Z-Axis (Spindle) Travel..............19.71"
W-Axis (Saddle) Travel...............57.08"
Table Size...........................55" x 63"
Table Indexing.......................0.0001 Degree
Table Load Capacity..................13,860 LBS
Number Tools.........................38 Positions
Floor Space..........................202" x 242"
Machine Height.......................157"
Machine Weight.......................61,600 LBS
Tosnuc 888 CNC Control
Full B-Axis Rotary Table
38 Position ATC
Marposs Probing System
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
