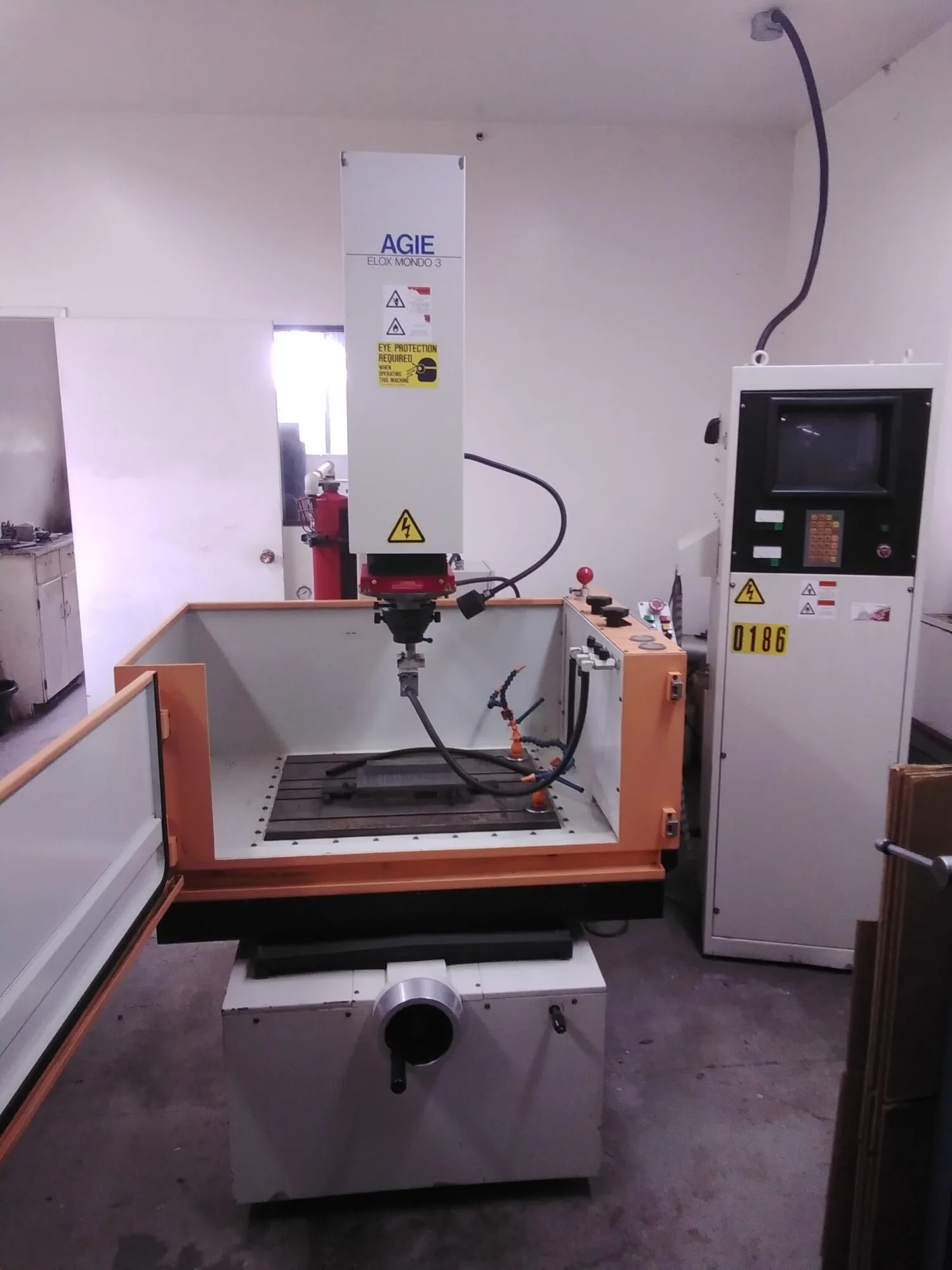

Agie Elox Mondo 3 EDM 50 Amps

220V
3 Phase
Travels:
X Axis: 14″
Y Axis: 12″
Z Axis: 9.8″
Throat Clearance: 20.4″
Max Table Workload: 1000 lbs
Max Ram Workload: 150 lbs
Worktable Size: 20 x 25.6″
Work Tank Size: 39″ x 27″ x 16″
Platen Size: 7.8 x 7.8″
Table Slots: 4 for M8 T-bolt per ASA B5.1-1975 on 5″ centers
Table Keyway (depth x width) 1/4″ x 1/2″  centered in table parallel to X axis
Platen Slots: 3 for M8 T-bolt ASA B5.1-1975 on 3″ centers
Platen to Table Clearance:(at upper limits switch)  22″
Machine Tool Dimensions: 65″ x 45″ x 85″

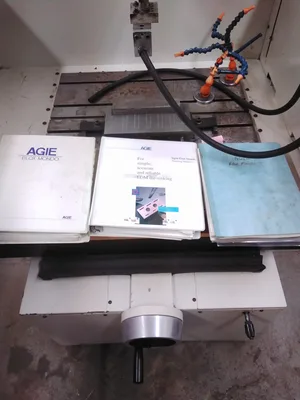

Comes with Manuals
Low Use
