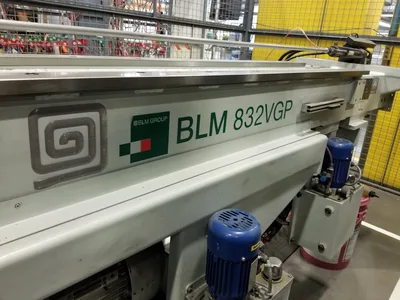

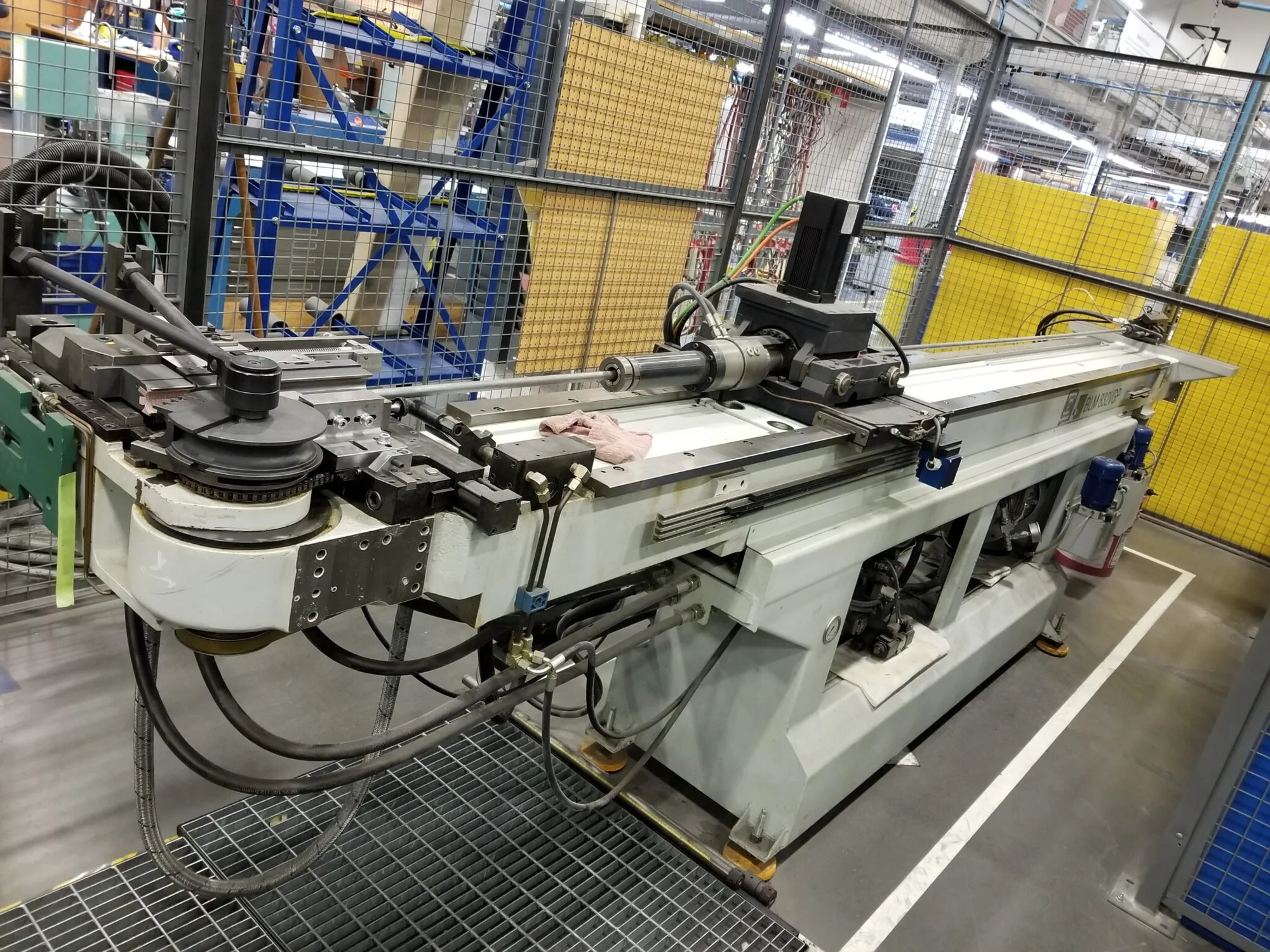

BLM 832S-VGP Precision Pipe Bender

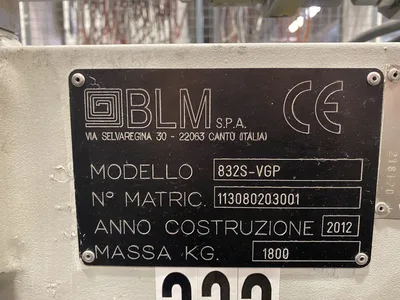

Serial No. 113080203001
Manufacture Year 2012
480 V
3 Phase
60 Hz
22 A

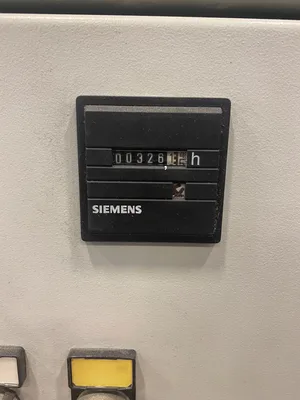

ONLY 326 hours of operation
Maximum bend capacity: R=450N/mm_
Round Tube: min 4 mm-0.157″, max 30 x 2mm, 1.181″ x 0.078″
Square Tube: 25 x 25 x 1.2mm, 1″ x 1″ x 0.047″
Rectangular Tube: 30 x 20 x 2mm, 1.181″ x 0.787″ x 0.078″
Oval Tube: 30 x 20 x 2mm, 1.181″ x 0.787″ x 0.078″
Bending radius (increasable/reducible on request): min 20mm-0.787″, max 170mm-6.692″
Usable length (increasable/reducible on request): 3000mm-9.842 ft
Max tube length from tool post to collet: 3000mm-9.842 ft
Max tube length from tool post to mandrel retraction unit: 4000mm-13.123 ft
Positioning speed = X Axis: 900mm/sec
Bend Arm speed = Y Axis: 200/sec
Bend arm return speed = Y Axis: 320/sec
Rotational speed = Z Axis: 360/sec
Max installed power: 13 kW
Hydraulic pressure: max 120 bar
Noise level max 75 db
Axis accuracy: X=+/- 0.1mm =0.004″, Y=+/-0.1, Z= +/- 0.1
Average bends/hr: 800/1200
Machine Weight (Net): 1500 kg=3307 lbs
CNC Net Weight: 150 kg = 8377 lbs
Machine Packing Dimensions: 5150 x 1100 x 1450mm, 16.9 x 3.6 x 4.7 ft
CNC Packing Dimensions: 860 x 750 x 1980mm, 2.8 x 2.4 x 6.5 ft
