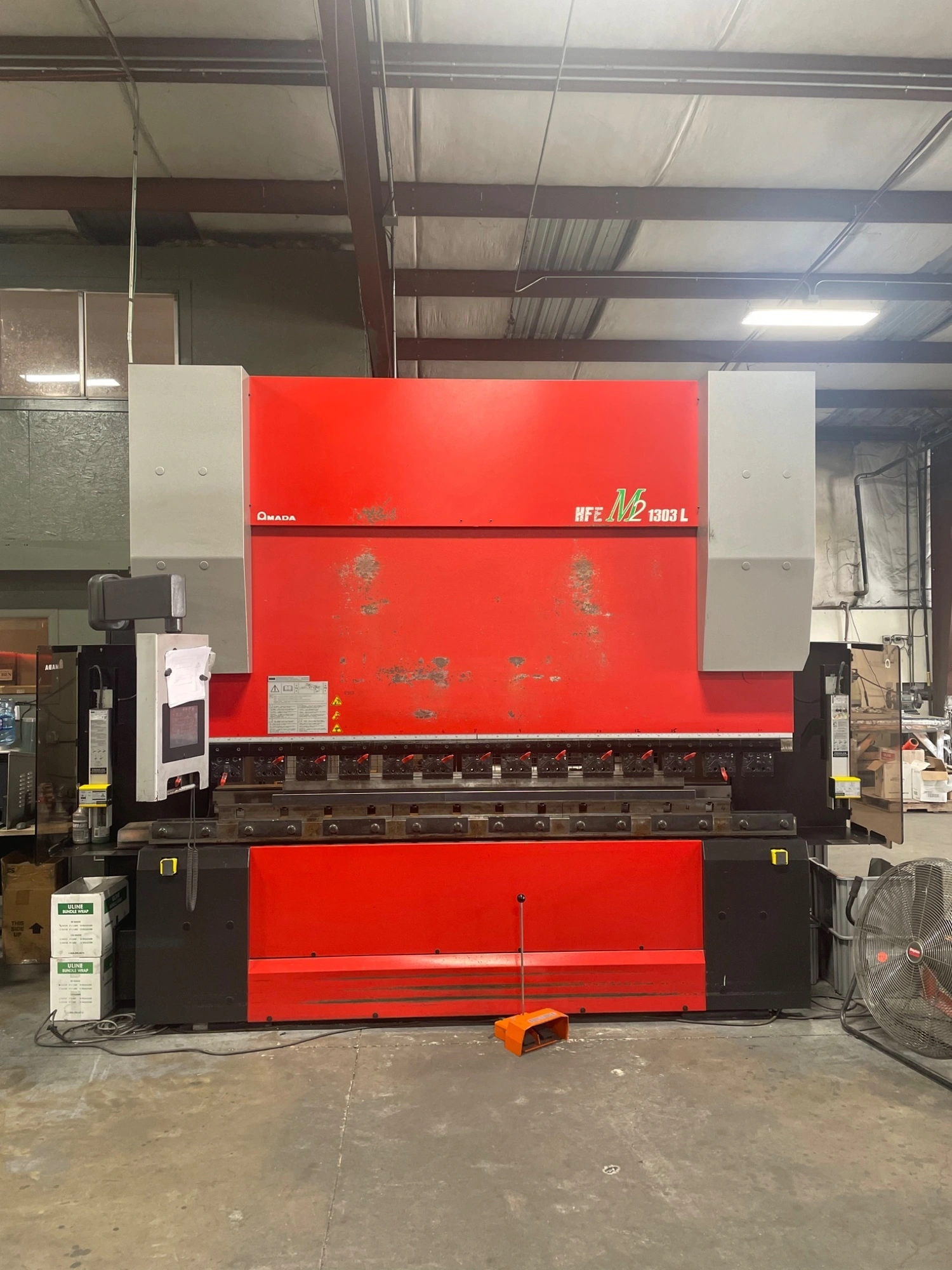

2012 Amada HFE-M2-1303 Press Brake: 146-ton capacity, 123" bending length, 8 programmable axes. Features Amada AB Pad Control, 5-axis back gauge, and electronic foot pedal. Dimensions: 178.5"L x 103.2"W x 111"H. Approx. weight: 17,968 lbs.
| Tonnage | 146 T | 132.449 t |
| Type | 'HYD' | 'HYD' |
| Overall Length | 123" | 3.1 m |
| Between Housings | 106" | 2.7 m |
| Stroke | 7.8" | 198.12 mm |
| # Axis | 8 | 8 |
| Control | CNC (CNC (AMADA AB PAD CONTROL)) | CNC (CNC (AMADA AB PAD CONTROL)) |
| Weight | 30668.5 | 30668.5 |
CAPACITY: 146 TON
OVERALL BENDING LENGTH: 123"
DIST. BTWN. END FRAMES: 106"
WORKING HEIGHT OF BED: 38"
LENGTH OF STROKE: 7.8"
OPEN HEIGHT: 18.5"
THROAT DEPTH: 16.5"
NO. OF PROGRAMMABLE AXES: 8
SPEEDS:
** FAST APPROACH: 3.94 IPS
** SLOW BEND: 0.39 IPS
** RETURN: 3.94" IPS
OVERALL DIMENSIONS: 178.5"(L) x 103.2"(W) x 111"(H)
APPROX. MACHINE WEIGHT: 17,968 LBS
AMADA AB PAD CONTROL
5-AXIS BACK GAUGE (X1, X2, R, Z1, Z2)
ELECTRONIC FOOT PEDAL
QUICK CLAMP PUNCH HOLDERS
DIE HOLDERS
