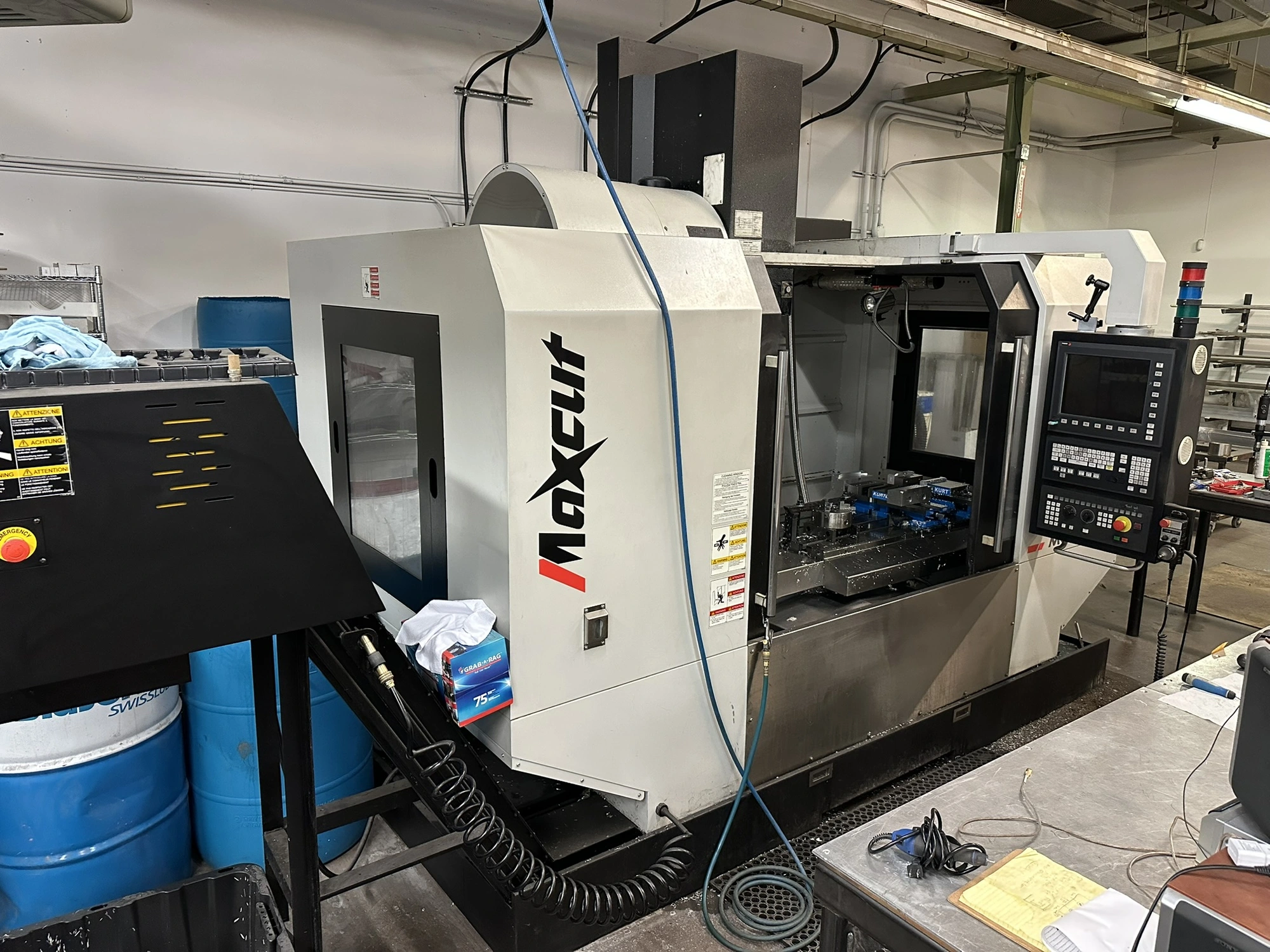

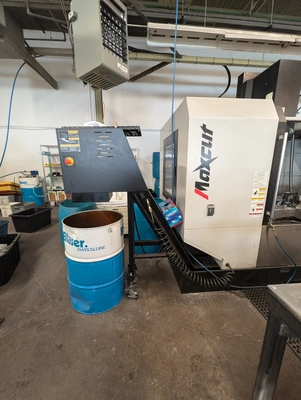

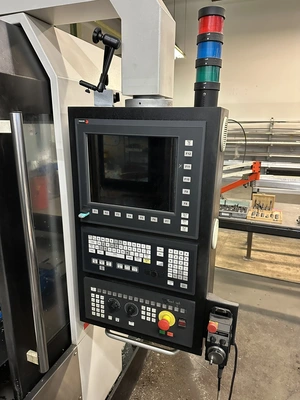

Maxcut VM-1000 CNC Mill

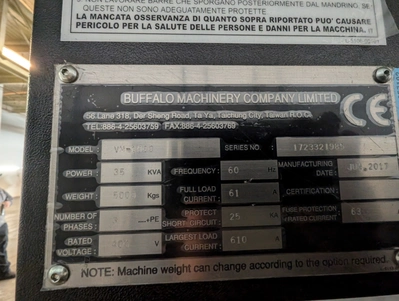

400 V (Transformer can be made available for any voltage)
Full Load Current: 61 A
3 Phase
Mfg Year: 2017
Table Height: 840 mm (33 “)
Table Loading Capacity: 800 kgs  (1760 lbs)
X Travel: 1120 mm (44″
Y-Travel:635 mm (25″)
Z-Travel: 602 mm (23.7″)
Center to Column: 675 mm (26.58″)
Nose to Table: 115-717 mm (4.5″ – 28.25″)
Motor: 15/20 hp
X Axis Motor Torque: 14.84 Nm
Y Axis Motor Torque: 14.84 Nm
Z Axis Motor Torque: 27.34 Nm
Coolant Pump Motor: 3/4 hp
Number of Tools: 24
Tool Taper: CAT 40
Tool Select by Shortest Path: Bi-direcitonal
Max. Tool Weight: 8.9 kgs (17.6 lbs)
Max. Tool Diameter: 130 mm (5.12″)
Max. Tool Diameter (Adjacent Pocket): 70 mm (2.76″)
Max. Tool Length: 300 mm (11.81″)
Rapid Traverse X/Y/Z: 24 m/min (1000 ipm)
Feed Rate X/Y/Z: 15 m/min (600 ipm)
Positioning Accuracy: +/- 0.005 mm (+/- 0.0002 in.)
Repeatability: +/- 0.002 mm (+/- 0.00008 in.)
Dimensions & Weights
Length x Width x Height: 3.3 x 2.5 x 2.8 m (132 x 100 x 112 in.)
Machine Weight: 5000 kg
