2018 HWACHEON Vesta 1000+ Vertical Machining Center: Used, features a 1,000 mm X-axis, 550 mm Y-axis, 500 mm Z-axis, 15 kW power, 10,000 RPM, BT-40 taper, and 24-tool ATC. Ideal for precision CNC tasks with a robust 3-axis setup.
| X-Axis | 39.37" | 1,000 mm |
| Y-Axis | 21.65" | 549.91 mm |
| Z-Axis | 19.69" | 500.13 mm |
| Power | 15 W | 0 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | BT-40 | BT-40 |
| Table-W | 500 mm | 19.685" |
| Table-L | 1,100 mm | 43.307" |
| # Axis | 3 | 3 |

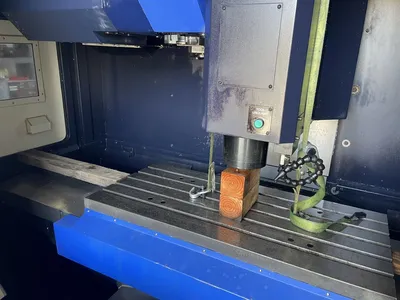

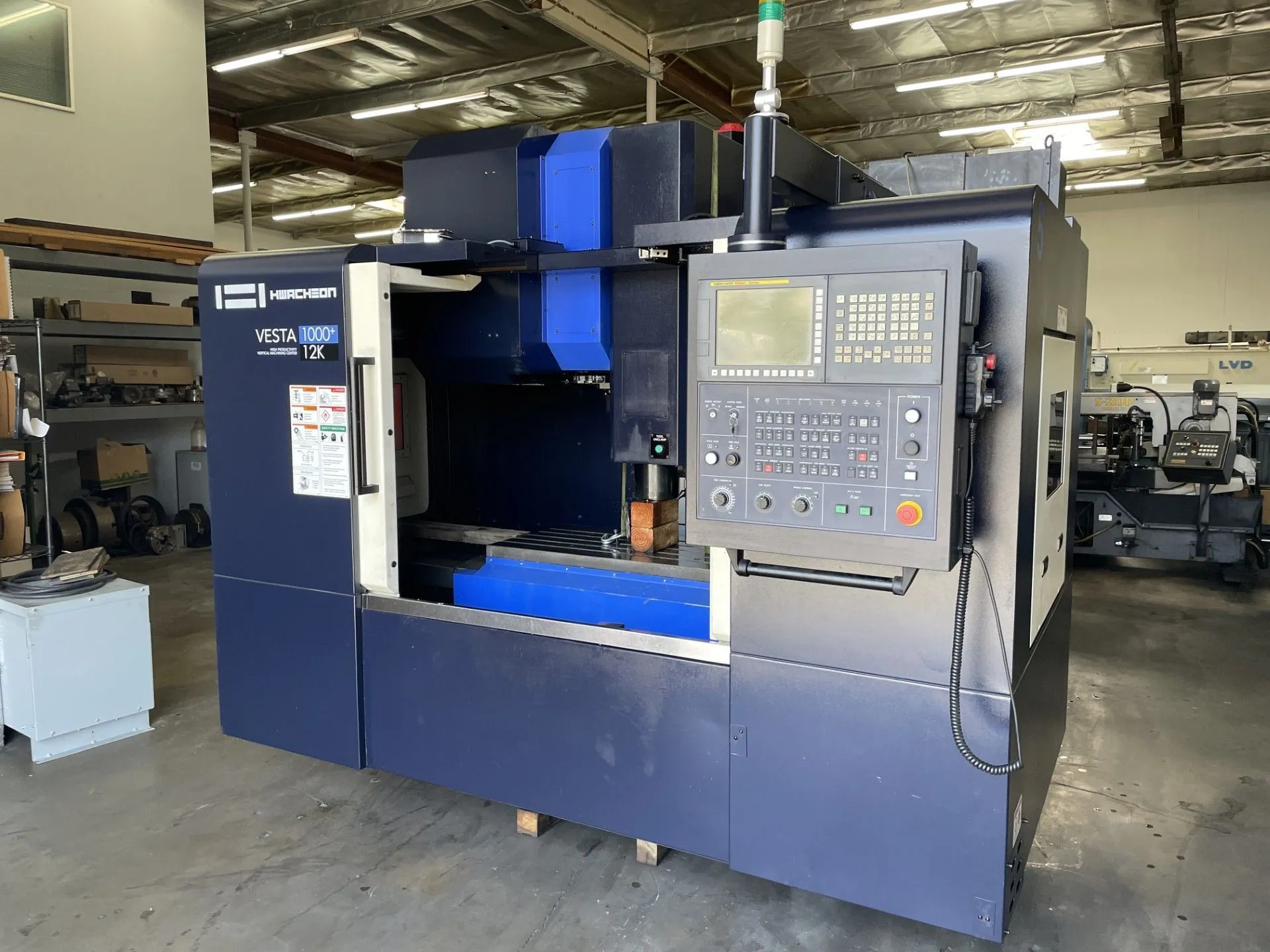

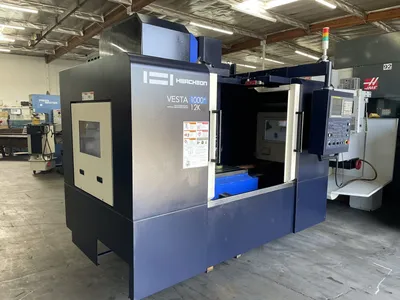

2018 HWACHEON Vesta 1000+ Vertical Machining Center #8170 #2
SPECIFICATIONS:
X-Axis Travel: 39.37"
Y-Axis Travel: 21.65"
Z-Axis Travel: 19.69"
Spindle Speed: 12,000 RPM
Spindle Taper: BT 40
Tool Magazine Capacity: 24 ATC

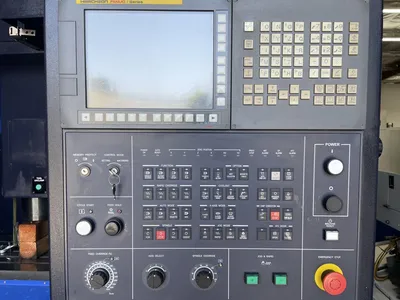

Control: Hwacheon Fanuc i Series
Chip Removal: Chip Conveyor
Coolant: High Pressure Coolant/Coolant Thru Spindle
Table Size: 43.31" x 19.69"
Machine Dimensions: 131.3" x 87" x 105.12"
Machine Weight: 14,500 Lbs.
EQUIPPED WITH:
Chip Conveyor
Coolant Thru Spindle
High Pressure Coolant
