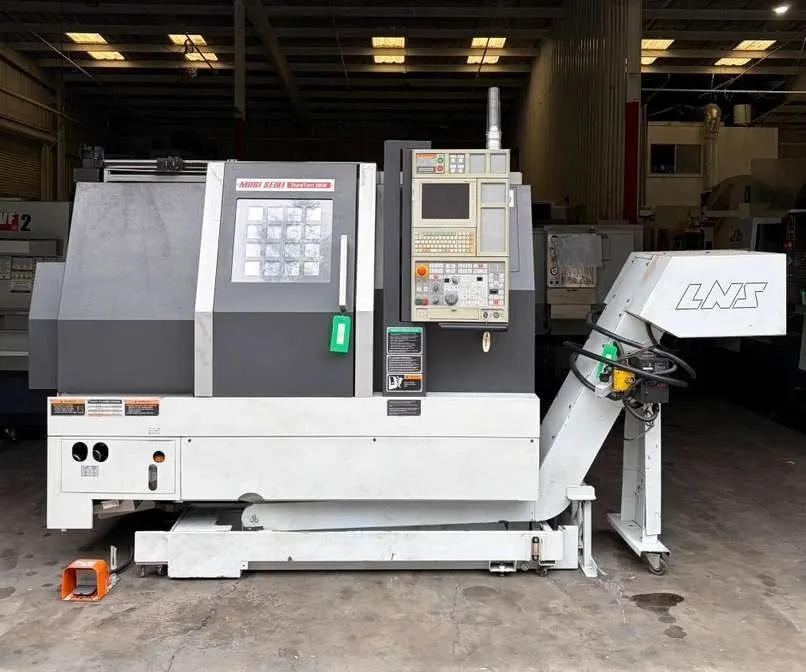

USED 2012 MORI SEIKI DURATURN 2050
Overview
Specifications
| Swing | 24" | 609.6 mm |
|---|---|---|
| Machining Length | 20.8" | 528.32 mm |
| Max. Turning Diameter | 14.57" | 370.08 mm |
| Distance Between Centers | 26" | 660.4 mm |
| X-Axis | 8.3" | 210.82 mm |
| Z-Axis | 22.4" | 568.96 mm |
| Rapid Traverse X-Axis | 945 ipm | |
| Rapid Traverse Z-Axis | 945 ipm | |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Spindle Bore | 2.56 in | |
| Spindle Nose | A2-6 | A2-6 |
| Power | 18 hp | 13.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turret Stations | 12 | 12 |
| Tailstock | Yes | Yes |
| Dimensions | 86″ x 72″ x 69″ High | 86″ x 72″ x 69″ High |
| Weight | 8,378 Lbs | 8,378 Lbs |
Equipped With
Fanuc Oi-TD Series CNC Control
Collet Chuck on Spindle (Capable 10″ Chuck)
12 Station Automatic Turret
Programmable Tailstock
Automatic Tool Presetter
PCMCIA Card Slot
Rigid Tapping
Coolant System
Chip Conveyor
Foot Switch
