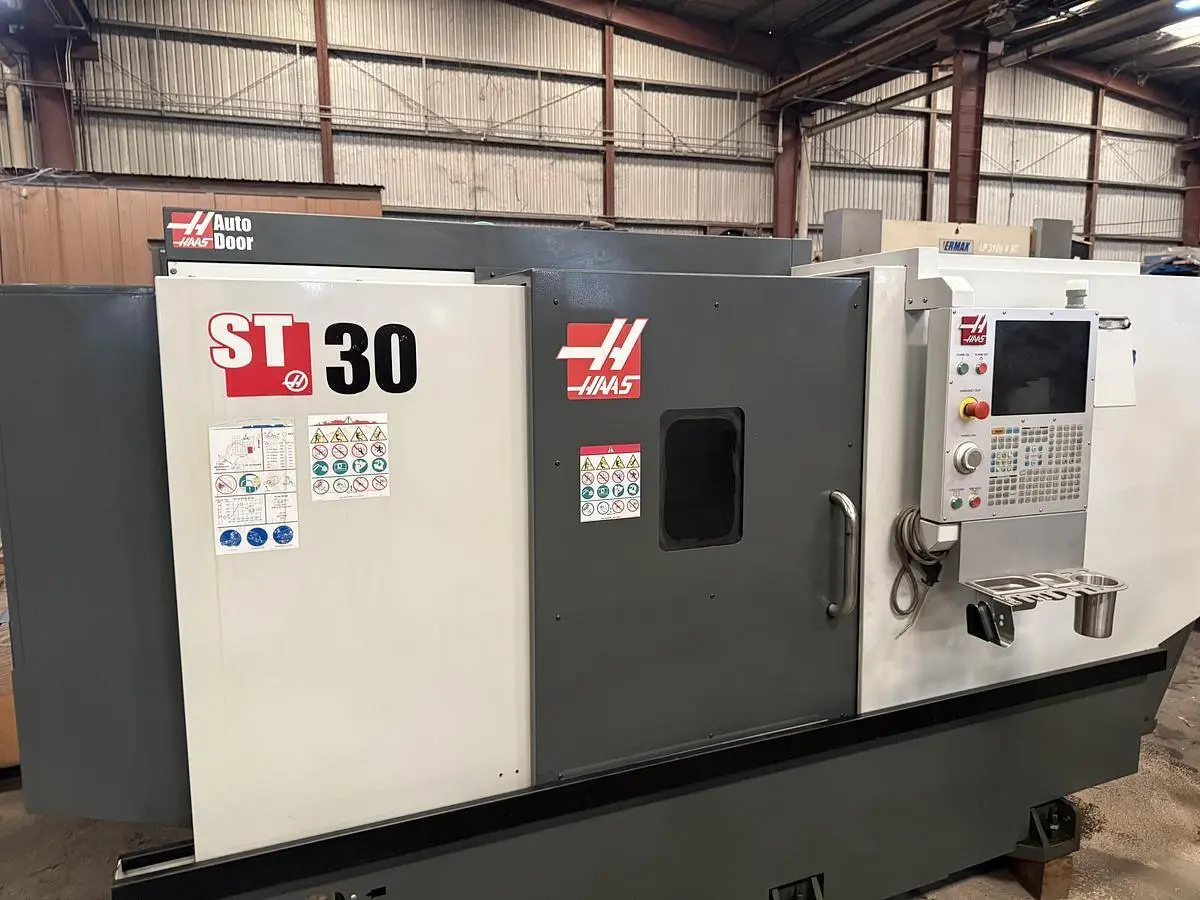

HAAS ST-30 CNC Turning Center, New in 2020.
Dual Steady Rest.
Tool Presetter.
Tailstock.
| Swing | 21" | 533.4 mm |
| Machining Length | 32.5" | 825.5 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | Yes | Yes |
| Control | CNC (HAAS CNC) | CNC (HAAS CNC) |
General Specifications:
Excellent Condition Low Hours, Clean and Loaded
3,400 RPM Belt Drive A2-6 Spindle
10" 3-Jaw Hydraulic Chuck and, Riten USA 43FMA Chuck
21" Max. Part Swing
32.5" Between Centers
3" Bar Capacity
12-Station BOT Turret
Automatic Tool Pre-setter
Samchully STA-2 Dual Self Centering Steady Rest
Programmable Hydraulic Tailstock
Automatic Door
Steady Rest Provision
Rigid Tapping
8-Spare M Functions
Visual Part Programming System
User Definable Macros
Internal Low Voltage Transformer
WIFI / Ethernet / 1 GB Expanded Memory
HAAS Connect Remote Monitoring
55 Gallon Coolant Tank and Pump
Chip Conveyor
