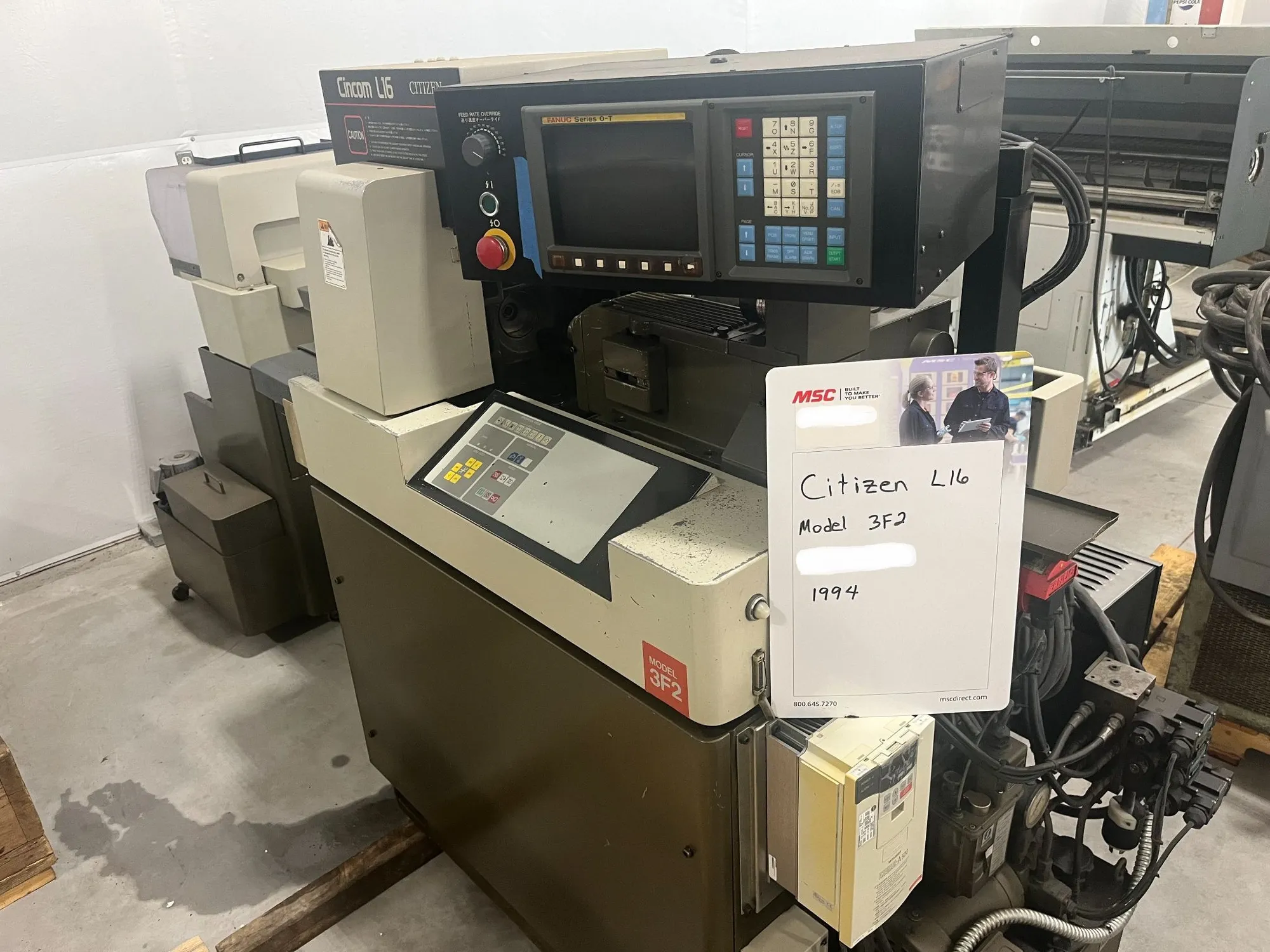

1994 Citizen L16 Model 3F2 Swiss Turning Center with Fanuc O-T Control
| Spindle Hole Dia | 16 mm | 0.6299" |
| RPM | 10,000 RPM | 10,000 RPM |
| Control | CNC (Fanuc O-T CNC Control) | CNC (Fanuc O-T CNC Control) |
| Dimensions | 86" x 48" x 67" | 86" x 48" x 67" |
| Weight | 3,300 lbs | 3,300 lbs |
Maximum Machining Diameter..........5/8"
Maximum Machining Length............8.1"
Main Spindle Speeds.................180 - 10000 RPM
Back Spindle Speeds.................200 - 5000 RPM
Rotary Tool Speeds..................200 - 5000 RPM
Back Spindle Max Chucking Diameter..0.812"
Turning Tools.......................14
Rotary (Live) Tools.................3
Front Endworking Tools..............3
Back Endworking Tools...............3
Main Spindle Drive..................2 HP
Back Spindle Drive..................2 HP
Rotary Tool Drive...................5 HP
Main Spindle Indexing...............15 deg (24 positions)
Main Unit Dimensions................86" x 48" x 67"
Main Unit Approx Weight.............3,300 lbs
Fanuc O-T CNC Control
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
