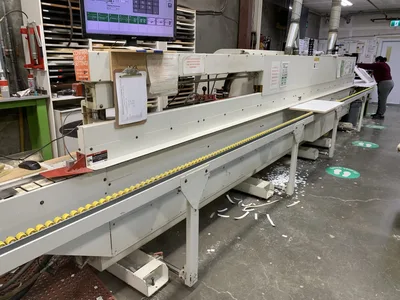

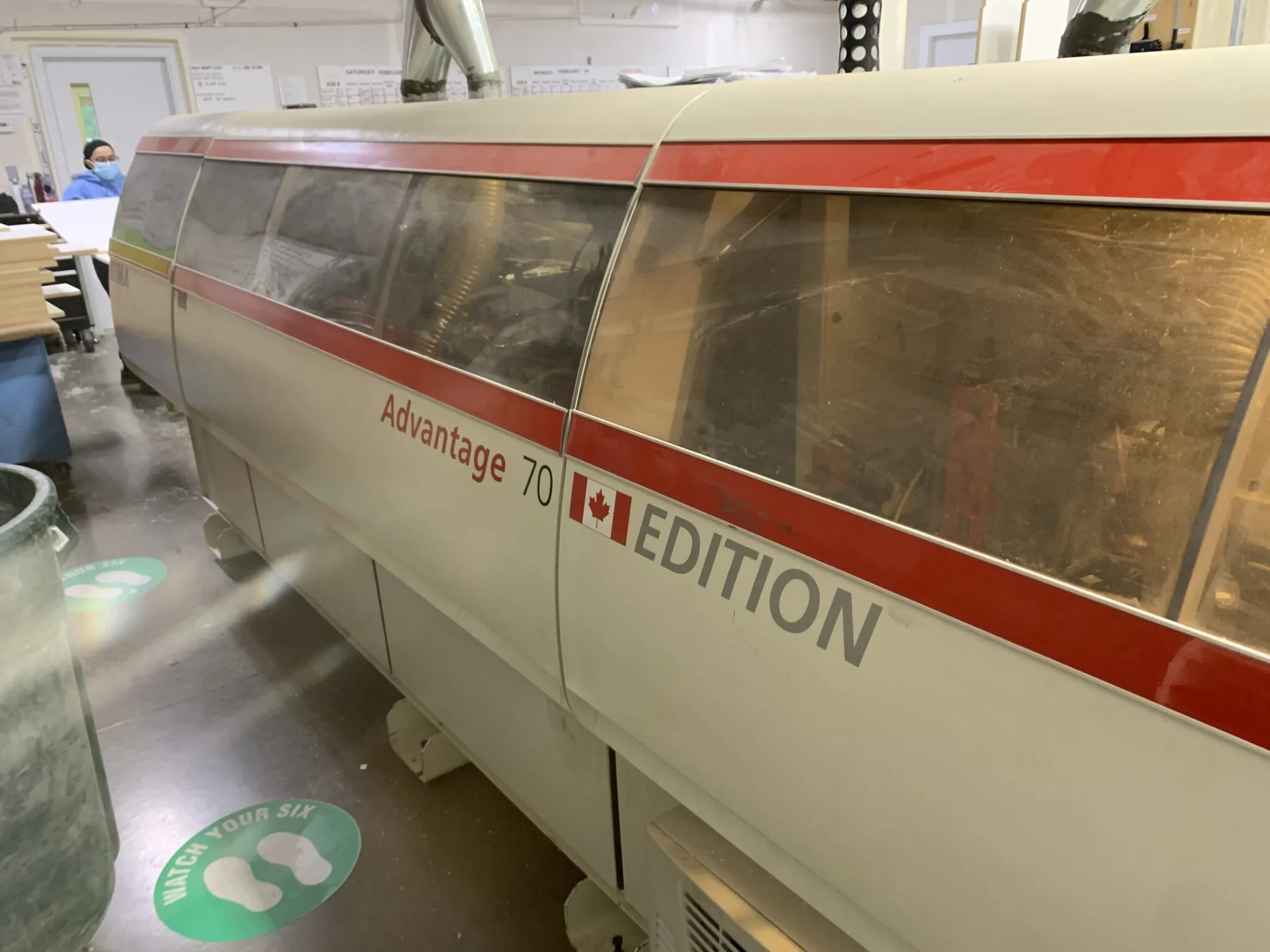

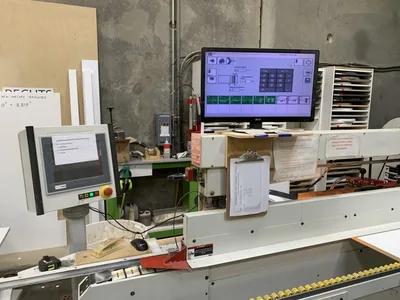

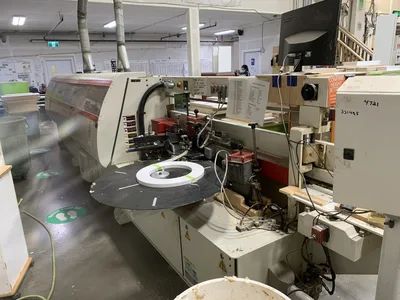

IMA Advantage 70 Edgebander

Edgebanding capacity: 0.3 – 3 mm (0.012 – 0.118″), in coil and up to 12 mm (0.47″) strips. Panel thickness min./max 8- 65 mm (0.315 – 2.362″)
Edgeband thickness max: 12 mm
Thickness of coiled edgeband max 3 mm
Feedrate max: 16m/min
Corner Rounding
Scraper unit: profile and flat
Spraying Unit: Anti-sticking solvent, top & bottom application.
Aggregates actuated by control: pneumatic
Edgeband height max: 65 mm
Workpiece length min: 150 mm
Workpiece width min: 65 mm
Glue system granulate: glue pot above feeding chain
