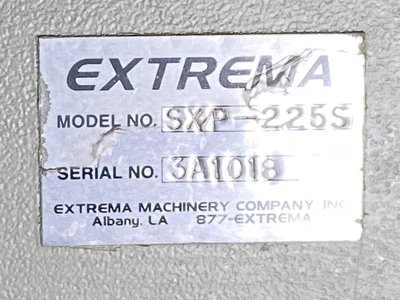

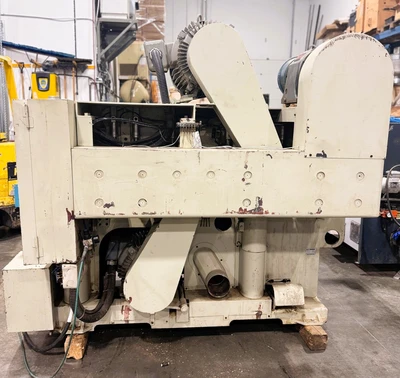

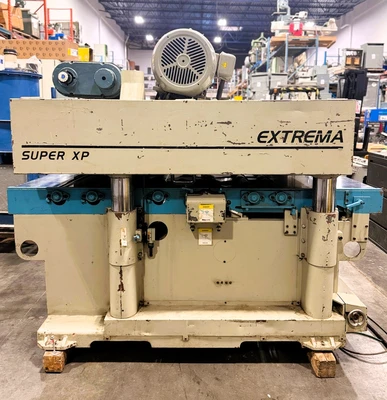

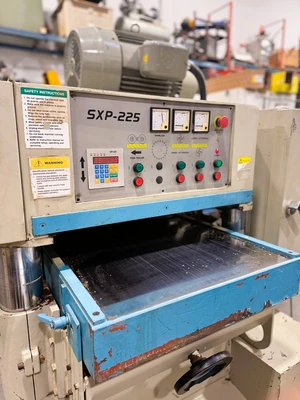

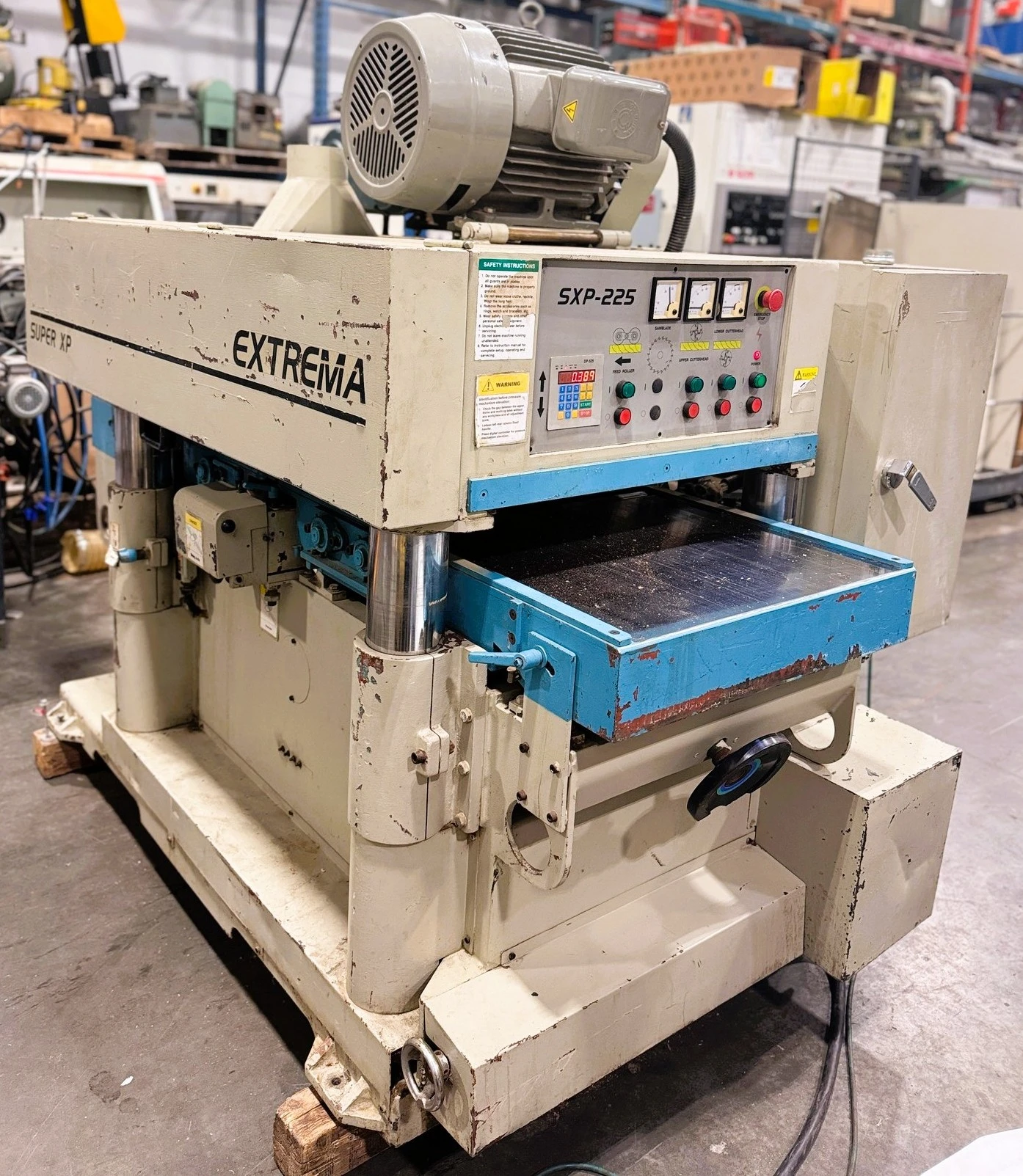

Extrema SXP-225S Top and Bottom Planer

230/480V
3 Phase
25.5″ Width
8″ Max Stock Thickness
3/8″ Min. Stock Thickness
16″ Min. Stock Length
0.5″ Max Depth of Cut (Per Head)

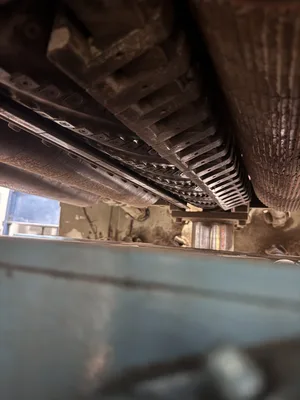

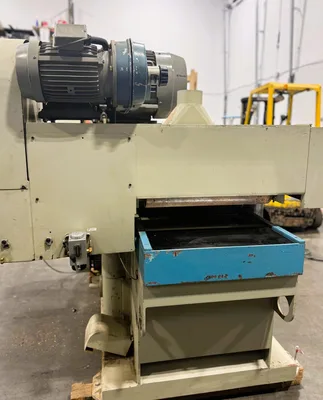

50 HP Top & 40 HP bottom belt drive motors to STEALTH HELICAL Spiral Cutterheads with (10) rows of carbide insert knives which rotate at 6,000 RPM.
Cutterheads slide out of machine for easy knife replacement.

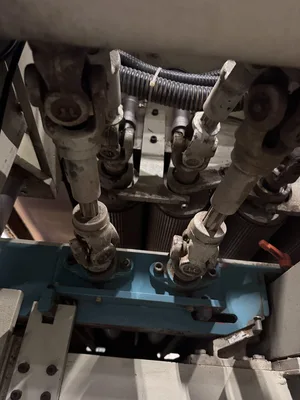

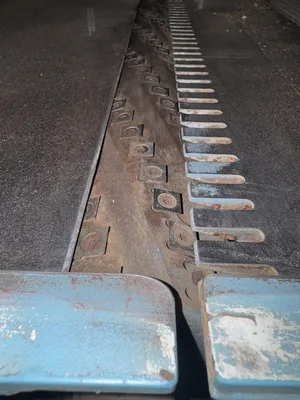

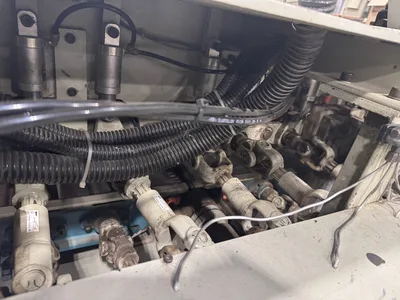

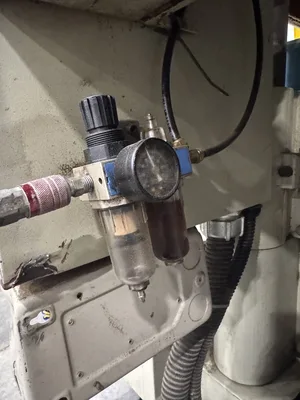

Variable feed speed 30 – 117 FPM, powered by 5 HP gear & shaft drive with pneumatically controlled feed system to upper and lower sectional feed rolls.

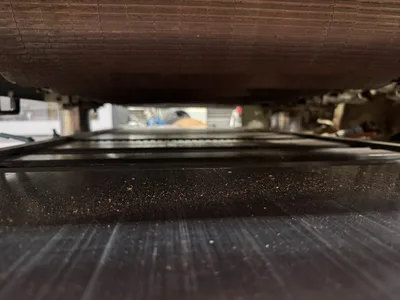

Infeed table is hard chrome plated & precision ground for maximum wear resistance.

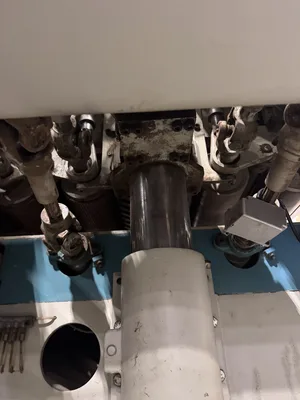

Powered raise & lower of bed table on (4) 8″ dia. Heavy Duty columns via a 1 HP motor.
